Panasonic Industrial Devices ECH-U1H561GX5

mpnECHU1H561GX5
brandname: PANASONIC
manufacturername: PANASONIC

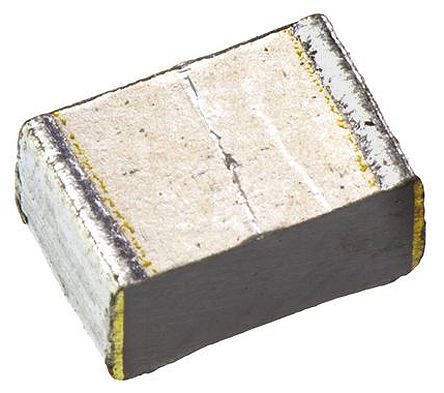

PANASONIC INDUSTRIAL DEVICES ECH-U1H561GX5 ECHU(X) Series 50 V 560 pF ?2 % Stacked Metallized PPS Film Chip Capacitor - 3000 item(s)

PANASONIC INDUSTRIAL DEVICES ECH-U1H561GX5 ECHU(X) Series 50 V 560 pF ?2 % Stacked Metallized PPS Film Chip Capacitor - 3000 item(s)

zoom

Brand: Panasonic Industrial Devices
PartNumber: ECH-U1H561GX5
Model: ECH-U1H561GX5
PackageQuantity: 1
Manufacturer: PANASONIC INDUSTRIAL DEVICES
Label: PANASONIC INDUSTRIAL DEVICES

Attributes

Key	Value
Alternate Parts	ECHU1H
Applications	General Purpose
Base Product Number	ECH-U1
Brand	Panasonic
Capacitance	560pF, 560 pF
Category	Capacitors
Depth	1.25mm
Description	CAP FILM 560PF 2% 50VDC.
Detailed Description	560 pF Film Capacitor 3.
Dielectric	PPS
Dielectric Material	Polyphenylene Sulfide (.
Digi-Key Part Number	PCF1293TR-ND - Tape & R.
Dimensions	2 x 1.25 x 0.9mm
Features	-
Height	Height
Height - Seated (Max)	0.043" (1.10mm)
Lead Free Status / RoHS.	RoHS Compliant
Lead Spacing	-
Length	2mm
Manufacturer	Panasonic Electronic Co.
Manufacturer Part Number	ECH-U1H561GX5
Manufacturer Product Nu.	ECH-U1H561GX5
Manufacturer Standard L.	21 Weeks, 9 Weeks
Maximum Operating Tempe.	+125?C
Mfr	Panasonic Electronic Co.
Minimum Operating Tempe.	-55?C
Mounting Type	Surface Mount
Operating Temperature	-55, -55?C ~ 125?C
Package	Tape & Reel (TR)
Package / Case	0805 (2012 Metric)
Package/Case	0805 (2012M)
Packaging	Reel
Product Status	Active
Ratings	-
Series	ECH-U(X), ECHU(X)
Size / Dimension	0.079" L x 0.049" W (2..
Standard Package	3,000
Stock	Stock
Terminal Type	Surface Mount
Termination	Solder Pads
Tolerance	?2%, Tolerance
Tolerance Minus	-2%
Tolerance Plus	+2%
Voltage	50V dc
Voltage Rating - AC	30V
Voltage Rating - DC	50V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	RS Delivers	106-9836	0.1032	3000	1162		Panasonic		0.1032 @ 3000
	iodParts	ECH-U1H561GX5	0.11	3000	6000		Panasonic		0.11 @ 3000
	Future Electronics	7029111	0.1284	3000	934		Panasonic		0.1284 @ 3000
	TME	ECHU1H561GX5	0.134	3000	934		PANASONIC		0.134 @ 3000
	Onlinecomponents.com	ECH-U1H561GX5	0.153	1	5600		PANASONIC		0.153 @ 1
	Newark	01X0705	0.219	3000	456		PANASONIC		0.219 @ 1
	Digi-Key	353666	0.52	1	7086		Panasonic Electronic Components		0.52 @ 1
