- mpnDNF18-250FIM-2K
- brandname: Panduit
- manufacturername: Panduit

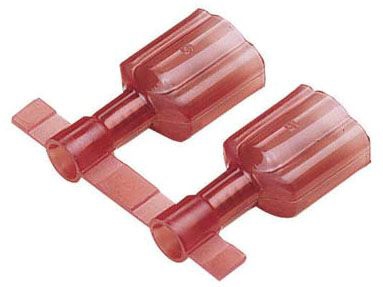

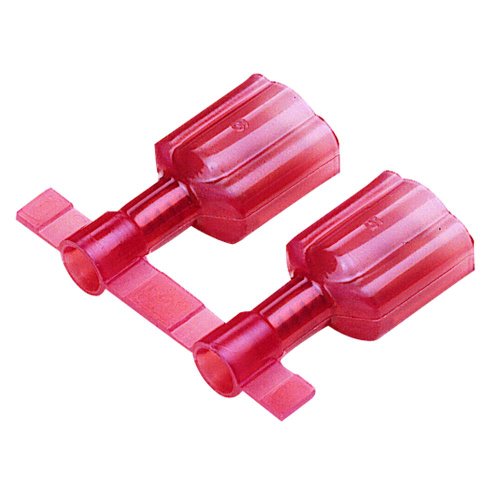

Panduit DNF18-250FIM-2K Reel Smart System Disco Male Disconnects, Nylon Fully Insulated, Funnel Entry, Standard Housing, 22 - 18, AWG Wire Range, Red, 0.250 x 0.032" Tab Size, 0.133" Max Insulation, 0.42" Width, 0.30" Height, 0.90" Length (2000 Pieces Per Reel)
- Brand: Panduit
- PartNumber: DNF18-250FIM-2K
- Model: DNF18-250FIM-2K
- Color: Red
- Size: 0.250 x 0.032
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Approvals | CSA, UL |
| Barrel Type | Funnel |
| Base Product Number | DNF18 |
| Category | Connectors, Interconnec. |
| Color | Red |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Country of Origin (subj. | Mexico |
| Family Series | Panduit Terminals, Reel. |
| Features | Serrated Termination |
| Gender | Male |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Fully Insulated |
| Insulation Diameter | 0.133" (3.38mm) |
| Insulation Material | Nylon |
| Item | Male Disconnect,Nylon,2. |
| Item Number | DNF18-250FIM-2K |
| Length - Overall | 0.900" (22.86mm) |
| Manufacturer | Panduit |
| Manufacturer Part Number | DNF18-250FIM-2K |
| Material | Brass |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Tape & Reel (TR) |
| Package Quantity | 2,000 |
| Plating Material | Nickel |
| Product Series | Reel Smart System |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Disco? |
| Tab Length | - |
| Tab Size | 0.25 x 0.032 " |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Terminal Material | Brass |
| Terminal Type | Disconnect - Male, Stan. |
| Termination | Crimp |
| UPC Code | 07498382631 |
| Volts | 600 V |
| Wire Gauge | 18-22 AWG |
| Wire Size | 22-18 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.281 " |
