- mpnPAXLHV00
- brandname: Red Lion Controls
- manufacturername: Red Lion Controls

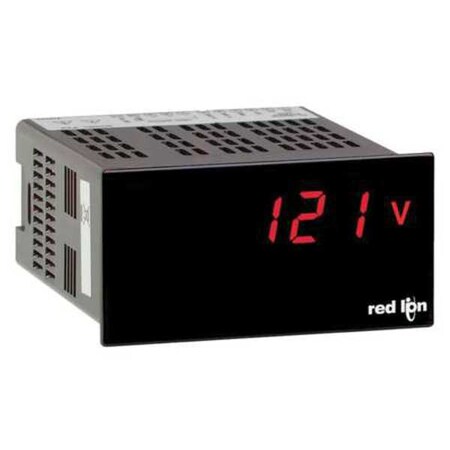

Red Lion PAXLHV PAX Lite AC Voltage Panel Meter, 3 Digit LED Display, 115/230 VAC Input Voltage, 50/60 Hz
- Brand: Red Lion
- PartNumber: PAXLHV00
- Model: PAXLHV
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Red Lion Controls Inc
- Label: Red Lion Controls Inc
Attributes
| Key | Value |
|---|
| Accuracy | At 23?C, 85% R.H.; ?(0.. |
| Approvals | UL, IEC ; NEMA 4X ; UL |
| Base Product Number | PAXLHV |
| Brand | Red Lion |
| Catalog Number | PAXLHV00 |
| Category | Industrial Automation a. |
| Connection Type | Cage-Clamp |
| Country of Origin (subj. | United States |
| Depth | 4.098 in |
| Description | VOLTMETER 0-600VAC LED . |
| Detailed Description | Voltmeter LED - Red Cha. |
| Digi-Key Part Number | RLC252-ND |
| Dimensions | 4.2 L x 3.8 W x 1.95 D . |
| Dimensions, Cutout, Inc. | 92 W x 45 H mm |
| Display | Red LED |
| Display Characters - He. | 0.560" (14.20mm) |
| Display Digit Height | 14.2 mm |
| Display Digits | 3 |
| Display Resolution | 1 VAC |
| Display Type | LED, LED - Red Characte. |
| Family Series | Red Lion Panel Meters &. |
| Features | - |
| Function | Voltmeter |
| Gross Weight | 1.115 lbs |
| Ingress Protection | IP65 - Dust Tight, Wate. |
| IP Rating | IP65 |
| Item | Digital Panel Meters |
| Item Number | PAXLHV00 |
| Item Type | Panel Meters - Process . |
| Manufacturer | Red Lion Controls, Red . |
| Manufacturer Part Number | PAXLHV00 |
| Manufacturer Product Nu. | PAXLHV00 |
| Manufacturer Standard L. | 2 Weeks |
| Max Input Signal | 600 V |
| Maximum Opening Tempera. | 60 ?C |
| Measurement Range | 0 to 600 VAC |
| Measuring Range | 0 ~ 600VAC, 0 to 600 V |
| Measuring Type | Voltage |
| Meter Type | VAC Panel |
| Mfr | Red Lion Controls |
| Minimum Operating Tempe. | 0 ?C |
| Mounting Type | Panel Mount |
| NEMA Rating | NEMA 4X, NEMA 4X / IP65 |
| Net Weight | 0.7 lbs |
| Nominal Supply Voltage | 120 VAC, 240 VAC |
| Number of Characters Pe. | 3 |
| Number of Digits | 3 |
| Operating Temperature | 0?C ~ 60?C, 0 to 60 ?C,. |
| Output Type | - |
| Package | Bulk |
| Panel Cut Out | 3.62?1.77 " |
| Panel Cutout Dimensions | Rectangular - 92.00mm x. |
| Power Supply | 115/230 VAC |
| Primary Type | Electronic |
| Product Header | PAX Lite VAC Meter |
| Product Series | PAX |
| Product Status | Active |
| Response Time | 1 Sec. nominal |
| RoHS | Yes |
| Series | PAX?LITE PAXLHV, PAX Li. |
| Standards | cULus Listed, CE Marked. |
| Supply Voltage | 115/230 VAC |
| Temperature Range | 0 to 60 C |
| Termination | Terminal Block |
| Termination Style | Screw Terminal |
| Type | Electronic, Voltmeter |
| Type (Engineering Units) | AC Volts |
| Voltage - Supply | 115VAC, 230VAC |
| Weight | 0.65 lbs, 0.65, 0.65 lb. |
| Weight UOM | Pounds |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H2258498 | 165.67 | 1 | 14 | | Red Lion Controls | | 165.67 @ 1 |
 | Carlton Bates Company | 78073698764 | 198.25 | 1 | In Stock | | RED LION CONTROLS | | 198.25 @ 1 |
 | Radwell | PAXLHV00 | 220.0 | 1 | 2 | | RED LION CONTROLS | | 220.0 @ 1 |
| AmazonTP | B00MEILYJM | 221.29 | 1 | In Stock | 5 | RED LION | | 221.29 @ 1 |
 | sustainablesupply.com | C3037549 | 233.41 | 1 | In Stock | | Red Lion | 0.85 | 233.41 @ 1 |
 | Newark | 84K7498 | 239.0 | 1 | In Stock | | RED LION CONTROLS | | 239.0 @ 1 |
 | Walker Industrial | PAXLHV00 | 239.0 | 1 | In Stock | 17 | Red Lion Controls | | 239.0 @ 1 |
 | MRO Supply | 286888 | 239.0 | 1 | In Stock | | Red Lion Controls | | 239.0 @ 1 |
 | Digi-Key | 643039 | 242.6 | 1 | 2 | | Red Lion Controls | 0.65 | 242.6 @ 1 |
 | crescentelectric.com | 41184 | 252.6 | 1 | In Stock | | Red Lion | | 252.6 @ 1 |
 | Galco | PAXLHV00-RDL | 262.13 | 1 | In Stock | | Red Lion | 1.115 | 262.13 @ 1 |
 | Zoro | G703927663 | 269.88 | 1 | In Stock | 25 | Red Lion Controls | 0.85 | 269.88 @ 1 |
| us.rs-online.com | 70031648 | 272.28 | 1 | 4 | | Red Lion Controls | 0.65 | 272.28 @ 1 |
| RS Delivers | 905-5677 | 286.176 | 1 | 2 | | Red Lion | | 286.176 @ 1 |
