Schneider Electric LX1FJ220

B00CONO78W

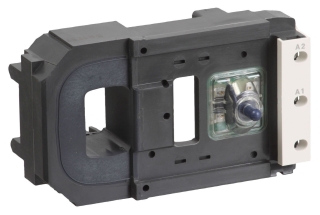

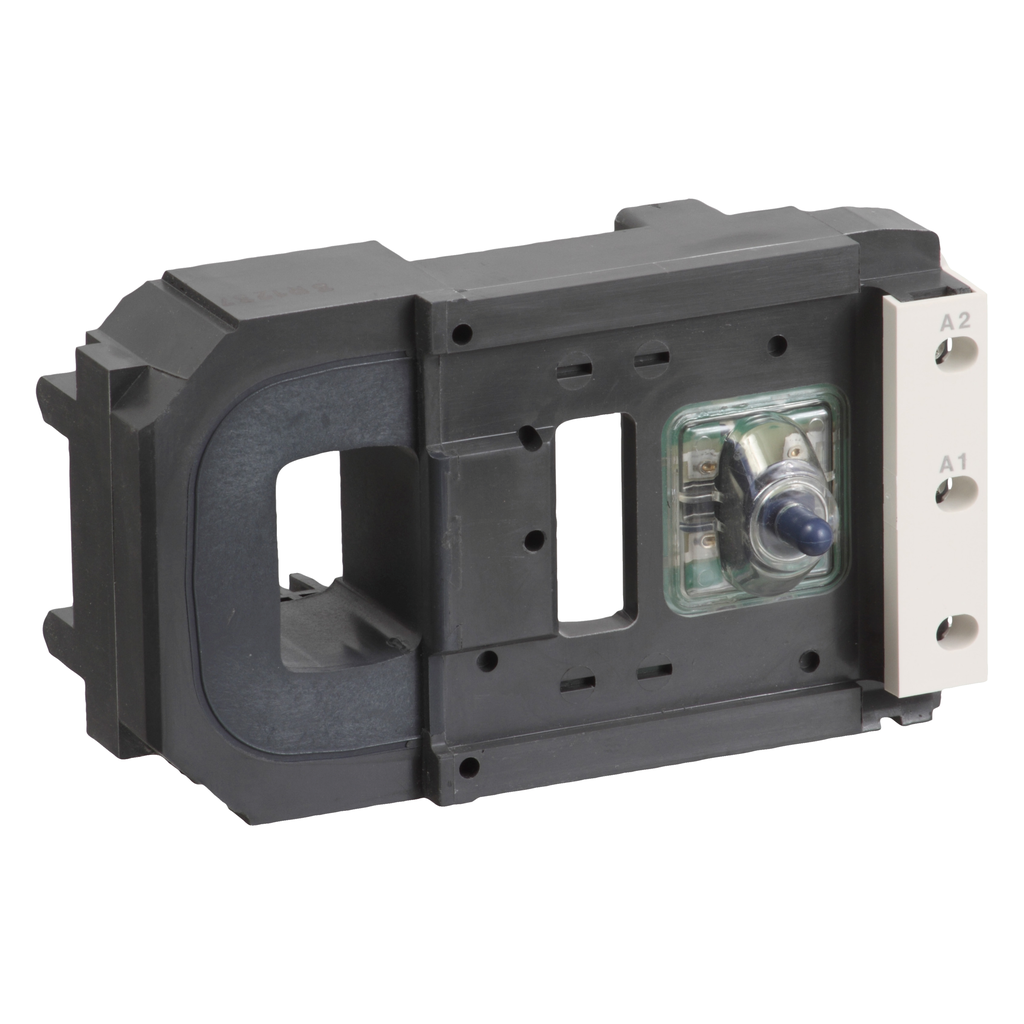

SCHNEIDER ELECTRIC Contactor Coil 220-Vac Iec LX1FJ220 Fuseholder 600V 30Amp 1Pole 8.5X13.5Mm

SCHNEIDER ELECTRIC Contactor Coil 220-Vac Iec LX1FJ220 Fuseholder 600V 30Amp 1Pole 8.5X13.5Mmzoom

Attributes

Key Value
[Uc] Control Circuit Vo.220...230 V AC 40...400.
Ambient Air Temperature.-5-55 ?C
ApplicationTeSys (TeSys F) LC1F co.
Average Resistance37 Ohm inrush 20 ?C || .
BrandSchneider Electric
Catalog NumberLX1FJ220
China Rohs RegulationX
Circularity ProfileENVEOLI111214EN_V1
Coil Power Rating15-15 VA 40...400 HZ 0..
Coil Technologywithout built-in suppre.
Coil Voltage220...230 V AC 40...400.
Control Circuit TypeAC 40...400 Hz
Control Circuit Voltage.operational 0.85...1.1 .
Country of OriginCzech Republic
Device Short NameLX1FJ
Environmental DisclosureENVPEP111201EN
Eu Rohs DirectivePro-active compliance (.
Heat Dissipation14-14 W 40...400 Hz
Hold-In Power Consumpti.15-15 VA 40...400 Hz 0..
Inductance Of Closed Ci.5.1 H
Inrush Power In Va1075-1075 VA 40...400 H.
Item Typecontactor coil
Made in USANo
ManufacturerSchneider Electric
Maximum Operating Rate2400 cyc/h 55 ?C
Mechanical Durability10 Mcycles
Mercury FreeYes
Net Weight1 kg
Operating Cycles2400 CYC/H 55 A Degrees.
Operating Temperature-5-55 A Degrees C
Operating Time100...170 ms opening ||.
Product CompatibilityLC1F400
Product Or Component Ty.contactor coil
RangeTeSys
Range CompatibilityTeSys F LC1F contactor
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Special Featureswithout built-in suppre.
Sub BrandTESYS,TESYS F
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
UPC785901082026
Warranty18 months
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comLX1FJ220295.01In Stock10SQUARE D295.0 @ 1
Newark16B968322.221In StockSCHNEIDER ELECTRIC322.22 @ 1
thumbzoommayerelectric.comSQDLX1FJ220386.141In StockSCHNEIDER ELECTRIC2.2386.14 @ 1
thumbzoomcrescentelectric.com838984471.081In StockSchneider Electric471.08 @ 1
RS Delivers609-8211477.6611Schneider Electric477.66 @ 1
thumbzoomkempstoncontrols.co.ukLX1FJ220523.73546551In StockSchneider523.7354655 @ 1
