Schneider Electric HDA260152

B00CONIHXS

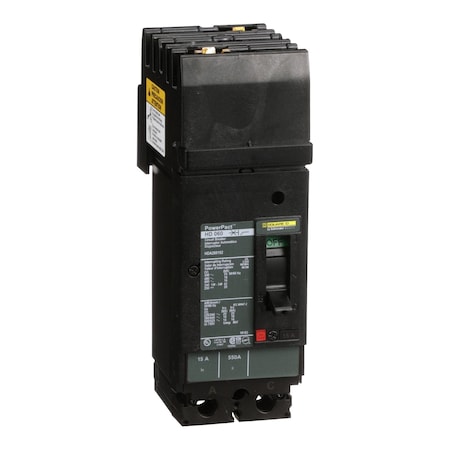

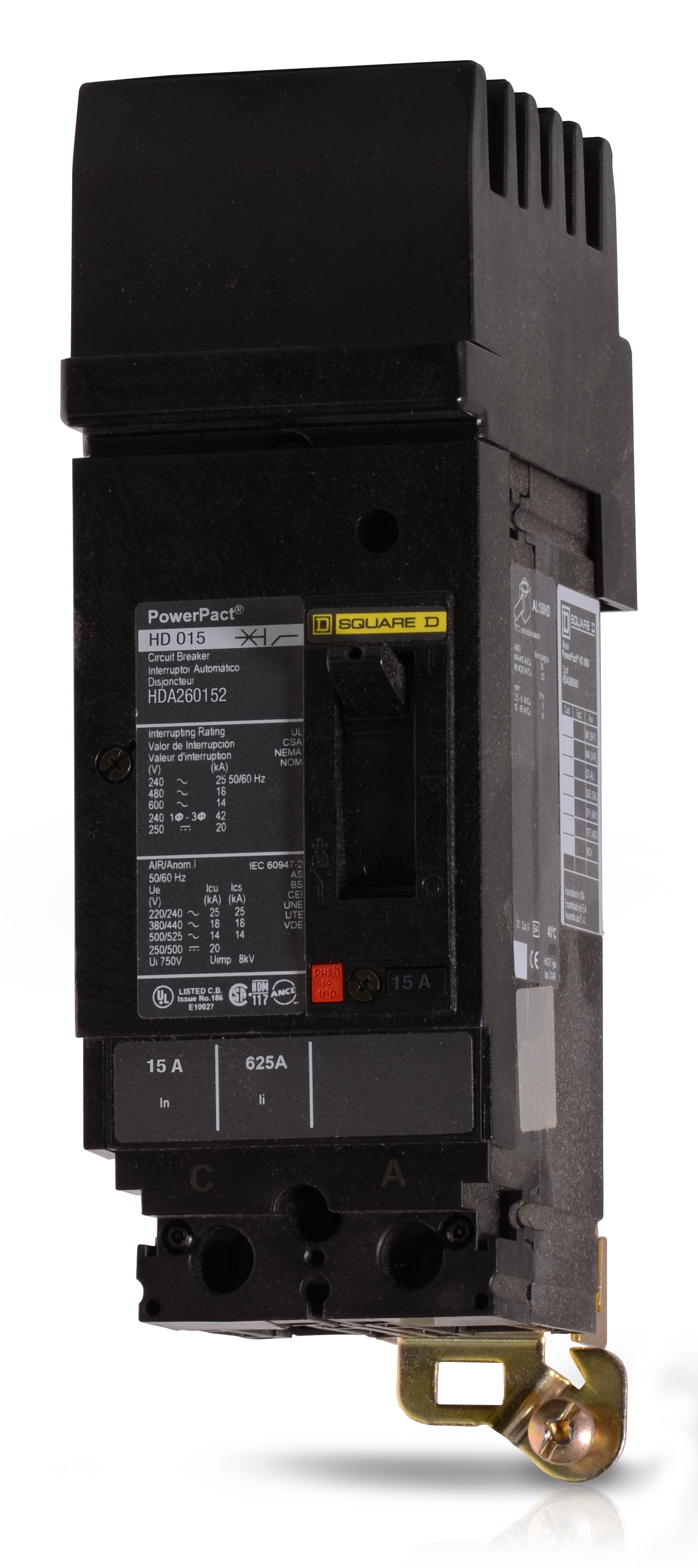

SCHNEIDER ELECTRIC 600-VOLT 15-AMP HDA260152 Molded CASE Circuit Breaker 600V 15A

SCHNEIDER ELECTRIC 600-VOLT 15-AMP HDA260152 Molded CASE Circuit Breaker 600V 15Azoom

Attributes

Key Value
AC Voltage Rating690V AC
Actuatortoggle
Amperage15
Amperage Rating15
Amps15 A
ApplicationDistribution;HACR rated.
ApprovalUL
BrandSquare D, Square D by S.
Catalog NumberHDA260152
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
ConnectionI-Line connection line;.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Country of OriginUnited States
Depth86 mm
DisplayHDA260152 Circuit break.
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH
Frequency Rating50/60 Hz
FunctionsLI - Long-Time and Inst.
Gtin785901412939
Height163 mm, 9.73
High Amp Trip Setting750 A
Interrupt Rating25 kA at 220/240V AC, 1.
Interrupting Rating25kAIC at 240VAC, 18kAI.
ItemCircuit breaker,PowerPa.
Item TypeCircuit breaker
Length4.8 IN
Made in USAYes
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
MpnHDA260152
Number of Poles2
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAC
Poles2
ProtectionThermal Magnetic
SeriesHDA
Special FeaturesModbus;Ethernet;1
StandardUL LISTED-CE-CSA-IEC
StandardsUL, CSA, NEMA, NOM, CE
Sub BrandPowerPact H
Terminal ConnectionI-Line, Lug
Trip Range15 A,350 A,750 A
Trip TypeThermal-magnetic, Therm.
UPC785901412939
Upc785901412939
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty DescriptionContractual Warranty:18.
Width104 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHDA260152515.01In Stock10SQUARE D515.0 @ 1
thumbzoomZoroG3978892584.661In Stock145Square D2.2584.66 @ 1
Newark19K9950649.031In StockSQUARE D BY SCHNEIDER ELECTRIC649.03 @ 1
thumbzoomsuperbreakers.comHDA2601521030.11110Square D1030.11 @ 1
thumbzoomcrescentelectric.com6729761749.711In StockSquare D by Schneider Electric1749.71 @ 1
