Schneider Electric HDA260154

B00CONIIV4

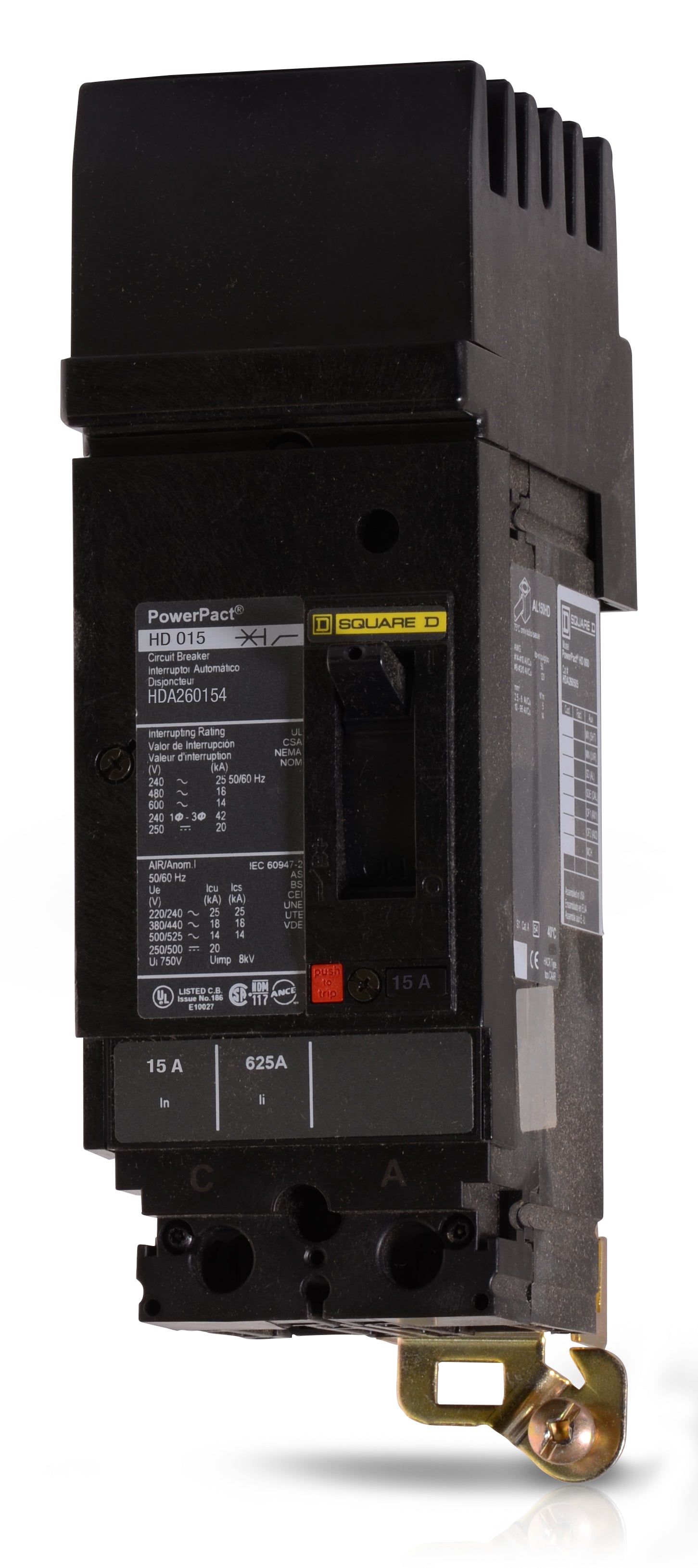

SCHNEIDER ELECTRIC 600-VOLT 15-AMP HDA260154 Molded CASE Circuit Breaker 600V 15A

SCHNEIDER ELECTRIC 600-VOLT 15-AMP HDA260154 Molded CASE Circuit Breaker 600V 15Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage15
Amperage Rating15
ApplicationPROVIDES OVERLOAD AND S.
ApprovalUL
Awg GaugeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA260154
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Applica.HACR rated
Circularity ProfileENVEOLI1311006EN
ColorBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States
Depth86 mm
Device Applicationdistribution
DisplayHDA260154 Circuit break.
Electrical ConnectionI-Line connection, line.
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
FrameD
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901413059
Height163 mm, 6.42
Interrupting Rating25kAIC at 240VAC, 18kAI.
Ip Degree Of Protectionfront cover IP40 IEC 60.
Item Typecircuit breaker
Length4.8 IN
Line Rated Current15-15 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current350 A
Magnetic Tripping Curre.750-750 A
ManufacturerSchneider Electric
Mercury FreeYes
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
MpnHDA260154
Net Weight2.2 kg
Network Frequency50/60 Hz
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionBC
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rohs Exemption Informat.Yes
SeriesHDA
Special FeaturesI-LINE
StandardCE-CSA-IEC-UL LISTED
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range15 A,350 A,750 A
Trip Typethermal-magnetic
Trip Unit Technologythermal-magnetic
Upc785901413059
UPC785901413059
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comHDA260154355.991In StockSchneider Electric355.99 @ 1
thumbzoomgordonelectricsupply.comHDA260154515.01In Stock10SQUARE D515.0 @ 1
thumbzoommayerelectric.comSQDHDA260154532.251In StockSQUARE D4.84532.25 @ 1
thumbzoomRadwellHDA260154560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
Newark19K9951909.711In StockSQUARE D BY SCHNEIDER ELECTRIC909.71 @ 1
thumbzoomsuperbreakers.comHDA260154957.2814Square D957.28 @ 1
Graybar251479161240.93761In StockSquare D (Schneider Electric)1240.9376 @ 1
thumbzoomcrescentelectric.com3994681749.711In StockSquare D by Schneider Electric1749.71 @ 1
