Schneider Electric HDA260305

B00CONIW9M

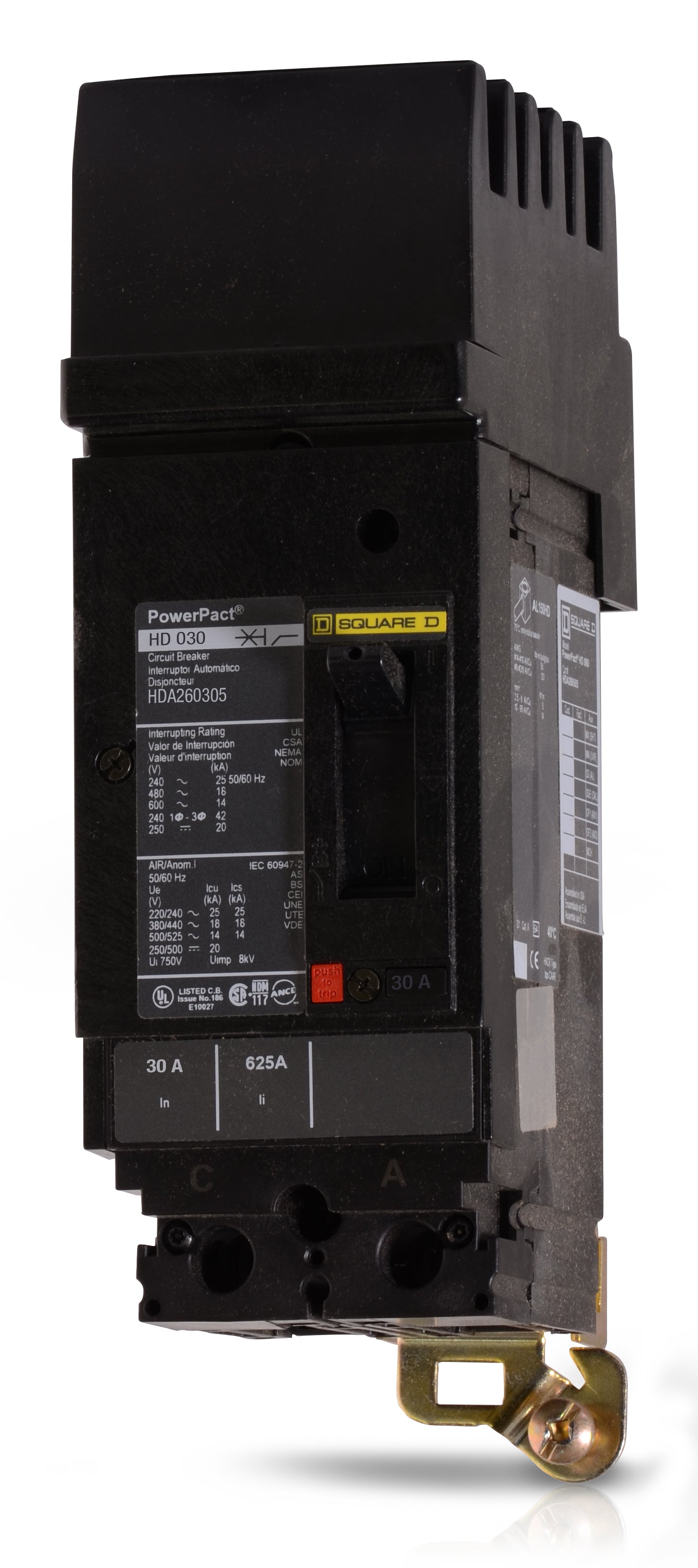

SCHNEIDER ELECTRIC 600-VOLT 30-AMP HDA260305 Molded CASE Circuit Breaker 600V 30A

SCHNEIDER ELECTRIC 600-VOLT 30-AMP HDA260305 Molded CASE Circuit Breaker 600V 30Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Actuator Typetoggle
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage30
Amps30 A
ApplicationHACR rated Applications.
Awg GaugeAWG 14...AWG 3/0 alumin.
BrandSquare D
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Communication InterfaceModbus || Ethernet
Connection TypeI-Line Style Plug-In
Continuous Current Rati.80 %
Control Typetoggle
Depth86 mm
Device Applicationdistribution
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free; PVC Free
Frame SizeH
Frame TypeHDA
FunctionsLong Time and Instantan.
Gtin785901416555
Height163 mm
High Amp Trip Setting750 A
Interrupt Rating25 kA at 220/240V AC, 1.
Interrupting Rating25kA@240VAC, 18kA@480VA.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Line Rated Current30-30 A
Local Signallingswitched off (OFF) 1 tr.
Magnetic Hold Current350 A
Magnetic Tripping Curre.750-750 A
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
MpnHDA260305
Net Weight2.2 kg
Network Frequency50/60 Hz
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Phase1
Phase ConnectionCA
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHAD
StandardsUL || CSA || NEMA || NO.
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug, Line and L.
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip TypeThermal Magnetic
Trip Unit Technologythermal-magnetic
Utilisation Categorycategory A
Voltage600VAC, 250VDC
Warranty18 months
Width104 mm
Wire GaugeAWG 14 to AWG 3/0 Alumi.
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com2393257479.271In StockSquare D479.27 @ 1
thumbzoomgordonelectricsupply.comHDA260305515.01In Stock10SQUARE D515.0 @ 1
thumbzoommayerelectric.comSQDHDA260305532.251In StockSQUARE D4.84532.25 @ 1
thumbzoomRadwellHDA260305560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
thumbzoomZoroG3978901584.661In Stock10Square D10.0584.66 @ 1
Newark19K9963649.031In StockSQUARE D BY SCHNEIDER ELECTRIC649.03 @ 1
thumbzoomsuperbreakers.comHDA260305957.2811Square D957.28 @ 1
