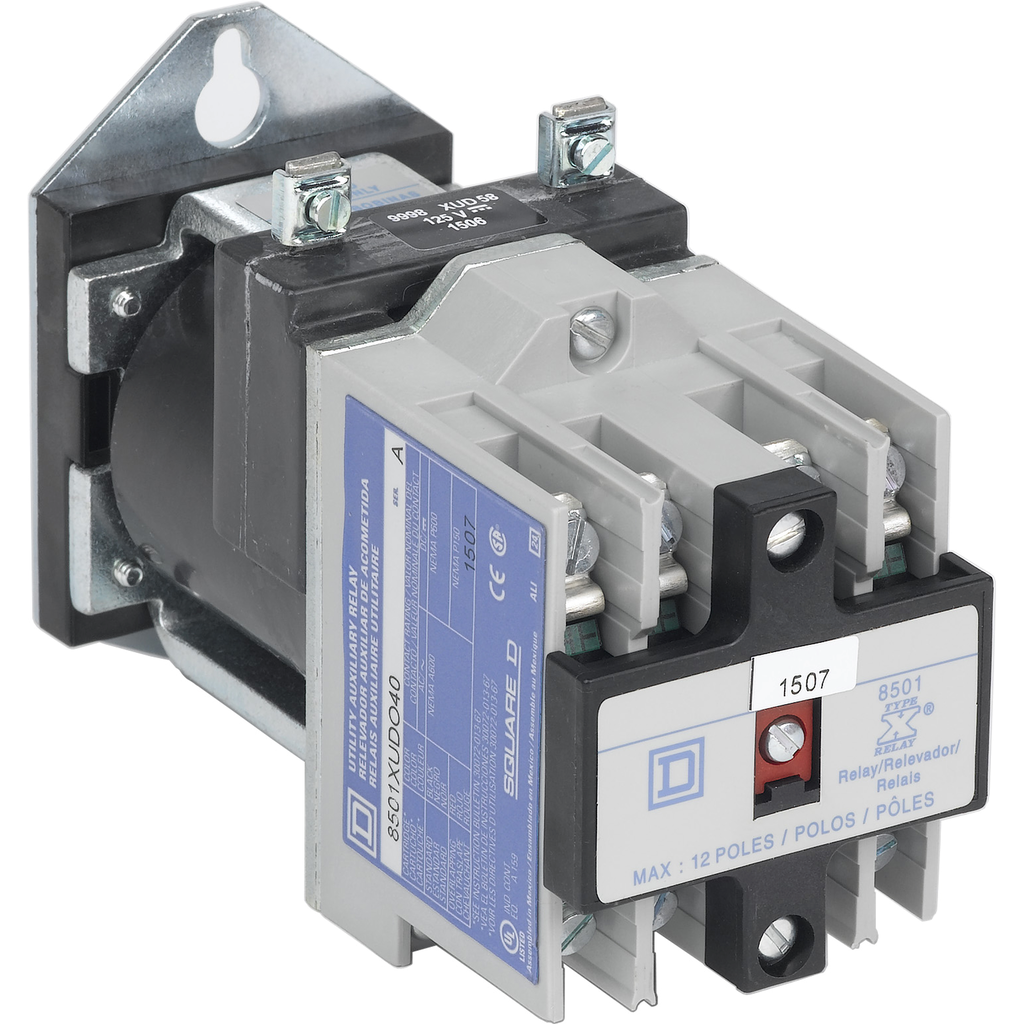

Square D/Telemecanique 8501XUDO40V63

B011P0C786

Relay 250Vdc 5Amp Nema +Options

Relay 250Vdc 5Amp Nema +Optionszoom

Attributes

Key Value
[Uc] Control Circuit Vo.125 V DC
Ambient Air Temperature.-40-160 ?F, -40-160?F
ApprovalsCSA, UL
ASINB01H7X4422
Batteries Required?No
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number8501XUDO40V63
China Rohs RegulationX
Circularity ProfileENVEOLI1310013EN
Coil Voltage125 VDC, 125 V DC
Coil Voltage Rating110-127 Volt
Coil Volts250VDC
ComponentRelay Module-Electromag.
ConditionNew
Connectionscrew clamp terminals
Contact Configuration4 NO 4 standard contact.
Contact Rating10 A AC-5 A DC,250 V DC
Contact Voltage Rating300
Contacts Type And Compo.4 NO 4 standard contact.
Country of OriginMexico, 00 - Unknown
Depth5.17 in, 5.17 in.
ECCNEAR99
Electrical Connectionscrew clamp terminals
Environmental DisclosureENVPEP1310013EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Control Relays
Gross Weight0 lbs
GTIN00785901743316
Height3.56 in, 3.56 in.
Included Components8501XUDO40V63
ItemRelay 250Vdc 5Amp Nema .
Item model number8501XUDO40V63
Item Number8501XUDO40V63
Item Package Quantity1
Item TypeUtility;Relay
Line Rated Current10 A AC || 5 A DC
Low Power ConsumptionNo
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number8501XUDO40V63
Maximum Switching Volta.250 V DC
Mercury FreeYes
MountingPanel Mount, Panel
Mounting SupportPanel
Net Weight0 lbs
No. of Poles4
Nominal Coil Voltage120 VAC
Number of Poles4
Operating Temperature-40?160? Degrees F (-40.
Operating Time37 ms - pick-up || 21 m.
Package Quantity1
Part Number8501XUDO40V63
Poles Description4P
Product CertificationsUL Listed || CE || CSA
Product Or Component Ty.relay
Range Of Product8501X
Reach RegulationReference contains Subs.
Relay ThrowsSingle Throw 4 Normally.
Relay Typeutility
Rohs Exemption Informat.Yes
Special Featuresscrew clamp terminals
StandardUL Listed;CE;CSA
Sustainable Offer StatusGreen Premium product
TerminationScrew
Thermal Current (A)10 A
Time Cycle37 ms - pick-up || 21 m.
Typeutility
UNSPSC39122331
UNSPSC Code39120000
UPC785901743316
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width2.23 mm, 2.23 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomblackhawksupply.com8501XUDO40V63295.991In StockSquare D295.99 @ 1
thumbzoomindustrialrefrigerationparts.com8501XUDO40V63314.931In StockSquare D2.0314.93 @ 1
thumbzoomGalco8501XUDO40V63-SQD336.831In StockSquare D336.83 @ 1
thumbzoomZoroG0847141394.991In StockSquare D3.32394.99 @ 1
us.rs-online.com71780915420.8415Square D420.84 @ 1
Graybar88245025434.75041In StockSquare D (Schneider Electric)434.7504 @ 1
thumbzoommayerelectric.comSQD8501XUDO40V63452.641In StockSQUARE D452.64 @ 1
thumbzoomAmazonB01H7X4422460.731In StockSchneider Electric460.73 @ 1
rspsupply.comSCHNEIDER 8501XUDO40V63478.41In StockSchneider Electric478.4 @ 1
thumbzoomcrescentelectric.com241759488.161In StockSquare D488.16 @ 1
thumbzoomNewark16B6734508.061In StockSQUARE D BY SCHNEIDER ELECTRIC508.06 @ 1
