TE Connectivity / AMP 42K6545

B00DEXPC6M

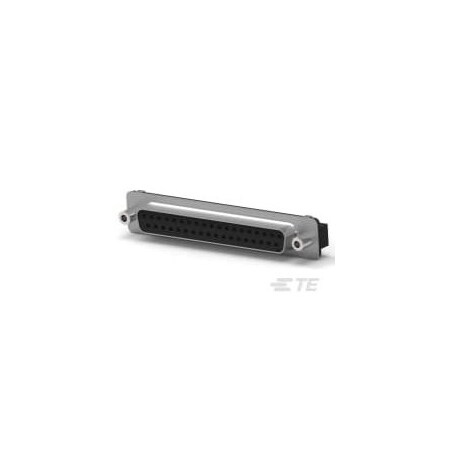

TE CONNECTIVITY/AMP 1-5747301-4 D SUB CONNECTOR, STANDARD, 37POS, RCPT

TE CONNECTIVITY/AMP 1-5747301-4 D SUB CONNECTOR, STANDARD, 37POS, RCPTzoom

Attributes

Key Value
Backset Spacing-
Base Product Number5747301
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.109?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleD-Sub, Receptacle
Connector SystemBoard-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact Current Rating .6
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Form-
Contact MaterialPhosphor Bronze
Contact ShapeRound
Contact TypeSignal
Contact Underplating Ma.Nickel
Country of Origin (subj.Mexico
Current Rating (Amps)6A
DescriptionCONN D-SUB RCPT 37POS V.
Detailed Description37 Position D-Sub Recep.
Dielectric MaterialPolyester
Digi-Key Part NumberA121605-ND
Features-
Flange FeatureMating Side, Female Scr.
Ingress Protection-
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-5747301-4
Manufacturer Standard L.4 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Female Screwlocks, Fixed
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions37
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTube
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeMounting Hole
PCB Mounting StyleThrough Hole
Product StatusActive
ProfileStandard
Row-to-Row Spacing.112 in, 2.84 mm
SealableNo
SeriesAMPLIMITE HD-20
Shell Material, FinishSteel, Tin Plated
Shell Size4
Shell Size, Connector L.4 (DC, C)
Shell TypeFront Metal Shell
TerminationSolder
Voltage Rating125V
Wire Gauge-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Power and Signal Group1-5747301-411.0945441In StockTE Connectivity11.0945 @ 441
Onlinecomponents.com1-5747301-412.0711343TE Connectivity / AMP Brand12.07 @ 1
thumbzoomZoroG50103705214.0441In StockTe Connectivity14.0 @ 441
TE Connectivity1-5747301-415.821581493TE Connectivity (TE)15.82158 @ 1
thumbzoomNewark42K654516.41441In StockAMP - TE CONNECTIVITY16.41 @ 441
AmazonTPB00DEXPC6M18.321In Stock2TE CONNECTIVITY / AMP18.32 @ 1
RS Delivers192-006619.73761In StockTE Connectivity19.7376 @ 1
thumbzoomDigi-Key213548322.5812944TE Connectivity AMP Connectors22.58 @ 1
