TE Raychem V23162A720B104

mpn3-1393818-3
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

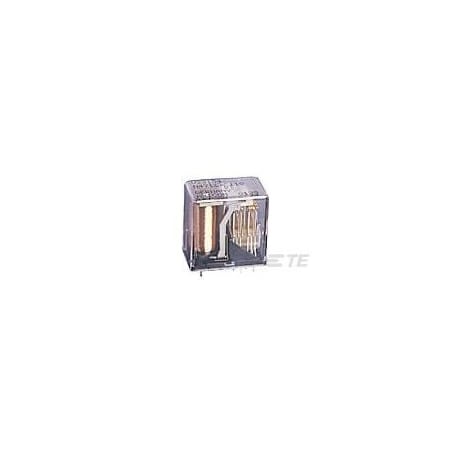

TE Raychem Connector

TE Raychem Connector

zoom

Brand: TE Raychem
PartNumber: V23162A720B104
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Alternate Mfr Part Numb.	3-1393818-3
Base Product Number	1393818
Body Depth - Relay	0.945 in
Body Height - Relay	1.181 in
Body Width - Relay	0.748 in
Category	Relays
Coil Current	36.3 mA
Coil Insulation	-
Coil Resistance	550 ?, 550 Ohms
Coil Type	Non Latching, Monostabl.
Coil Voltage	20VDC
Contact Form	DPDT (2 Form C)
Contact Form - Relay	4 Form C (CO)
Contact Limiting Breaki.	2A
Contact Limiting Contin.	2A
Contact Limiting Making.	2A
Contact Limiting Short-.	2A
Contact Material	Ag, Silver (Ag), Gold (.
Contact Rating	2A
Contact Rating (Current)	2 A
Contact Voltage Rating	125 VAC [ 150 VDC ]
Description	RELAY GEN PURPOSE DPDT .
Detailed Description	General Purpose Relay D.
Dielectric Voltage	1000 Vrms Coil and Cont.
Digi-Key Part Number	3-1393818-3-ND
Electrical Connection -.	Solder Terminals
Features	Standard Type, -
Item - Relay	Cradle N Relay
Manufacturer	TE Connectivity Potter .
Manufacturer Product Nu.	3-1393818-3
Manufacturer Standard L.	26 Weeks
Mfr	TE Connectivity Potter .
Mounting Type	Socketable, Screw Mount.
Must Operate Voltage	8.9 VDC
Must Release Voltage	-
Number of Poles	2
Operate Time	7.5 ms
Operating Temp. Range	-40 to 70 ?C
Operating Temperature	-40?C ~ 70?C
Package	Bulk
Power Consumption - Rel.	647 mW
Product Status	Active
Protection Category	RTV
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Hermetically
Series	V23162, AXICOM
Switching Voltage	125VAC, 150VDC - Max, 1.
Terminal Type	Plug-In, Solder
Termination Style	Plug In

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	2398438	403.214	15	In Stock		TE Connectivity Potter & Brumfield Relays		403.214 @ 15
	us.rs-online.com	72129283	448.02	15	In Stock		TE Connectivity		448.02 @ 15
	Newark	75AC7944	602.69	1	In Stock		AMP - TE CONNECTIVITY		602.69 @ 1
	Onlinecomponents.com	3-1393818-3	685.27	1	1		TE Connectivity / AMP Brand		685.27 @ 1
	Zoro	G005866141	726.99	1	In Stock		Te Connectivity		726.99 @ 1
