TE Connectivity 2337994-3

B082BC6CTF

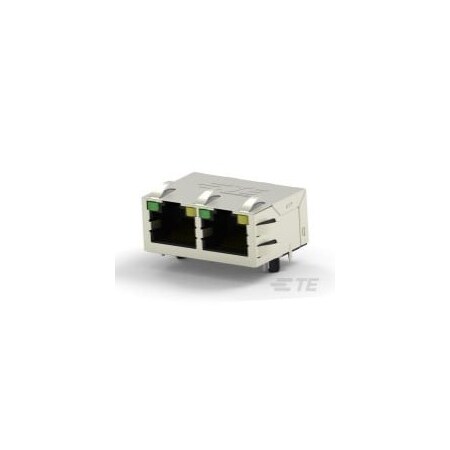

2337994-3, Conn RJ-45 F 16 POS 1.27mm Solder RA Thru-Hole 28 Terminal 2 Port Cat 5 T/R

2337994-3, Conn RJ-45 F 16 POS 1.27mm Solder RA Thru-Hole 28 Terminal 2 Port Cat 5 T/Rzoom

Attributes

Key Value
Applications10/100 Base-T, AutoMDIX.
Base Product Number2337994
CategoryConnectors, Interconnec.
ConfigurationMultiple Ports
Connector & Contact Ter.Printed Circuit Board
Connector Contact Densi.Standard
Connector StyleJack
Connector TypeRJ45
Connectors & Connector .Connector
Contact Base MaterialCopper Alloy
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold over Nickel
Contact Mating Area Pla..76??m?[?30??in?]
Contact Underplating Ma.Nickel
Data Rate10 ; 100 Mbps, 10, 100
DescriptionCONN JACK 2PORT 100 BAS.
Detailed Description2 Port RJ45Through Hole.
Digi-Key Part NumberA145021TR-ND - Tape & R.
FeaturesBoard Guide
Finish PlatingMatte
Flammability RatingUL 94V-0
Grounding OptionsPCB and Panel Ground
Height13.5 mm[.531 in]
Height Above Board0.531" (13.49mm)
Housing ColorBlack
Housing MaterialLCP (Liquid Crystal Pol.
IndicatorLED
Insulation MaterialLCP
Insulator MaterialLCP
KeyedNo
LED ColorGreen - Yellow
LED Color (Bottom Left)None
LED Color (Bottom Right)None
LED Color (Top Left)Green
LED Color (Top Right)Yellow
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2337994-3
Manufacturer Standard L.18 Weeks
MfrTE Connectivity AMP Con.
Modular Jack & Plug Int.RJ45 with Integrated Ma.
Modular Jack Latch Orie.Inverted - Latch Up
Modular Jacks & Plugs P.RJ Type Jacks & Plugs
Mounting TypeThrough Hole
Multiple Port Configura.Ganged
Number of Cores per Jack4
Number of Loaded Positi.8
Number of Panel Ground .7
Number of PCB Ground Ta.2
Number of Ports2
Number of Positions8
Number of Rows1
Operating Temperature-40?C ~ 85?C
OrientationRight Angle, 90? Angle .
PackageTape & Reel (TR)
Package TypeReel
Panel Ground LocationTop and Side
PCB Contact Termination.Tin
PCB Ground Tab Location.3.05?mm?[?.12?in?]
PCB Mount OrientationRight Angle
PCB Termination Area Pl.Matte
Plating MaterialNickel
Port ConfigurationMultiple Ports
Port Matrix Configurati.1 x 2
Product StatusActive
ProfileStandard
SealableNo
Series-
Shield MaterialBrass
Shield Plating FinishMatte
Shield Plating MaterialNickel
ShieldingShielded, EMI Finger
Status IndicatorLED
Tab DirectionUp
Temperature Range-40 to 85 C
TerminationSolder
