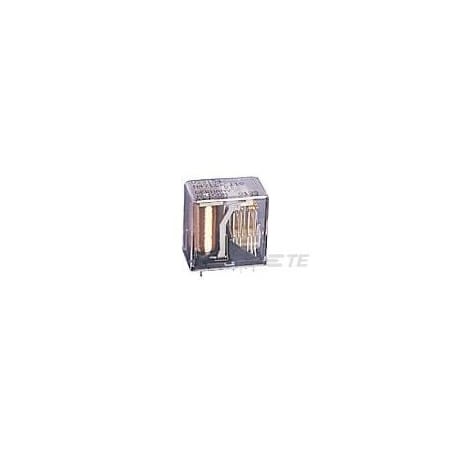

TE Connectivity 3-1393818-2

mpn3-1393818-2
brandname: TE Connectivity Potter & Brumfield Relays
manufacturername: TE Connectivity Potter & Brumfield Relays

TE Connectivity Part Number 3-1393818-2

TE Connectivity Part Number 3-1393818-2

zoom

Brand: TE Connectivity
PartNumber: 3-1393818-2
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Alternate Mfr Part Numb.	3-1393818-2
Base Product Number	1393818
Body Depth - Relay	0.945 in
Body Height - Relay	1.181 in
Body Width - Relay	0.748 in
Category	Relays
Coil Current	46.1 mA
Coil Insulation	-
Coil Resistance	325 Ohms, 325 ?
Coil Type	Non Latching, Monostabl.
Coil Voltage	15VDC
Coil Volts	24V AC
Contact Form	DPDT (2 Form C)
Contact Form - Relay	4 Form C (CO)
Contact Limiting Breaki.	2A
Contact Limiting Contin.	2A
Contact Limiting Making.	2A
Contact Limiting Short-.	2A
Contact Material	Ag, Silver (Ag), Gold (.
Contact Rating	2A
Contact Rating (Current)	2 A
Contact Voltage Rating	125 VAC [ 150 VDC ]
Description	RELAY GEN PURPOSE DPDT .
Detailed Description	General Purpose Relay D.
Dielectric Voltage	1000 Vrms Coil and Cont.
Digi-Key Part Number	3-1393818-2-ND
Electrical Connection -.	Solder Terminals
Features	Standard Type, -
Item - Relay	Cradle N Relay
Manufacturer	TE Connectivity Potter .
Manufacturer Product Nu.	3-1393818-2
Manufacturer Standard L.	25 Weeks
Mfr	TE Connectivity Potter .
Mounting Type	Socketable, Screw Mount.
Must Operate Voltage	6.8 VDC
Must Release Voltage	-
Number of Poles	2
Operate Time	7.5 ms
Operating Temperature	-40?C ~ 70?C
Package	Bulk
Power Consumption - Rel.	647 mW
Product Status	Active
Protection Category	RTV
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Hermetically
Series	V23162, AXICOM
Switching Voltage	125VAC, 150VDC - Max, 1.
Terminal Type	Plug-In, Solder
Termination Style	Plug In

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY AMP BRAND 3-1393818-2	336.56	1	3		TE CONNECTIVITY/AMP BRAND		336.56 @ 1
	Zoro	G205866125	420.99	1	In Stock		Te Connectivity		420.99 @ 1
	Newark	12H9309	443.32	10	In Stock		AXICOM - TE CONNECTIVITY		443.32 @ 10
	Onlinecomponents.com	V23162A719B104	448.23	1	In Stock		TE Connectivity / P&B Brand		448.23 @ 1
	us.rs-online.com	72129311	453.81	10	In Stock		TE Connectivity		453.81 @ 10
	Digi-Key	2398437	477.47	1	3		TE Connectivity Potter & Brumfield Relays		477.47 @ 1
