Texas Instruments LM5046SQ/NOPB

mpnLM5046SQ/NOPB
brandname: Texas Instruments
manufacturername: Texas Instruments

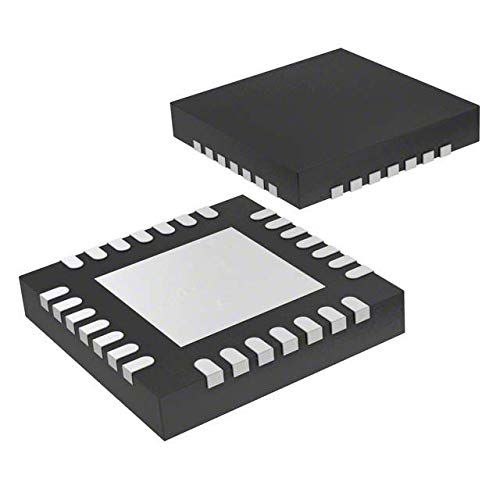

Texas Instruments LM5046SQ/NOPB IC PWM CTRLR Full BRIDG 28WQFN

Texas Instruments LM5046SQ/NOPB IC PWM CTRLR Full BRIDG 28WQFN

zoom

Brand: Texas Instruments
PartNumber: LM5046SQ/NOPB
PackageQuantity: 1
Binding: Misc.
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Base Product Number	LM5046
Category	Integrated Circuits (IC.
Control Features	Frequency Control, Soft.
Duty Cycle	-
Fault Protection	Current Limiting, Over .
Frequency - Switching	Up to 2MHz
Internal Switch(s)	No
Mfr	Texas Instruments
Mounting Type	Surface Mount
Operating Temperature	-40?C ~ 125?C (TJ)
Output Isolation	Isolated
Package	Tape & Reel (TR)
Package / Case	28-WFQFN Exposed Pad
Product Status	Active
Series	-
Supplier Device Package	28-WQFN (5x5)
Topology	Full-Bridge
Voltage - Breakdown	-
Voltage - Supply (Vcc/V.	14V ~ 100V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Arrow	LM5046SQ/NOPB	2.96	1000	33		Texas Instruments		2.96 @ 1000
	Mouser	926-LM5046SQ/NOPB	5.56	1	1302		Texas Instruments		5.56 @ 1
	Digi-Key	3179200	6.67	1	In Stock		Texas Instruments		6.67 @ 1
