- mpnUCF210-32
- brandname: TRITAN
- manufacturername: TRITAN

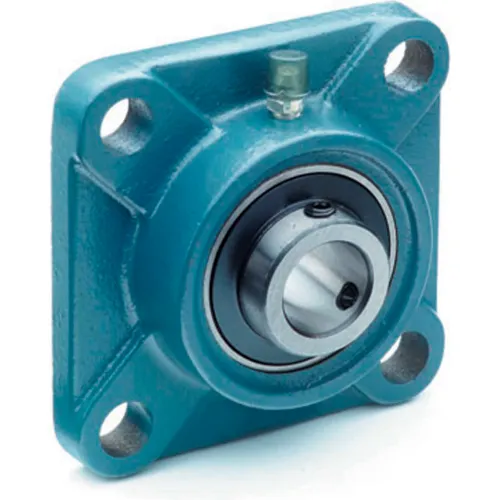

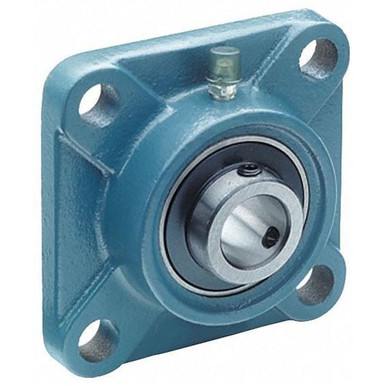

Flange Bearing, 4-Bolt, Ball, 2" Bore
- Brand: Tritan
- PartNumber: UCF210-32
- Model: UCF210-32
- PackageQuantity: 1
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 4.3701" |
| Bolt Size | 1/2 in |
| Bore Dia. | 2" |
| Bore Diameter | 2 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Color | Blue |
| Current Stock | 97 |
| Dynamic Load Capacity | 7,868 lbf, 7890 Lbf |
| Features | UCF Standard Duty, Wide. |
| Finish | Painted |
| Flange Thickness | 0.718 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Square |
| Included Bearing | UC210-32 |
| International Shipping | No |
| Item | 4-Bolt Flange Bearing, . |
| Lead Time | Expected to ship in 1-2. |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 4.375 in |
| Mount Hole Center-to-Ce. | 4.375 in |
| Mount Hole Size | 5/8 in |
| Mounting Bolt Size | 1/2 in |
| Mpn | UCF210-32 |
| Number of Mount Holes | 4 |
| Overall Height | 54.6 mm, 5.625 in |
| Overall Length | 143 mm, 5.625 in |
| Overall Width | 2.156 in, 143 mm |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | UCF |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G9446884 |
| Standards | ISO, AFBMA |
| Static Load Capacity | 5215 Lbf |
| Static Radial Load Capa. | 5,215 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569052834 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9446884 | 43.85 | 1 | 136 | | Tritan | 4.88 | 43.85 @ 1 |
 | simsupply.com | ZO-G9446884 | 60.47 | 1 | 97 | | Tritan | | 60.47 @ 1 |
 | National Supply Network | 01741214 | 69.21 | 1 | In Stock | | Tritan | | 69.21 @ 1 |
 | Global Industrial | WBB1873220 | 73.02 | 1 | In Stock | | Tritan | | 73.02 @ 1 |
| grainger.ca | WWG36UY36 | 96.43784322 | 1 | In Stock | | TRITAN | 4.88 | 96.43784322 @ 1 |
 | Raptor Supplies | AH7JXK | 131.690871 | 1 | In Stock | | TRITAN | | 131.690871 @ 1 |
