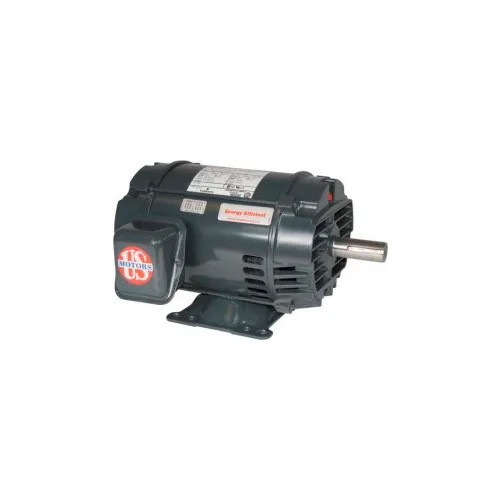

U.S. Motors US Motors Inverter Duty, 3 HP, 3-Phase, 1770 RPM Motor, D3V2B
- Brand: U.S. Motors
- PartNumber: D3V2B
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 7.6/3.8 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 89.5% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 55.00 |
| Family Series | US Motors Motors |
| FL Amps | 7.8/3.9 |
| FL Efficiency | 89.5 |
| Frame | 182T |
| Frequency | 60 Hz |
| Gross Weight | 50 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item | Motor,3PH,3HP,1800,230/. |
| Item Number | D3V2B |
| Kilowatts | 2.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FV33 |
| Manufacturer Part Number | D3V2B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FV33 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 182T |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | D3V2B |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1770, 1,770 RPM |
| Service Factor | 1.15 |
| Ship Weight | 50 lbs. |
| Speed (RPM) | 1770 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0396689 | 396.68 | 1 | In Stock | | U.S. Motors | 50.0 | 396.68 @ 1 |
 | Global Industrial | WBB466219 | 469.95 | 1 | In Stock | | US Motors | | 469.95 @ 1 |
 | emotorpro.com | D3V2B | 505.98 | 1 | In Stock | | U.S. Motors | 50.0 | 505.98 @ 1 |
 | National Supply Network | B466219 | 525.84 | 1 | In Stock | | US MOTORS | | 525.84 @ 1 |
 | motorsandcontrol.com | D3V2B | 533.35 | 1 | In Stock | | US Motors (Nidec) | 55.0 | 533.35 @ 1 |
 | Galco | D3V2B-USM | 653.85 | 1 | In Stock | | US Motors | 50.0 | 653.85 @ 1 |
| motionindustries.com | 02898464 | 911.03 | 1 | In Stock | | US Motors (Nidec) | | 911.03 @ 1 |
