- mpnEB120
- brandname: US Motors
- manufacturername: US Motors

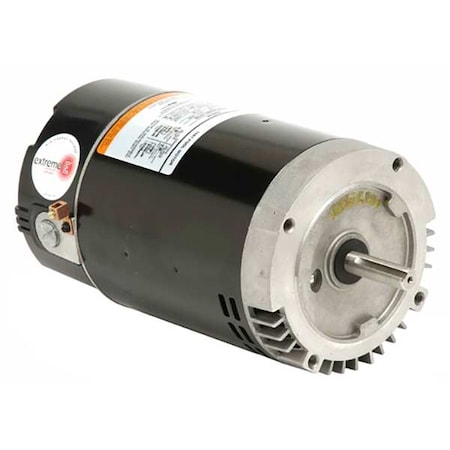

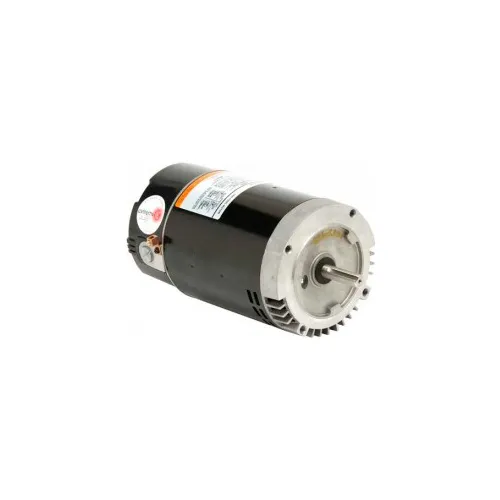

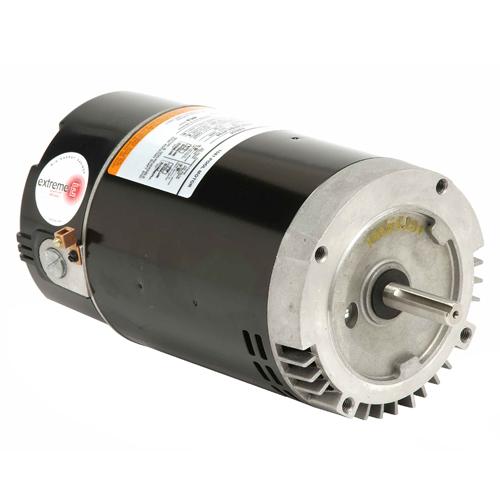

EB120 | 1/2 hp 3450 RPM 56C Frame 115/230V Swimming Pool - Jet Pump Motor US Electric Motor
- Brand: US Motors
- PartNumber: EB120
- PackageQuantity: 1
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Ambient Temperature | 50 Degrees C |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor | 30MFD/370VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Enclosure | Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 23.10 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 4.4/8.8 |
| Gross Weight | 17 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Item Number | EB120 |
| Kilowatts | 0.4 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | K063ESN4800013J |
| Manufacturer Part Number | EB120 |
| Maximum Ambient Tempera. | 50? C |
| Model Number | K063ESN4800013J |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacit. |
| Motor Enclosure Design | Open Dripproof |
| Motor Flange Material | Aluminum |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.6 |
| Motor Shaft Rotation | CWLE |
| Motor Thermal Protection | Auto |
| Mounting | Footless, Face |
| Mounting Type | C-Flange |
| Nameplate RPM | 3,450 |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | EB120 |
| Phase | 1, Single |
| Product Type | PSC (Permanent Split Ca. |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.60 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Ship Weight | 21 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA (156060), UL (E2292. |
| Thermal Protection | Automatic |
| Type | Pool and Spa |
| Voltage | 110-120V, 230V, 115/230. |
| Voltage (AC) | 115 VAC, 230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B00YSZ9QJE | 163.45 | 1 | In Stock | 2 | US Motors | | 163.45 @ 1 |
| lesliespool.com | 623386 | 175.53 | 1 | In Stock | | U.S. Motors Emerson | | 175.53 @ 1 |
 | Global Industrial | WBB465926 | 190.95 | 1 | In Stock | | US Motors | | 190.95 @ 1 |
 | Zoro | G0197936 | 190.99 | 1 | In Stock | 3 | U.S. Motors | 17.0 | 190.99 @ 1 |
 | emotorpro.com | EB120 | 204.08 | 1 | In Stock | | U.S. Motors | 21.0 | 204.08 @ 1 |
 | National Supply Network | B465926 | 220.04 | 1 | In Stock | | US MOTORS | | 220.04 @ 1 |
 | Galco | EB120-USM | 232.19 | 1 | In Stock | | US Motors | 17.0 | 232.19 @ 1 |
 | motorsandcontrol.com | EB120 | 233.19 | 1 | In Stock | | US Motors (Nidec) | 23.1 | 233.19 @ 1 |
| Pool Supply World | 623386 | 261.99 | 1 | In Stock | | U.S. Motors Emerson | | 261.99 @ 1 |
| hottubworks.com | 623386 | 261.99 | 1 | In Stock | | U.S. Motors Emerson | | 261.99 @ 1 |
| motionindustries.com | 04385054 | 305.59 | 1 | In Stock | | US Motors (Nidec) | | 305.59 @ 1 |
