- mpnEH514
- brandname: US Motors
- manufacturername: US Motors

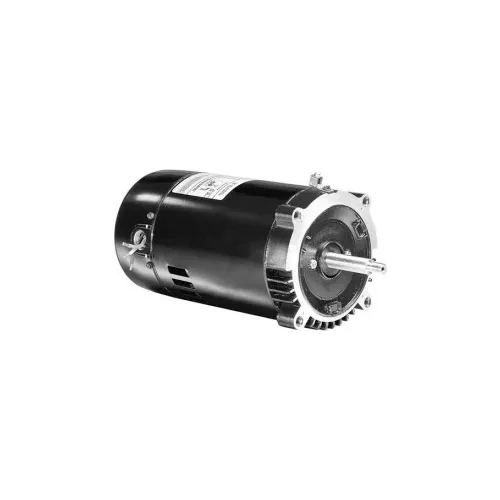

EH514 | 1 hp 3450 RPM 56J Frame 208-230/460V Three Phase US Electric Motor Pool Motor
- Brand: US Motors
- PartNumber: EH514
- PackageQuantity: 1
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Ambient Temperature | 50 Degrees C |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 26.40 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| Frame | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 4.4/4.2/2.1 |
| Gross Weight | 26 lbs |
| Hertz | 50, 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60, 50/60 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Item Number | EH514 |
| Kilowatts | 0.8 kW |
| Length Less Shaft | 9 1/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063GET4523014J |
| Manufacturer Part Number | EH514 |
| Max. Ambient Temp. | 50 Degrees C |
| Max. SF Amps | 4.4 |
| Maximum Ambient Tempera. | 50? C |
| Model Number | P063GET4523014J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Flange Material | Aluminum |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | None |
| Mounting | Footless, Face |
| Mounting Type | C-Flange |
| Nameplate RPM | 3,450 |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | EH514 |
| Phase | 3, Three |
| Product Type | Pump, Three Phase |
| Replacement For | Mfr. No. H514, T3102 |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.40 |
| Shaft | Threaded |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Shaft Material | Stainless Steel |
| Ship Weight | 24 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA (156060), UL (E2292. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
| Weight | 24 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Pool Supply World | 627241 | 282.99 | 1 | In Stock | | U.S. Motors Emerson | | 282.99 @ 1 |
 | Zoro | G0198548 | 286.0 | 1 | In Stock | | U.S. Motors | 26.0 | 286.0 @ 1 |
 | Global Industrial | WBB466190 | 315.95 | 1 | In Stock | | US Motors | | 315.95 @ 1 |
 | emotorpro.com | EH514 | 321.33 | 1 | In Stock | | U.S. Motors | 24.0 | 321.33 @ 1 |
 | motorsandcontrol.com | EH514 | 367.15 | 1 | In Stock | | US Motors (Nidec) | 26.4 | 367.15 @ 1 |
 | National Supply Network | B466190 | 370.38 | 1 | In Stock | | US MOTORS | | 370.38 @ 1 |
 | Galco | EH514-USM | 376.83 | 1 | In Stock | | US Motors | 26.0 | 376.83 @ 1 |
| motionindustries.com | 04385431 | 481.14 | 1 | In Stock | | US Motors (Nidec) | | 481.14 @ 1 |
