- mpnU13S2ACR
- brandname: US Motors
- manufacturername: US Motors

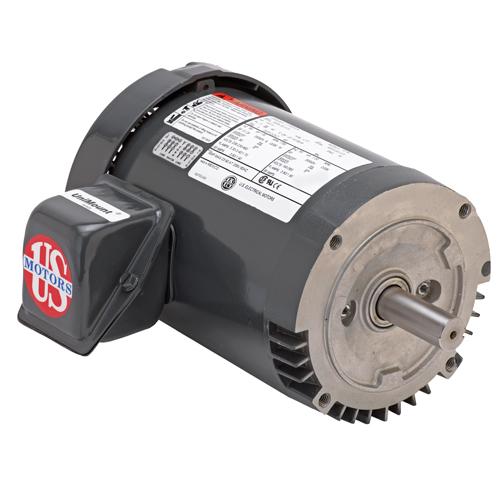

US Motors/Emerson U13S2ACR U13s2acr 1/3hp Tefc C-face Motor
- PartNumber: U13S2ACR
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 1.2-1.2/0.6 |
| bearing type: | 6203-2Z-J/C3 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| duty / condition type: | Continuous Duty |
| Efficiency | 75.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| enclosure type: | TEFC (Totally Enclosed . |
| Estimated Weight | 27.90 |
| Family Series | US Motors Motors |
| FL Amps | 1.2-1.2/0.6 |
| FL Efficiency | 75.5 |
| Frame | 56C |
| frame material: | Steel |
| frame size: | 56C |
| Frequency | 60 Hz |
| frequency rating: | 60 Hz |
| full load current: | 1.20 |
| full load efficiency: | 75.50 % |
| Gross Weight | 25.37 lbs |
| harmonization code: | 8501.51.4040 |
| Hertz | 50, 60 |
| Horsepower | 1/3 hp |
| HP | 0.33, 1/3 |
| Hz | 60 |
| Insulation Class | F |
| insulation class: | F |
| Item | Motor,1/3HP,1750rpm,56C. |
| Item Number | U13S2ACR |
| Kilowatts | 0.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | F045 |
| Manufacturer Part Number | U13S2ACR |
| Maximum Ambient Tempera. | 40? C |
| Model Number | F045 |
| motor horsepower: | 0.33 hp, 1/3 hp |
| motor phase: | 3 ph |
| motor poles: | 4-pole |
| motor supply voltage: | 208-230/460 V |
| Mounting | Footless, Face |
| Mounting Type | C-Face Footless |
| mounting type: | Footless / C-Face Flange |
| nema design class: | B |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | U13S2ACR |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,750 RPM, 1750 |
| Service Factor | 1.25 |
| service factor: | 1.25 |
| shaft diameter: | 0.63 in |
| Ship Weight | 25 lbs. |
| Speed (RPM) | 1750 |
| standards met: | CE, NEMA |
| synchronous rpm: | 1800 rpm |
| Voltage | 190V, 230V, 380V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
| weight: | 25.37 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7729982 | 188.0 | 1 | In Stock | | U.S. Motors | 25.37 | 188.0 @ 1 |
 | Global Industrial | WBB467275 | 209.95 | 1 | In Stock | | US Motors | | 209.95 @ 1 |
 | motionindustries.com | 00546124 | 213.22 | 1 | In Stock | | US Motors (Nidec) | | 213.22 @ 1 |
 | emotorpro.com | U13S2ACR | 216.35 | 1 | In Stock | | U.S. Motors | 25.0 | 216.35 @ 1 |
 | Galco | U13S2ACR-USM | 220.98 | 1 | In Stock | | US Motors | 25.37 | 220.98 @ 1 |
 | motorsandcontrol.com | U13S2ACR | 220.98 | 1 | In Stock | | US Motors (Nidec) | 27.9 | 220.98 @ 1 |
 | National Supply Network | B467275 | 231.37 | 1 | In Stock | | US MOTORS | | 231.37 @ 1 |
 | Guardian | 04089975 | 375.93 | 1 | In Stock | | US Motors | | 375.93 @ 1 |
 | bscsource.com | U13S2ACR | 419.49 | 1 | In Stock | | US Motors | | 419.49 @ 1 |
