- mpnU1P2DC
- brandname: US Motors
- manufacturername: US Motors

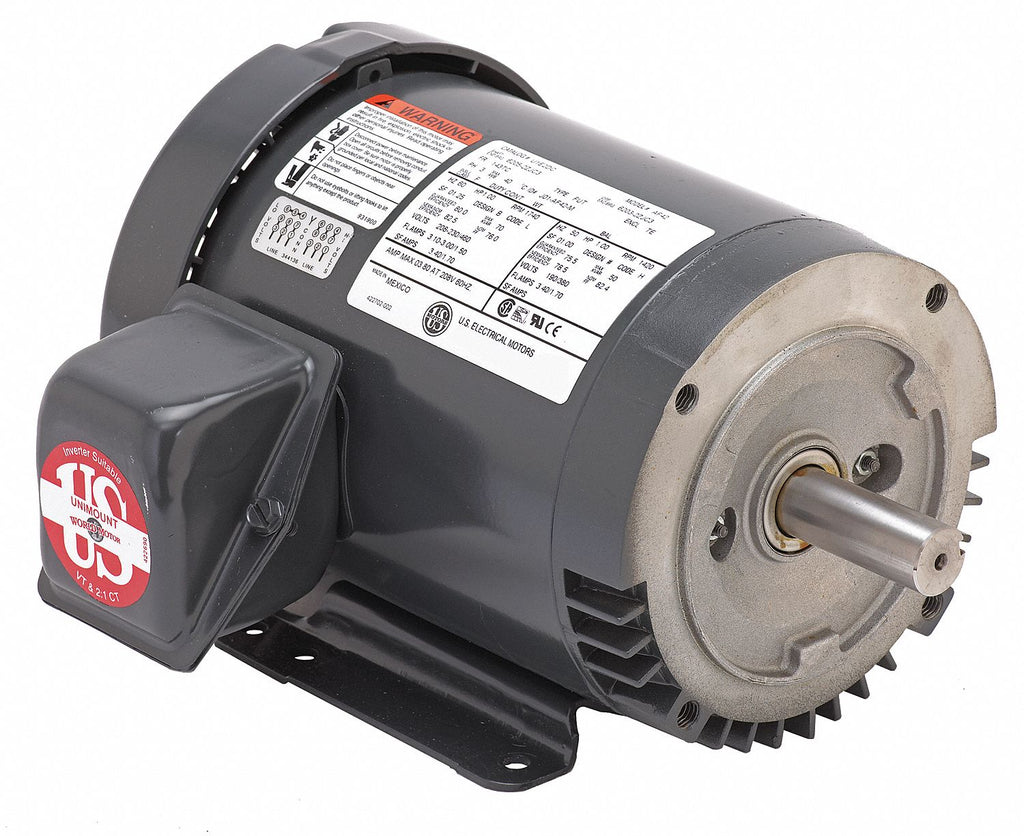

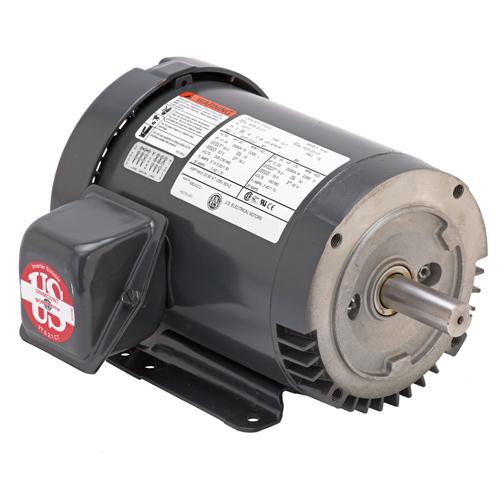

US Electric Motors-Nidec, U1P2DC, 1HP, 1755RPM, 3PH, 230V;460V;190V;380V, 143TC Frame, General Purpose Motor Motor.
- Brand: US Motors-Nidec
- PartNumber: U1P2DC
- Manufacturer: US Motors-Nidec
- Label: US Motors-Nidec
Attributes
| Key | Value |
|---|
| Amps | 3.1-3/1.5 |
| Bearings | Ball |
| Brand | U.s. Motors |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Current Stock | 5 |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 33.00 |
| Family Series | US Motors Motors |
| FL Amps | 3.1-3/1.5 |
| FL Efficiency | 85.5 |
| Frame | 143TC |
| Frequency | 60 Hz |
| Full Load Amps | 3.1 - 3.0/1.5 |
| Green Certification or . | NEMA Premium(R) Rated |
| Gross Weight | 30 lbs |
| Hertz | 50, 60 |
| Horsepower | 1 hp |
| HP | 1 |
| HP @ 50Hz | 1440 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Number | U1P2DC |
| Kilowatts | 0.7 kW |
| Length Less Shaft | 9-7/8", 9 7/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD07 |
| Manufacturer Part Number | U1P2DC |
| Manufacturers Warranty . | 2 yr., 2 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD07 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Mpn | U1P2DC |
| Nameplate RPM | 1,800 |
| NEMA Design | B |
| NEMA Frame | 143TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 12 1/8 in, 12-1/8" |
| Part Number | U1P2DC |
| Part Winding Start Capa. | Yes |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1755, 1,755 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8", 7/8 in |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 30 lbs. |
| SKU | ZO-G4627533 |
| Speed (RPM) | 1755 |
| Standards | CE, CSA, UL, UL Recogni. |
| SubCategory | Motors/Ac Motors |
| UPC | 786382087807 |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
| Weight | 30 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | hardwareandmoreee.com | U1P2DC | 365.93 | 1 | In Stock | | US Motors | | 365.93 @ 1 |
 | Global Industrial | WBB467126 | 392.95 | 1 | In Stock | | US Motors | | 392.95 @ 1 |
 | emotorpro.com | U1P2DC | 396.43 | 1 | In Stock | | U.S. Motors | 30.0 | 396.43 @ 1 |
 | motorsandcontrol.com | U1P2DC | 417.87 | 1 | 2 | | US Motors (Nidec) | 33.0 | 417.87 @ 1 |
 | Galco | U1P2DC-USM | 417.88 | 1 | In Stock | | US Motors | 30.0 | 417.88 @ 1 |
 | sustainablesupply.com | C1549366 | 435.63 | 1 | In Stock | | US Motors | 40.15 | 435.63 @ 1 |
 | National Supply Network | B467126 | 447.66 | 1 | In Stock | | US MOTORS | | 447.66 @ 1 |
 | Zoro | G4627533 | 464.94 | 1 | 10 | | U.S. Motors | 40.15 | 464.94 @ 1 |
 | Guardian | 63846737 | 569.85 | 1 | In Stock | | US Motors | | 569.85 @ 1 |
 | simsupply.com | ZO-G4627533 | 619.05 | 1 | 5 | | U.s. Motors | | 619.05 @ 1 |
| grainger.ca | GGE23J887 | 771.5680683 | 1 | In Stock | | U.S. MOTORS | 40.15 | 771.5680683 @ 1 |
