- mpnU2P1D
- brandname: US Motors
- manufacturername: US Motors

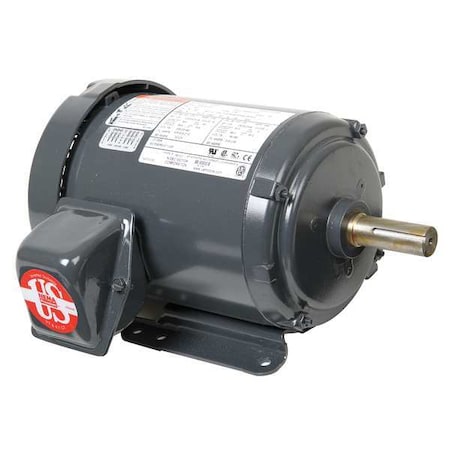

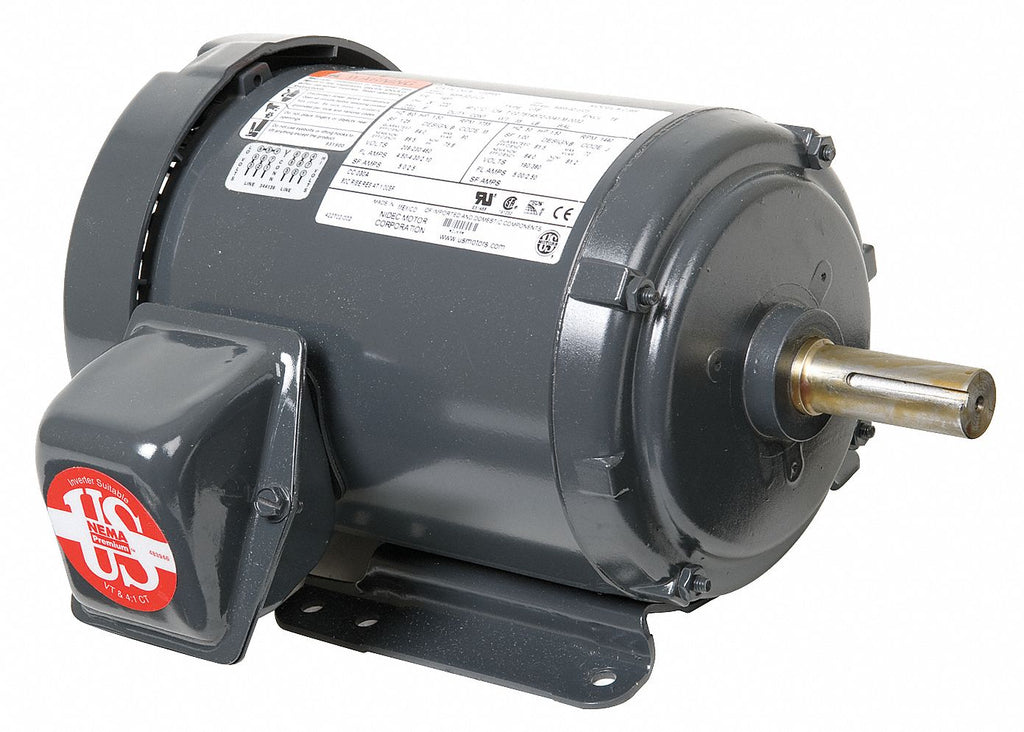

GP Motor,2 HP,3,600 RPM,208-230/460V
- Brand: US Motors
- PartNumber: U2P1D
- Color: Black
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Us Motors
- Label: Us Motors
Attributes
| Key | Value |
|---|
| Brand | U.s. Motors |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Current Stock | 6 |
| Drive End Flange Type | Standard |
| Enclosure | TEFC, Totally Enclosed . |
| Estimated Weight | 44.00 |
| Family Series | US Motors Motors |
| FL Amps | 5.4-4.9/2.5 |
| FL Efficiency | 85.5 |
| Frame | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 5.4-4.9/2.5 |
| Gross Weight | 35 lbs |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Number | U2P1D |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 10 9/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Part Number | U2P1D |
| Manufacturers Warranty . | 2 yr |
| Model Number | FD72 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| Mpn | U2P1D |
| Nameplate RPM | 3,600 |
| NEMA Frame | 145T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 13 in |
| Part Number | U2P1D |
| Phase | 3 |
| Product Type | General Purpose |
| RPM | 3,505 RPM |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| SKU | ZO-G4526627 |
| Speed (RPM) | 3505 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| UPC | 786382087692 |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467134 | 382.95 | 1 | In Stock | | US Motors | | 382.95 @ 1 |
 | National Supply Network | B467134 | 431.24 | 1 | In Stock | | US MOTORS | | 431.24 @ 1 |
 | Galco | U2P1D-USM | 436.15 | 1 | In Stock | | US Motors | 35.0 | 436.15 @ 1 |
 | motorsandcontrol.com | U2P1D | 436.15 | 1 | In Stock | | US Motors (Nidec) | 44.0 | 436.15 @ 1 |
 | Zoro | G4526627 | 460.99 | 1 | 18 | | U.S. Motors | 38.45 | 460.99 @ 1 |
 | simsupply.com | ZO-G4526627 | 558.57 | 1 | 6 | | U.s. Motors | | 558.57 @ 1 |
 | sustainablesupply.com | C2828764 | 583.63 | 1 | In Stock | | US Motors | 38.45 | 583.63 @ 1 |
| motionindustries.com | 04487545 | 1260.47 | 1 | In Stock | | US Motors (Nidec) | | 1260.47 @ 1 |
