- mpnU2P1DC
- brandname: US Motors
- manufacturername: US Motors

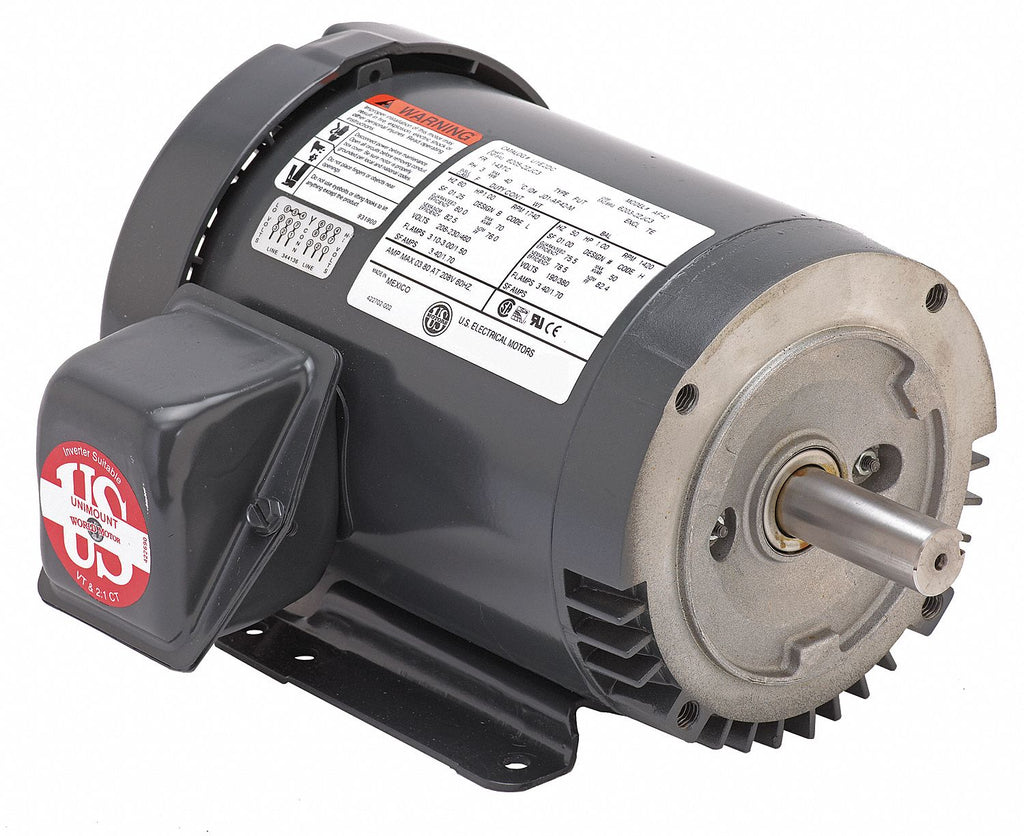

U.S. Motors US Motors Unimount TEFC, 2 HP, 3-Phase, 3505 RPM Motor, U2P1DC
- Brand: U.S. Motors
- PartNumber: U2P1DC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 5.4-4.9/2.5 |
| Bearings | Ball |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Efficiency | 86.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 44.00 |
| Family Series | US Motors Motors |
| FL Amps | 5.4-4.9/2.5 |
| FL Efficiency | 85.5 |
| Frame | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 5.4 - 4.9/2.5 |
| Gross Weight | 35 lbs |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U2P1DC |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 10-27/32", 10 7/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD83 |
| Manufacturer Part Number | U2P1DC |
| Manufacturers Warranty . | 2 yr., 2 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD83 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient,. |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 3,600 |
| NEMA Design | B |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 13-1/8", 13 1/8 in |
| Part Number | U2P1DC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3,505 RPM, 3505 |
| RPM Range | 3,001-3,600, 2,350 - 3,. |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8", 7/8 in |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 35 lbs. |
| Speed (RPM) | 3505 |
| Standards | CE, CSA, UL, UL Recogni. |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 208, 230, 240, 460, 208. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGE23J892 | 117.19727392 | 1 | In Stock | | US MOTORS | 40.0 | 117.19727392 @ 1 |
 | Global Industrial | WBB467135 | 438.95 | 1 | In Stock | 17 | US Motors | | 438.95 @ 1 |
 | emotorpro.com | U2P1DC | 476.03 | 1 | In Stock | | U.S. Motors | 35.0 | 476.03 @ 1 |
 | Square One | U2P1DC | 491.11 | 1 | In Stock | | US MOTOR | | 491.11 @ 1 |
 | National Supply Network | B467135 | 492.84 | 1 | In Stock | | US MOTORS | | 492.84 @ 1 |
 | Galco | U2P1DC-USM | 501.78 | 1 | In Stock | | US Motors | 35.0 | 501.78 @ 1 |
 | motorsandcontrol.com | U2P1DC | 501.78 | 1 | In Stock | | US Motors (Nidec) | 44.0 | 501.78 @ 1 |
 | Zoro | G4594064 | 576.99 | 1 | 1 | | U.S. Motors | 40.0 | 576.99 @ 1 |
 | sustainablesupply.com | C2828757 | 664.49 | 1 | In Stock | | US Motors | 40.0 | 664.49 @ 1 |
 | Guardian | 51505006 | 746.56 | 1 | In Stock | | US Motors | | 746.56 @ 1 |
| motionindustries.com | 04487620 | 818.98 | 1 | In Stock | | US Motors (Nidec) | | 818.98 @ 1 |
