- mpnU2P1GC
- brandname: US Motors
- manufacturername: US Motors

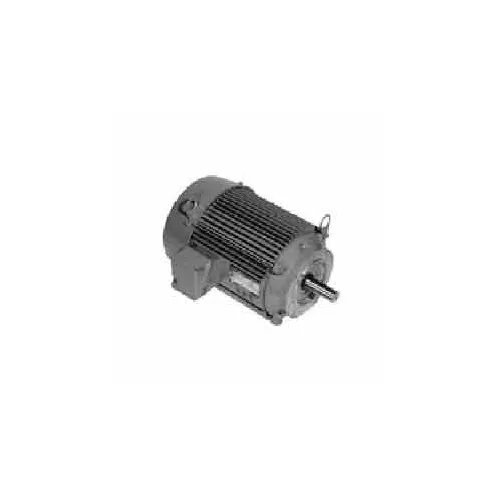

U.S. Motors US Motors Unimount TEFC, 2 HP, 3-Phase, 3500 RPM Motor, U2P1GC
- Brand: U.S. Motors
- PartNumber: U2P1GC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Duty | CONT |
| Enclosure | TEFC, Totally Enclosed . |
| Estimated Weight | 44.00 |
| Family Series | US Motors Motors |
| FL Amps | 2 |
| FL Efficiency | 85.5 |
| Frame | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 2 |
| Gross Weight | 35 lbs |
| Hertz | 60 |
| Horsepower | 2 HP |
| HP | 2 HP, 2 |
| Hz | 60 Hz |
| Ins. Class | F |
| Item | Motor,3PH,2HP,3600,575V. |
| Item Number | U2P1GC |
| Kilowatts | 1.5 kW |
| kW | 1.492 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Part Number | U2P1GC |
| Model Number | FD85 |
| Motor Bearings | 6203-2Z-J/C3,6205-2Z-J/. |
| Motor Enclosure Design | TEFC |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | HORZ-FOOTED |
| Motor Service Factor | 1.15 |
| Mounting | Foot Mount |
| Mounting Type | C-Face Footed |
| NEMA Design | B |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| Nominal Efficiency | 0.865 |
| Nominal Voltage | 575 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 13.1 |
| Part Number | U2P1GC |
| Phase | 3, 3 ph |
| Product Type | General Purpose |
| RPM | 3,500 RPM |
| RPM Range | 3500 RPM |
| Speed (RPM) | 3500 |
| Standards | EE,NEMA PREMIUM |
| Voltage | 575V, 575 V |
| Voltage (AC) | 575 VAC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0395575 | 395.99 | 1 | In Stock | | U.S. Motors | 35.0 | 395.99 @ 1 |
 | Global Industrial | WBB467137 | 438.95 | 1 | In Stock | 17 | US Motors | | 438.95 @ 1 |
 | National Supply Network | B467137 | 492.84 | 1 | In Stock | | US MOTORS | | 492.84 @ 1 |
 | motorsandcontrol.com | U2P1GC | 501.78 | 1 | In Stock | | US Motors (Nidec) | 44.0 | 501.78 @ 1 |
 | Galco | U2P1GC-USM | 501.78 | 1 | In Stock | | US Motors | 35.0 | 501.78 @ 1 |
| motionindustries.com | 04487621 | 712.22 | 1 | In Stock | | US Motors (Nidec) | | 712.22 @ 1 |
