- mpnU2P3DC
- brandname: US Motors
- manufacturername: US Motors

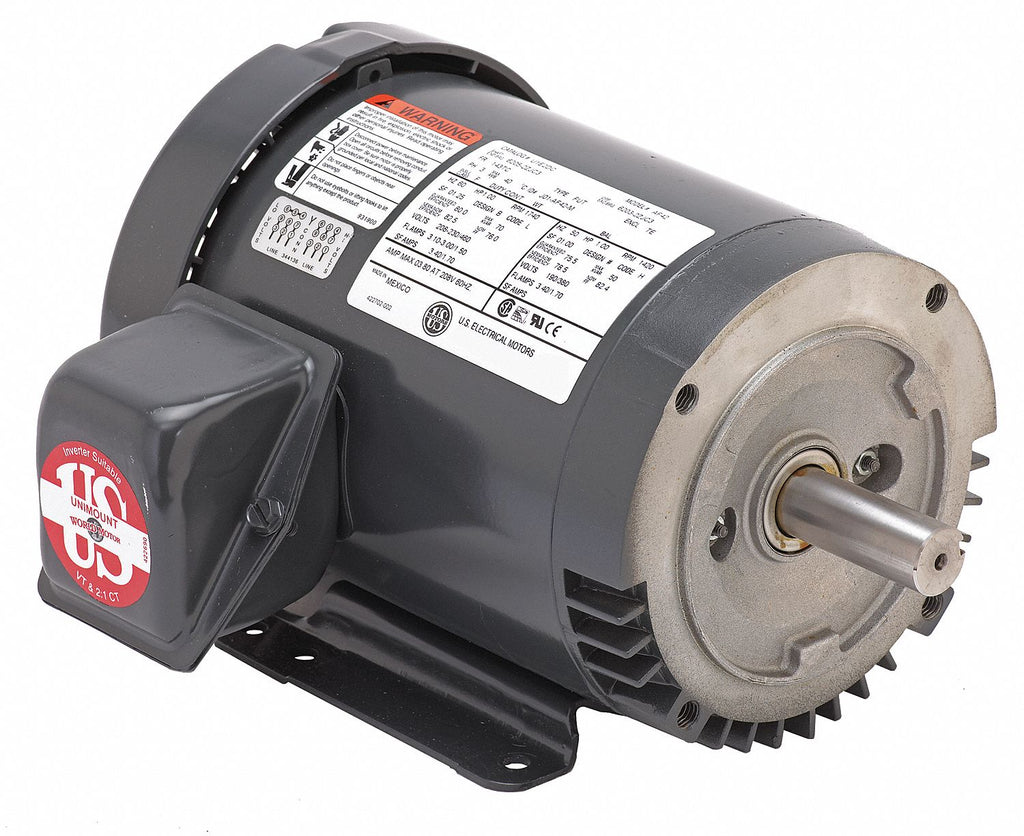

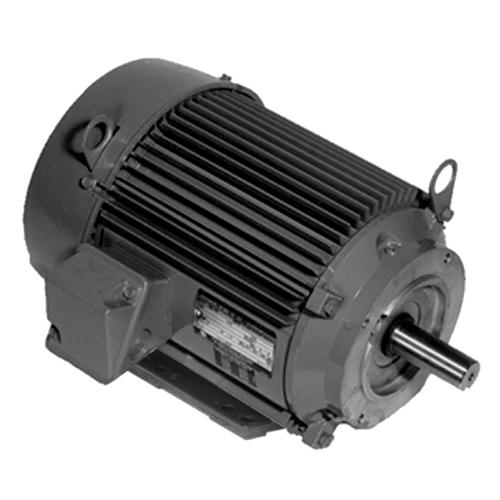

U.S. Motors US Motors Unimount TEFC, 2 HP, 3-Phase, 1175 RPM Motor, U2P3DC
- Brand: U.S. Motors
- PartNumber: U2P3DC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 6.4-6.2/3.1 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | C-Face |
| Efficiency | 88.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 77.00 |
| Family Series | US Motors Motors |
| FL Amps | 6.4-6.2/3.1 |
| FL Efficiency | 88.5 |
| Frame | 184TC |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Gross Weight | 70 lbs |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U2P3DC |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 14 1/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DS42 |
| Manufacturer Part Number | U2P3DC |
| Manufacturers Warranty . | 2 yr |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DS42 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 1,200 |
| NEMA Frame | 184TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 16 1/4 in |
| Part Number | U2P3DC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1175, 1,175 RPM |
| RPM Range | 1,101-1,200 |
| Service Factor | 1.25 |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 3/4 in |
| Ship Weight | 70 lbs. |
| Speed (RPM) | 1175 |
| Standards | CE, CSA, UL |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | U2P3DC | 699.13 | 1 | In Stock | | U.S. Motors | 70.0 | 699.13 @ 1 |
 | Global Industrial | WBB467295 | 729.0 | 1 | In Stock | | US Motors | | 729.0 @ 1 |
 | Zoro | G4525841 | 764.99 | 1 | 1 | | U.S. Motors | 69.9 | 764.99 @ 1 |
 | motorsandcontrol.com | U2P3DC | 772.61 | 1 | In Stock | | US Motors (Nidec) | 77.0 | 772.61 @ 1 |
 | Galco | U2P3DC-USM | 772.62 | 1 | In Stock | | US Motors | 70.0 | 772.62 @ 1 |
 | National Supply Network | B467295 | 783.99 | 1 | In Stock | | US MOTORS | | 783.99 @ 1 |
 | sustainablesupply.com | C2828743 | 1063.03 | 1 | In Stock | | US Motors | 69.9 | 1063.03 @ 1 |
| motionindustries.com | 04487623 | 1261.01 | 1 | In Stock | | US Motors (Nidec) | | 1261.01 @ 1 |
