- mpnU32P3H
- brandname: US Motors
- manufacturername: US Motors

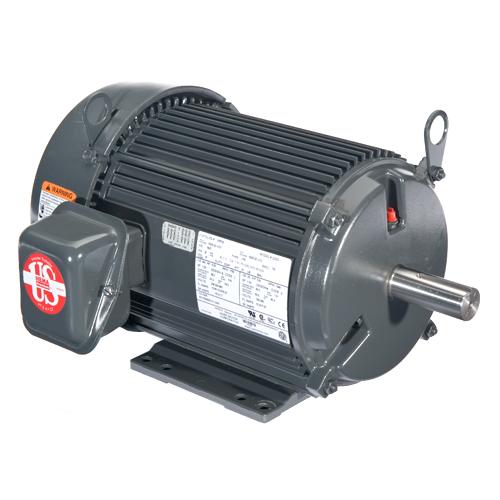

U.S. Motors US Motors Unimount TEFC, 1.5 HP, 3-Phase, 1175 RPM Motor, U32P3H
- Brand: U.S. Motors
- PartNumber: U32P3H
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 5.4 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 87.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 82.50 |
| Family Series | US Motors Motors |
| FL Amps | 5.4 |
| FL Efficiency | 87.5 |
| Frame | 182T |
| Frequency | 60 Hz |
| Gross Weight | 60 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,1 1/2HP,1175rpm,1. |
| Item Number | U32P3H |
| Kilowatts | 1.1 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | CJ77 |
| Manufacturer Part Number | U32P3H |
| Maximum Ambient Tempera. | 40? C |
| Model Number | CJ77 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 182T |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Part Number | U32P3H |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1175, 1,175 RPM |
| Service Factor | 1.25 |
| Ship Weight | 60 lbs. |
| Speed (RPM) | 1175 |
| Voltage | 200V |
| Voltage (AC) | 200 VAC |
| Volts | 200 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466311 | 548.0 | 1 | In Stock | 17 | US Motors | | 548.0 @ 1 |
 | Zoro | G7725134 | 589.68 | 1 | In Stock | | U.S. Motors | 60.0 | 589.68 @ 1 |
 | emotorpro.com | U32P3H | 591.89 | 1 | In Stock | | U.S. Motors | 60.0 | 591.89 @ 1 |
 | National Supply Network | B466311 | 610.59 | 1 | In Stock | | US MOTORS | | 610.59 @ 1 |
 | motorsandcontrol.com | U32P3H | 623.9 | 1 | In Stock | | US Motors (Nidec) | 82.5 | 623.9 @ 1 |
 | Galco | U32P3H-USM | 623.91 | 1 | In Stock | | US Motors | 60.0 | 623.91 @ 1 |
| motionindustries.com | 04601350 | 885.56 | 1 | In Stock | | US Motors (Nidec) | | 885.56 @ 1 |
