- mpnU7P1AF
- brandname: US Motors
- manufacturername: US Motors

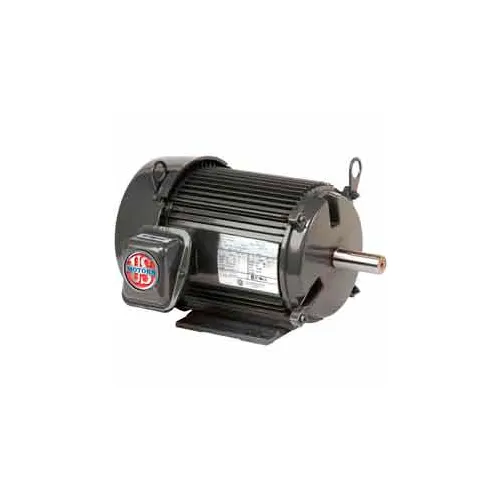

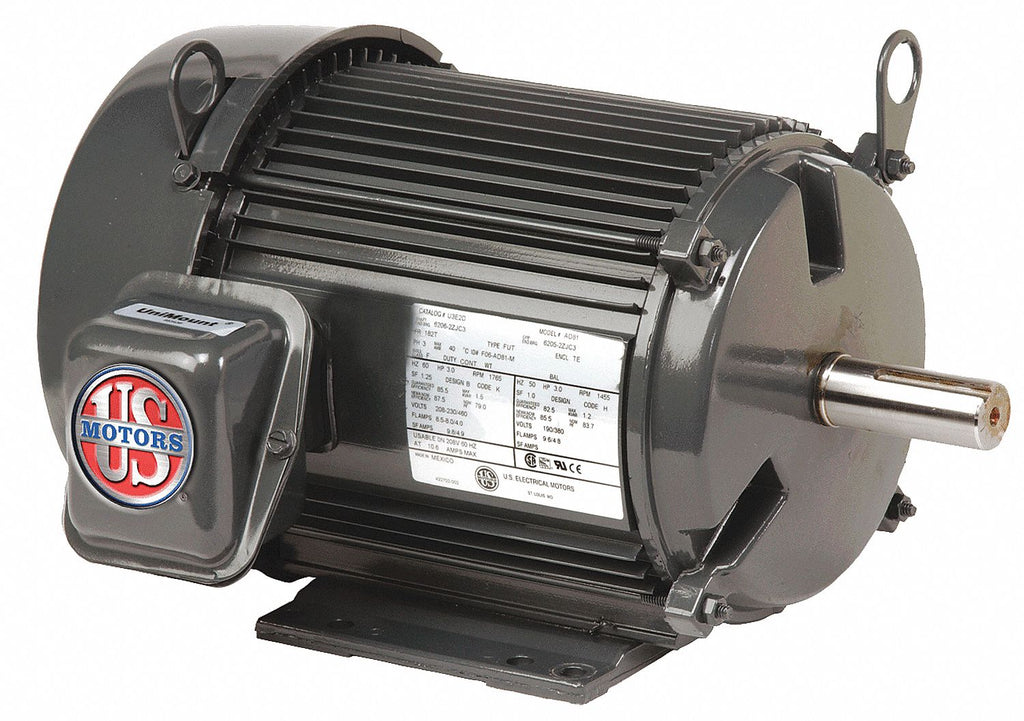

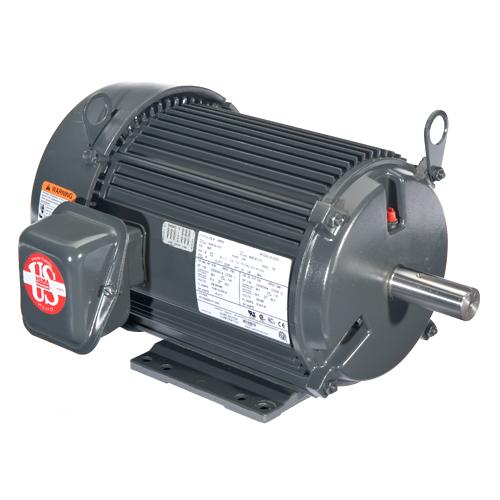

U.S. Motors US Motors Unimount TEFC, 7.5 HP, 3-Phase, 3510 RPM Motor, U7P1AF
- Brand: U.S. Motors
- PartNumber: U7P1AF
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 19.9-17.7/8.9 |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | Standard |
| Efficiency | 89.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 77.00 |
| Family Series | US Motors Motors |
| FL Amps | 19.9-17.7/8.9 |
| FL Efficiency | 89.5 |
| Frame | 184T |
| Frequency | 60 Hz |
| Gross Weight | 70 lbs |
| Hertz | 60 |
| Horsepower | 7-1/2 hp |
| HP | 7 1/2, 7-1/2, 7.5 |
| Hz | 60 |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U7P1AF |
| Kilowatts | 5.6 kW |
| Length Less Shaft | 13 1/4 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DA69 |
| Manufacturer Part Number | U7P1AF |
| Manufacturers Warranty . | 2 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DA69 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| Nameplate RPM | 3,600 |
| NEMA Frame | 184T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 16 1/8 in |
| Part Number | U7P1AF |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3510, 3,510 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.25 |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 3/4 in |
| Ship Weight | 70 lbs. |
| Speed (RPM) | 3510 |
| Standards | CE, CSA, UL |
| Voltage | 230/460V AC, 208V, 230V. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466239 | 809.0 | 1 | In Stock | | US Motors | | 809.0 @ 1 |
 | emotorpro.com | U7P1AF | 846.45 | 1 | In Stock | | U.S. Motors | 70.0 | 846.45 @ 1 |
 | National Supply Network | B466239 | 867.99 | 1 | In Stock | | US MOTORS | | 867.99 @ 1 |
 | Zoro | G4623832 | 891.99 | 1 | In Stock | | U.S. Motors | 74.9 | 891.99 @ 1 |
 | motorsandcontrol.com | U7P1AF | 892.24 | 1 | In Stock | | US Motors (Nidec) | 77.0 | 892.24 @ 1 |
 | Galco | U7P1AF-USM | 892.25 | 1 | In Stock | | US Motors | 70.0 | 892.25 @ 1 |
 | sustainablesupply.com | C2828731 | 1184.68 | 1 | In Stock | | US Motors | 73.35 | 1184.68 @ 1 |
| motionindustries.com | 04601400 | 1456.26 | 1 | In Stock | | US Motors (Nidec) | | 1456.26 @ 1 |
