WEG 01018ET3E215TC-W22

mpn01018ET3E215TC-W22
brandname: WEG
manufacturername: WEG

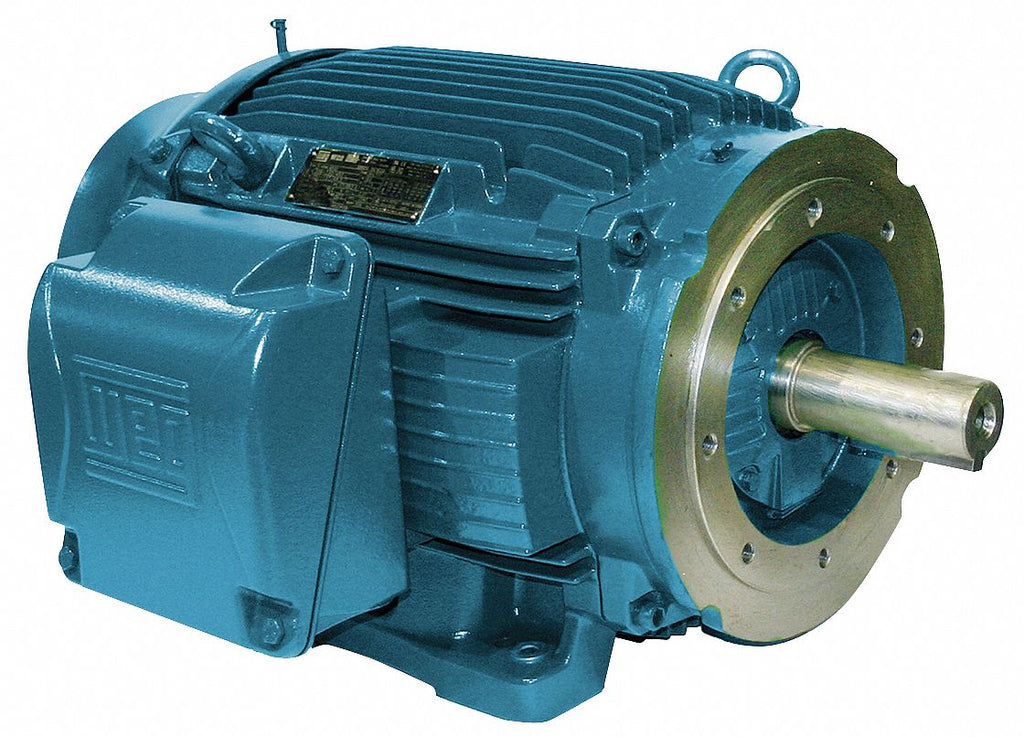

Weg 10 HP General Purpose Motor, 3-Phase, 1760 Nameplate RPM, Voltage 208-230/460, Frame 215TC - 01018ET3E215TC-W22

Brand: WEG
PartNumber: 01018ET3E215TC-W22
Manufacturer: Weg
Label: Weg

Attributes

Key	Value
Amperage Rating	27.4 to 24.8/12.4 A
Application Type	General Purpose AC Moto.
Bearing Type	Ball
Brand	WEG
Classification	Three Phase
Composition	Cast Iron
Condition	New
Constant Torque Speed R.	20:1
Construction	Cast Iron
Current Stock	In Stock
Degree of Protection	IP55
Description:	10HP 1800 3 60 208-230/.
Dimensions	19.517 in L
Drive End Flange Type	C-Face
Efficiency %	91.7 %
Enclosure	TEFC, IC411 - TEFC, Tot.
Enclosure Type	Totally Enclosed Fan Co.
Estimated Weight	196.00
Family Series	WEG Electric Motors
FL Amps	12.4
FL Efficiency	91.7
Flanges	Flange C
Frame	213-5TC, 213TC, 215TC, .
Frame Remarks	Footed
Frequency	60 Hz
Frequency Rating	60 Hz
Gross Weight	182 lbs
Hertz	60
Horsepower	10 hp
HP	10
Hz	60
Insulation Class	Class F
International Shipping	No
Item	General Purpose Motor
Item Condition	Factory New
Item Number	01018ET3E215TC-W22
Length Less Shaft	16 1/8 in
Manufacturer	WEG Electric, WEG, WEG .
Manufacturer Part Number	01018ET3E215TC-W22
Manufacturers Warranty .	3 yr
Material	Cast Iron, HAWA
MFG Part #:	01018ET3E215TC-W22
Model	11610354
Motor Application	General Application
Motor Design	3-Phase
Motor Enclosure Design	TEFC
Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal
Motor Mounting Type	FOOT
Motor Service Factor	1.25
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Mounting	Foot Mount, Foot-mounte.
Mounting Type	Foot Mount, C-Face Foot.
Mpn	01018ET3E215TC-W22
Nameplate RPM	1800
NEMA Frame	215TC
Net Weight	182 lbs
Nominal Voltage	208 VAC
Number of Poles	4
Number of Speeds	1
On Hand:	In Stock - Available fo.
Output Rating	10 hp
Overall Length	19.517
Part Number	01018ET3E215TC-W22
Phase	3, 3 ph, Three
Product Type	General Purpose
Rotation	CW/CCW
RPM	1760, 1,800 RPM, 1800
RPM Range	1,701-1,800
Service Factor	1.25
Shaft Dia.	1 3/8 in
Shaft Length	3 3/8 in
Shaft Size	1-3/8 in Dia x 3-3/8 in.
SKU	ZO-G2986322
Speed (RPM)	1800
Standard	NEMA MG-1
Standards	CE, CSA, NOM, UL
SubCategory	Motors/Ac Motors
Supplier:	WEG ELECTRIC CORP
Synchronous Speed	1800 rpm
Terminal Box	Left position
UPC:	7891327535374
Voltage	230/460//380 V, 230/460.
Voltage (AC)	208 VAC
Voltage Compatibility	200-230/440V AC, 200-23.
Volts	208/230/460
Weight	187.670000

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
electricmotorwholesale.com	01018ET3E215TC-W22	787.0	1	In Stock		WEG	179.0	787.0 @ 1
AmazonTP	B00BC8L5C6	828.54	1	In Stock	5	WEG		828.54 @ 1
vfds.com	01018ET3E215TC-W22	949.0	1	In Stock		WEG		949.0 @ 1
Walker Industrial	01018ET3E215TC-W22	993.75	1	In Stock	17	WEG		993.75 @ 1
motorsandcontrol.com	01018ET3E215TC-W22	993.75	1	4		WEG Electric	196.0	993.75 @ 1
kscdirect.com	WEG 01018ET3E215TC-W22	1017.56	1	In Stock		WEG ELECTRIC CORP		1017.56 @ 1
Radwell	01018ET3E215TC-W22	1050.0	1	2		WEG		1050.0 @ 1
MRO Supply	1312251	1060.0	1	In Stock		WEG		1060.0 @ 1
Dealers Electric	01018ET3E215TC-W22	1088.78	1	In Stock		Weg	196.0	1088.78 @ 1
Zoro	G2986322	1108.75	1	20		Weg	176.0	1108.75 @ 1
industrialrefrigerationparts.com	01018ET3E215TC-W22	1142.92	1	In Stock		WEG	187.67	1142.92 @ 1
Galco	01018ET3E215TC-W22-WEG	1166.0	1	7		WEG Electric	182.0	1166.0 @ 1
Airline Hydraulics	WEG 01018ET3E215TC-W22	1365.98	1	In Stock		WEG		1365.98 @ 1
simsupply.com	ZO-G2986322	1419.72	1	In Stock		Weg		1419.72 @ 1
Purvis	01018ET3E215TC-W22	1470.76	1	In Stock		WEG		1470.76 @ 1
sustainablesupply.com	C1566526	1699.51	1	In Stock		WEG	176.0	1699.51 @ 1
National Supply Network	B873578	1699.59	1	In Stock		Weg Electric Motors		1699.59 @ 1
Raptor Supplies	AE8TCE	1868.968998	1	In Stock		WEG		1868.968998 @ 1
