- mpnCNMG432MS
- brandname: WIDIA
- manufacturername: WIDIA

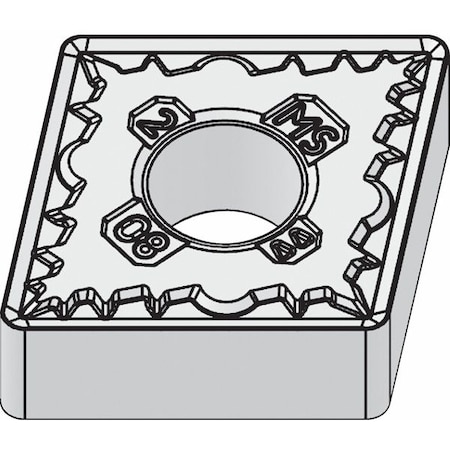

WIDIA CNMG432MS WS25PT Victory CNMG-MS High Performance Turning Inserts, Carbide, 0.031" / 0.79mm Radius, Medium High-Temp, Grade WS25PT (Pack of 5)
- Brand: WIDIA
- PartNumber: 5908746
- Model: 5908746
- Size: 0.031" / 0.79mm Radius
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| ANSI Code | CNMG432MS |
| Cast Iron (K) Compatibi. | Yes |
| Chip-Breaker | Yes, MS |
| Chip-Breaker Code | MS |
| Chip-Breaker Style | On Two Sides |
| Clearance Angle | 0 Degrees |
| Coating | AlTiSiN |
| Coolant Fed | Non-Coolant Through |
| Corner Radius | 2, 1/32 in |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.90mm |
| Finish - Machining | AlTiSiN |
| Grade | WS10PT |
| Included Angle | 80 Degrees |
| Inscribed Circle | 0.500", 4 |
| Insert Application | Medium |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 432 |
| Insert Style | CNMG |
| ISO Number | CNMG120408MS |
| Item | Turning Insert, Diamond. |
| Manufacturer Grade | WS10PT |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| No. of Edges | 8 |
| Non Ferrous (N) Compati. | Yes |
| Nose Radius | 0.031" |
| Number of Cutting Edges | 8 |
| Primary Material Applic. | Nickel, Stainless Steel. |
| Primary Material Applic. | M, S |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Seat Size | 432 |
| Secondary Material Appl. | Aluminum, Brass, Bronze. |
| Secondary Material Appl. | K, N, P |
| Shape | Rhombic |
| Steel (P) Compatibility | Yes |
| Thickness | 3/16 in |
| Workpiece Compatibility | Cast Iron (K), Nonferro. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | WID5908745 | 15.51047422 | 1 | 10 | | WIDIA | 0.225 | 15.51047422 @ 10 |
 | Zoro | G2818352 | 64.25 | 1 | 92 | | Widia | 0.02 | 64.25 @ 10 |
