Ametek 4M951

B001KUW2UA

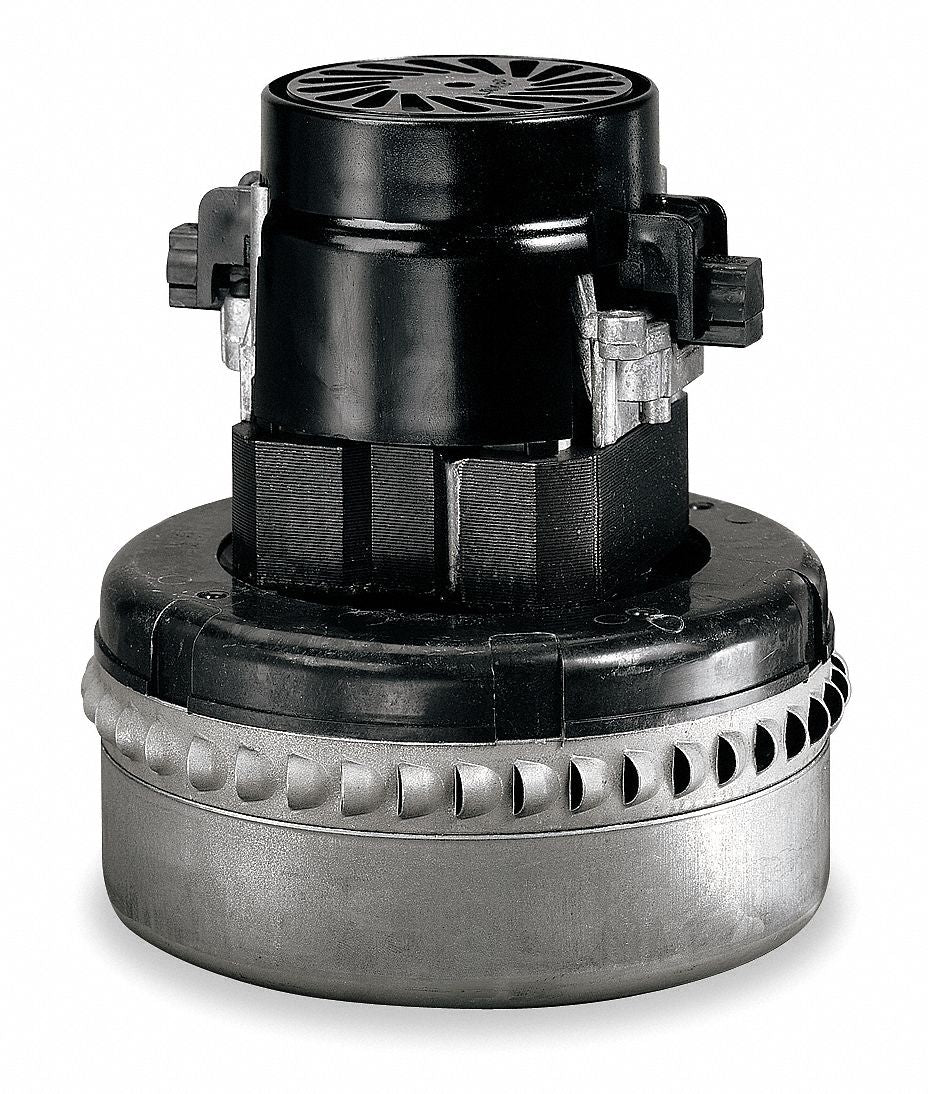

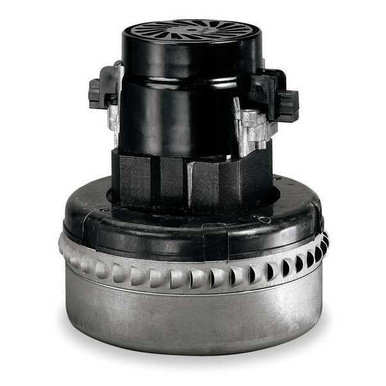

Ametek Lamb Vacuum Blower / Motor 240 Volts 116354-00

Ametek Lamb Vacuum Blower / Motor 240 Volts 116354-00zoom

Attributes

Key Value
Air Flow129 CFM
Ambient Temperature40 Degrees C
Average Life500 hr
Bearing TypeBall
BearingsBall
Blower Stages2
Blower TypeVacuum
Body Dia.5.7 in
BrandAMETEK
CFM @ 2-In. Orifice128.7 cfm
Current Stock22
DischargePeripheral Bypass
DutyIntermittent
Duty CycleIntermittent
Fan Size5.7 In.
FrameNon-Standard
Full Load Amps6.4
Hz60/50
Inlet Tube Dia.Not Applicable
Input Power389 W
Ins. ClassA
International ShippingNo
ItemVacuum Motor
Lead TimeExpected to ship in 1-2.
Max. Air Watts391 W
Max. Ambient Temp.40 Degrees C
Max. Amps4 A
Motor ApplicationUniversal AC/DC Motor
Motor BearingsBall
Motor DesignUniversal AC/DC
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen
Motor Mounting PositionAll Angle
Motor Mounting TypeLug
Motor Thermal ProtectionNone
Motor/Blower TypeBypass
Mounting Bracket Materi.Aluminum
Mounting BracketsThermoset
Mpn116354-00
Nameplate RPM24,515
No. of Speeds1
Nominal Voltage240 V
Overall Height7 in
Overall Length7 1/16 in
PhaseSingle
Primary TypeMotors
Replacement BrushesMfr. No. 33508, 2UV65
SKUZO-G1164886
Speed18154 RPM
StandardsUL Recognized (E47185),.
SubCategoryMotors/Ac Motors
TypeVacuum Motor
Vacuum (H2O Sealed)97.8
Vacuum Rating100.4
Voltage240V AC
Voltage Rating240 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1164886128.99117Ametek Lamb5.8128.99 @ 1
us.rs-online.com70252274144.66135AMETEK LAMB144.66 @ 1
thumbzoomsustainablesupply.comC1561019145.321In StockAmetek Lamb5.8145.32 @ 1
thumbzoomsimsupply.comZO-G1164886152.75122AMETEK152.75 @ 1
AmazonTPB00GRKSQSU175.751In Stock5Ametek Lamb175.75 @ 1
grainger.caWWG4M951212.494222621In StockAMETEK LAMB5.8212.49422262 @ 1
thumbzoomRaptor SuppliesAD8TKJ241.6828051In StockAMETEK LAMB241.682805 @ 1
