Ametek 4M934

B001KUUBBM

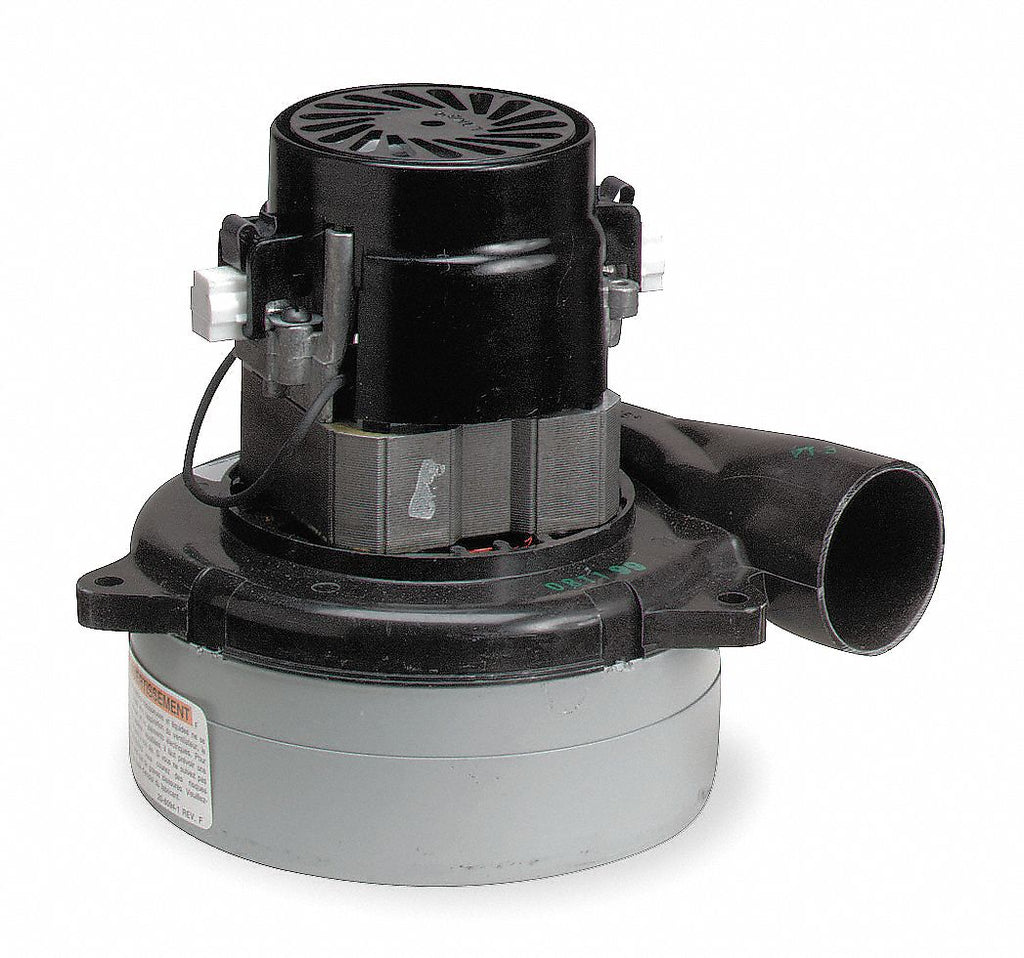

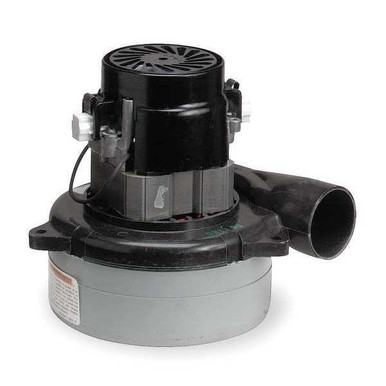

Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek

Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustekzoom

Attributes

Key Value
Air Flow107 CFM
Ambient Temperature40 Degrees C
Average Life500 hr
Bearing ProtectionAir Sealed
Bearing TypeBall
Blower Stages2
Blower TypeVacuum
Body Dia.5.7 in
BrandAMETEK
CFM @ 2-In. Orifice106.6 cfm
Current Stock97
DischargeTangential Bypass
DutyIntermittent
Duty CycleIntermittent
Fan Size5.7 In.
Footnotes69, 72
FrameNon-Standard
Full Load Amps4.7
Hz60/50
Inlet Tube Dia.1 7/8 in
Input Power317 W
Ins. ClassA
International ShippingNo
ItemVacuum Motor
Lead TimeExpected to ship in 1-2.
Max. Air Watts315 W
Max. Ambient Temp.40 Degrees C
Max. Amps4.7 A
Motor ApplicationUniversal AC/DC Motor
Motor BearingsBall
Motor DesignUniversal AC/DC
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen
Motor Mounting PositionAll Angle
Motor Mounting TypeLug
Motor Thermal ProtectionNone
Motor/Blower TypeBypass
Mounting Bracket Materi.Aluminum
Mounting BracketsThermoset
Mpn116420-13
Nameplate RPM23,806
No. of Speeds1
Nominal Voltage240 V
Overall Height6 15/16 in
Overall Length7 1/16 in
PhaseSingle
Primary TypeMotors
Replacement Brushes2UV65, 152F63, Mfr. No..
SKUZO-G1348636
Speed18623 RPM
StandardsUL recognized, category.
SubCategoryMotors/Ac Motors
TypeVacuum Motor
Vacuum Rating92.1
Voltage240V AC
Voltage Rating240 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007I9UBCS107.161In Stock1AMETEK LAMB107.16 @ 1
thumbzoomZoroG1348636124.991168Ametek Lamb5.75124.99 @ 1
us.rs-online.com70252279127.73132AMETEK LAMB127.73 @ 1
thumbzoomsimsupply.comZO-G1348636152.75197AMETEK152.75 @ 1
Grainger4M934160.141246AMETEK LAMB160.14 @ 1
thumbzoomsustainablesupply.comC1561010160.271In StockAmetek Lamb5.75160.27 @ 1
AmazonSCB01ER6RNO8165.461In StockAmetek-Motors1.0165.46 @ 1
grainger.caWWG4M934193.804718121In StockAMETEK LAMB5.75193.80471812 @ 1
thumbzoomRaptor SuppliesAD8TJZ197.6368681In StockAMETEK LAMB197.636868 @ 1
