- mpnAFM3529
- brandname: Baldor
- manufacturername: Baldor

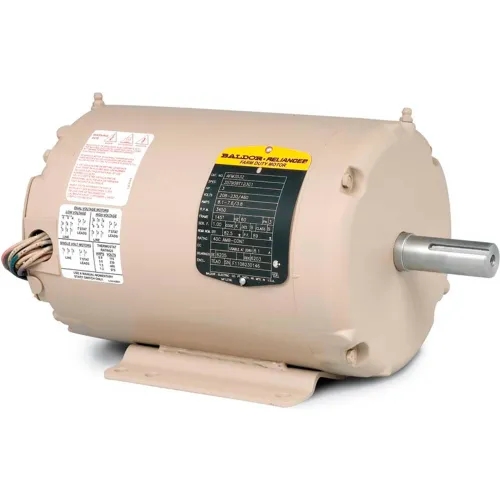

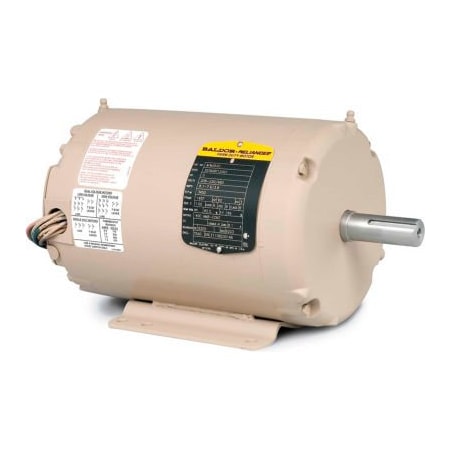

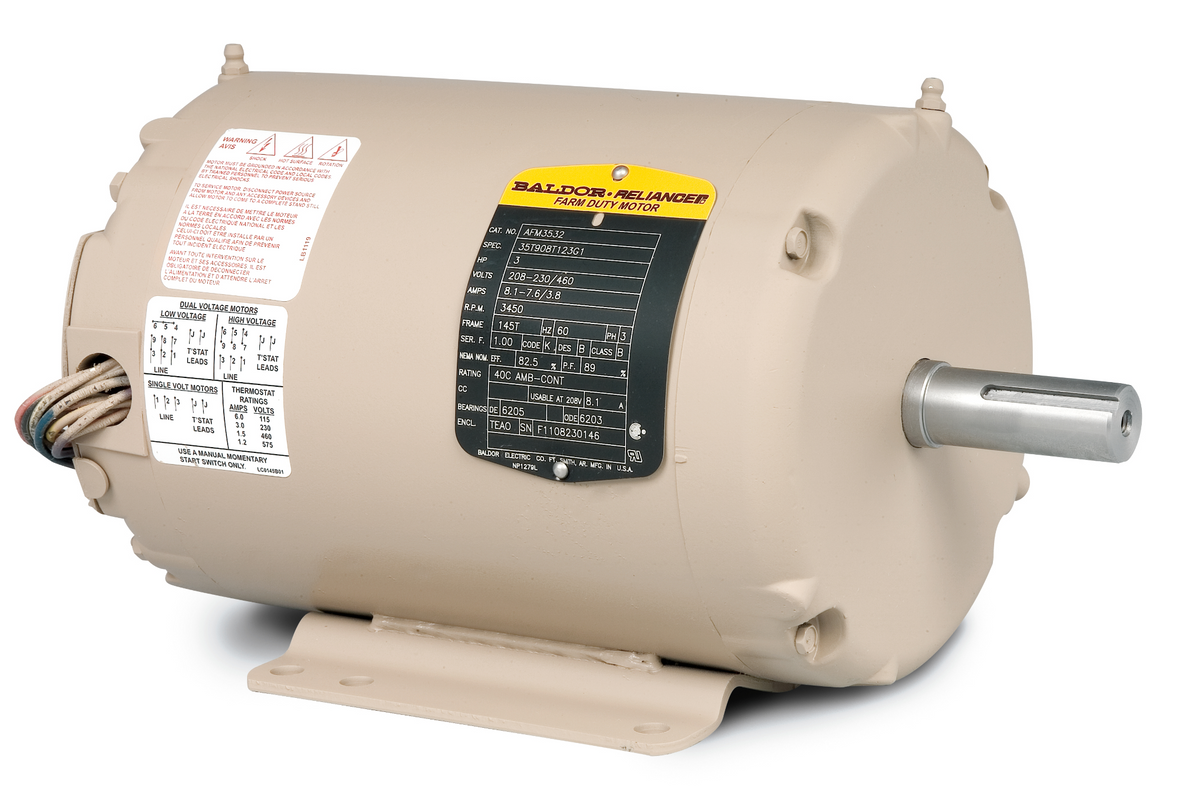

(AFL3529) 1 Hp 230/460 Vac 3 Phase 56Z Frame 3600 Rpm TEAO
- Brand: Baldor Electric
- PartNumber: AFM3529
- PackageQuantity: 1
- Manufacturer: Baldor Electric
- Label: Baldor Electric
Attributes
| Key | Value |
|---|
| Amps | 3.6/4.1/1.8 |
| Bearing Type | Ball |
| Bearings | Sealed |
| Composition | Steel |
| Construction | Aluminum |
| Country of Origin (subj. | United States |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Efficiency % | 75.5 % |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 22.00 |
| Family Series | Baldor Motors, AF Series |
| FL Amps | 3.6/1.8 |
| FL Efficiency | 75.5 |
| Frame | 56Z |
| Gross Weight | 23 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | B |
| Inverter Duty | No |
| Item Number | AFM3529 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 34K62-282 |
| Manufacturer Part Number | AFM3529 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Foot Mount, Rigid |
| NEMA Frame | 56Z |
| Net Weight | 23 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Speeds | 1 |
| Overall Length | 10.97", 10.97 " |
| Overload Protection | None |
| Part Number | AFM3529 |
| Phase | 3 |
| Product Series | AF |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3450, 3400 - 3600, 3,60. |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625" |
| Ship Weight | 22 lbs. |
| Speed (RPM) | 3450 |
| Voltage | 230V, 460V, 230/460 |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | AFM3529 | 411.22 | 1 | In Stock | | Baldor | 22.0 | 411.22 @ 1 |
| factorysupplyoutlet.com | ZA80OD | 450.46 | 1 | In Stock | | Baldor-Reliance | | 450.46 @ 1 |
 | Walker Industrial | AFM3529 | 455.01 | 1 | In Stock | | Baldor | | 455.01 @ 1 |
 | Galco | AFM3529-BLDR | 455.01 | 1 | In Stock | | Baldor | 23.0 | 455.01 @ 1 |
| kirbyrisk.com | 2097983 | 455.01 | 1 | In Stock | | Baldor | | 455.01 @ 1 |
 | Global Industrial | WBB388651 | 456.95 | 1 | In Stock | | Baldor-Reliance | | 456.95 @ 1 |
| motorsandcontrol.com | AFM3529 | 473.97 | 1 | In Stock | | Baldor Reliance | 22.0 | 473.97 @ 1 |
 | motionindustries.com | 00552032 | 498.82 | 1 | In Stock | | Baldor-Reliance | | 498.82 @ 1 |
| us.rs-online.com | 72514589 | 517.1 | 1 | In Stock | | Baldor-Reliance | | 517.1 @ 1 |
 | pumpproducts.com | AFM3529 | 539.0 | 1 | In Stock | | Baldor | | 539.0 @ 1 |
 | cbtcompany.com | AFM3529 | 539.18 | 1 | In Stock | | Baldor Reliance | | 539.18 @ 1 |
 | Zoro | G104934246 | 929.0 | 1 | In Stock | | Baldor-Reliance | | 929.0 @ 1 |
 | Raptor Supplies | AJ6NUF | 1355.2226415 | 1 | In Stock | | BALDOR MOTOR | | 1355.2226415 @ 1 |
