Baldor-Reliance CDP3605

B08J7V1L8Z

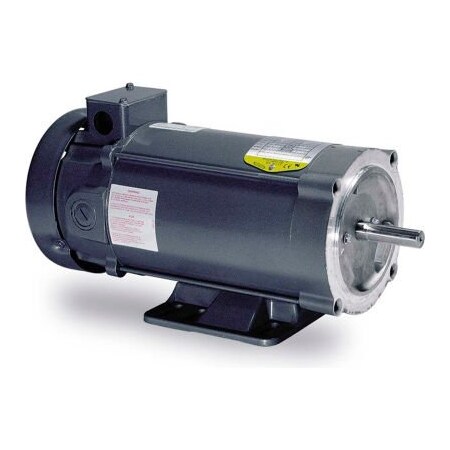

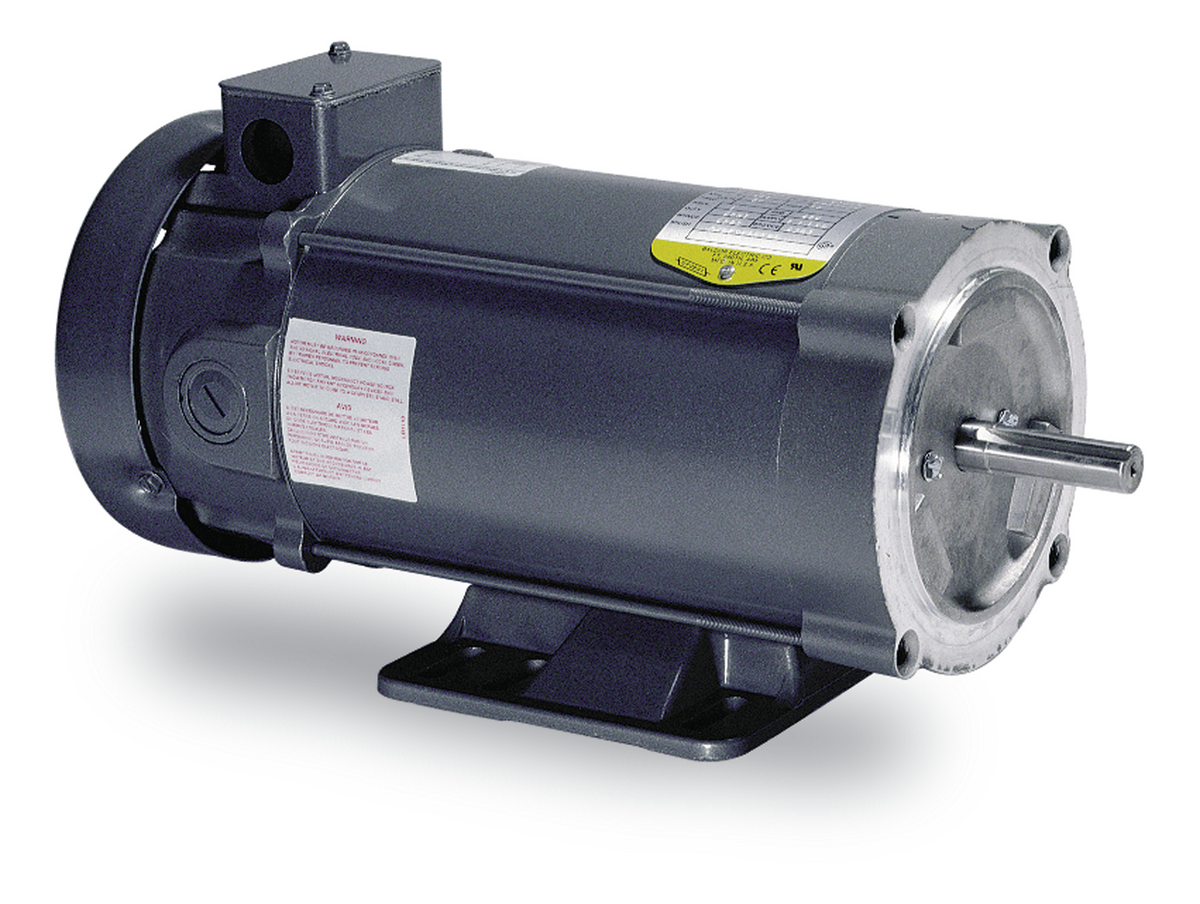

Baldor-Reliance CDP3605 DC Electric Motor - Permanent Magnet, Brushed, 5 hp hp, 180 V, 1750 rpm, TEFC (Totally Enclosed Fan Cooled), 1810ATC Frame

Baldor-Reliance CDP3605 DC Electric Motor - Permanent Magnet, Brushed, 5 hp hp, 180 V, 1750 rpm, TEFC (Totally Enclosed Fan Cooled), 1810ATC Framezoom

Attributes

Key Value
Amps21.6
ApprovalsCSA, UL
Armature Current21.6 A, 21.6
Armature Voltage180 V
Base RPM1,750 RPM
BearingsSealed
Country of Origin (subj.United States
CT Speed Range20:1
Drive End Flange TypeC-Face
Duty CycleContinuous
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight161.00
Family SeriesBaldor Motors, PERMANEN.
Frame1810ATC
Gross Weight161 lbs
Horsepower5 hp
HP5
Insulation ClassH
Item NumberCDP3605
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #36P179Z543
Manufacturer Part NumberCDP3605
Maximum Ambient Tempera.40? C
MountingFoot Mount, Rigid
Mounting TypeC-Face Removable Base
Net Weight161 lbs
Overall Length27.83"
Part NumberCDP3605
PhaseDC
Product SeriesPERMANENT MAGNET SCR
Product TypeDC, General Purpose
RotationReversible
RPM1750
Service Factor1.00
Shaft Diameter1.125"
Ship Weight161 lbs.
Speed (RPM)1750
Voltage180V, 180
Volts180VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comCDP36054034.6215BALDOR4034.62 @ 5
AmazonTPB07FN18PR74203.01153Baldor Electric4203.01 @ 5
thumbzoomMRO Supply232405090.5815Baldor5090.58 @ 5
thumbzoomemotorpro.comCDP36055367.3815Baldor161.05367.38 @ 5
steinerelectric.com4212865839.515Baldor-Reliance5839.5 @ 5
factorysupplyoutlet.comXF35CV5924.1715Baldor-Reliance5924.17 @ 5
thumbzoomGalcoCDP3605-BLDR5939.0115Baldor161.05939.01 @ 5
thumbzoomWalker IndustrialCDP36055939.0215Baldor5939.02 @ 5
thumbzoomGlobal IndustrialWBB3888975999.015Baldor-Reliance5999.0 @ 5
motorsandcontrol.comCDP36056186.4715Baldor Reliance161.06186.47 @ 5
thumbzoomPurvisCDP36056263.9815Baldor-Reliance6263.98 @ 5
us.rs-online.com725125156372.1615Baldor-Reliance6372.16 @ 5
thumbzoomapexindustrialautomation.comCDP36056852.7115Baldor-Reliance6852.71 @ 5
thumbzoompumpproducts.comCDP36057025.3315Baldor7025.33 @ 5
cbtcompany.comCDP36057037.7415Baldor Reliance7037.74 @ 5
kirbyrisk.com20746717787.1715Baldor7787.17 @ 5
motionindustries.com005344079406.015Baldor-Reliance9406.0 @ 5
thumbzoomZoroG60517443110780.9115Baldor-Reliance10780.91 @ 5
thumbzoomRaptor SuppliesAJ6PCH17689.069534515BALDOR MOTOR17689.0695345 @ 5
