Belden 6502FE 8771000

B075X9MXQS

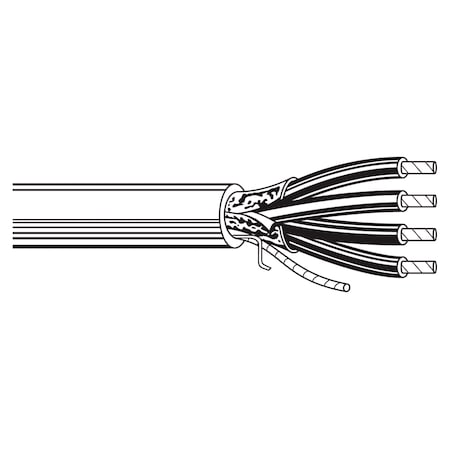

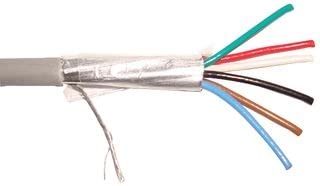

Belden 6502FE, Plenum Commercial Application Multi-Conductor Cable

Belden 6502FE, Plenum Commercial Application Multi-Conductor Cablezoom

Attributes

Key Value
ApplicationFor security systems, i.
Cable external diameter3.73mm
Cable TypeSecurity
Conductor MaterialBare Copper (BC)
ConfigurationConductors
ConformsUL 910
Core diameter22AWG
Core markingcolours without colour .
Core structurestranded
Country of Origin (subj.Unknown
CPR standardE
Earth corenone
InformationThe UL Label and Mark o.
Insulation MaterialLow Smoke Polyvinyl Chl.
Jacket ColorNatural
Jacket MaterialPolyvinyl Chloride - Lo.
Kind of coreCu
Length1000 ft
ManufacturerBELDEN
Number of Conductors4
Number of cores4
Operating temperature0...75?C
Outer Diameter0.147 in.
Package contents305m
PackagingCoil
Product HeaderNew Generation Security.
Rated voltage300V
Series6502FE Series
Shield MaterialAluminum/Polyester Tape
Shield structureAl-PET foil
ShieldingFoil
StandardsUL NEC/cUL CEC ; EU CE
Stranding7x30
Temperature, Rating0 to 75 C
Type of wirecontrol cable
Wire insulation materialPVC
Wire Size22 AWG
