Burndy YA29L4

B002FYG4X6

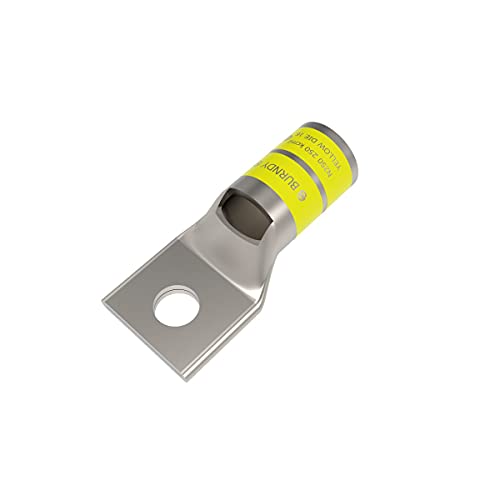

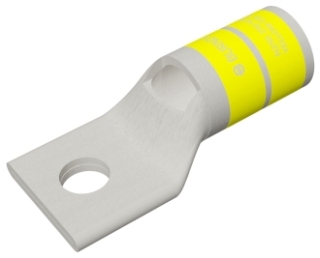

Burndy YA29L4 One Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 250 kcmil Conductor, 3/8" Stud Hole Size, 1.11" Tongue Width, 2.42" Length

Burndy YA29L4 One Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 250 kcmil Conductor, 3/8" Stud Hole Size, 1.11" Tongue Width, 2.42" Lengthzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalApproval
ApprovalsCSA, UL
Barrel LengthBarrel Length
BrandBurndy-US, a Hubbell af.
Catalog NumberYA29L4
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorYellow
Color CodeYellow
Color FamilyYellow
Conductor - Copper DLO .N/A
Conductor - Copper Str .250 (61) Navy
Conductor - Copper Str .250 (61) Navy
Conductor - Copper Str .250 kcmil
Conductor - Copper Str .250 kcmil
Conductor - MaterialCopper
Conductor MaterialConductor Material
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Cross Reference ProductsCSWS-250-38, GL25038, 5.
Die ColorYellow
Die IndexDie Index, 16
Dimension - B Length fr.1-1/16 in
Dimension - B Length in.1.06 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.3/8
Dimension - D inch0.83 in
Dimension - Hole Size mm10 mm
Dimension - L Length Ov.61 mm
Dimension - Length Over.2.42 in
Dimension - N inch0.41 in
Dimension - Outside Dia.0.75 in
Dimension - Pad Width i.1.11 in
Dimension - Strip Lengt.1-1/8
Dimension - Stud Size f.3/8
Dimension - Stud Size i.3/8
Dimension - Z inch0.42 in
ECCNEAR99
EU RoHS IndicatorYes
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel TypeStandard
FinishTin-Plated
Finish TypeTin-Plated
Gross Weight0.12 lbs
GTIN00781810554524
Industry Standard(s)UL 486A-486B
InsulatedNon-Insulated
Item NumberYA29L4
Item TypeStandard Barrel, Tin Pl.
Lug Wire Size250 kcmil
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA29L4
MaterialCopper
Net Weight0.12 lbs
Number of HolesNumber of Holes
Overall LengthOverall Length
Pad SizePad Size
Physical Attribute - Nu.1
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYA
Rating - KVA35 kV
RoHS CompliantYes
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Standards - Industry St.UL467
Standards - RoHS Compli.CM
Stud SizeStud Size, 3/8 in.
Sub BrandHYLUG
Terminal MaterialCopper
Terminal TypeRing
Tongue Width1.11 "
Trade NameHYLUG
TypeStandard Barrel, Tin Pl.
UL ListedYes
UNSPSC39121405
UPC781810554524
UPC Code781810554524
UPC IDUPC ID
Voltage - Maximum35000
Voltage Rating35, 35 kV, Voltage Rati.
Wire Size250 kcmil, Wire Size
Wire Size (kcmil)250 kcmil
Wire Strip Length1.125 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesYA29L410.281169Burndy10.28 @ 1
thumbzoomgordonelectricsupply.comYA29L410.551In StockBURNDY10.55 @ 1
thumbzoommecampbell.comBURYA29L411.061In Stock36Burndy11.06 @ 1
thumbzoomZoroG60243815414.571In Stock59Burndy14.57 @ 1
thumbzoomGalcoYA29L4-BURN16.851In StockBurndy0.1216.85 @ 1
thumbzoomusmegastore.comYA29L418.51In StockBurndy18.5 @ 1
kirbyrisk.com179144120.921In StockBurndy20.92 @ 1
Graybar9102764022.59041In StockBurndy22.5904 @ 1
us.rs-online.com7148707224.691In StockBURNDY24.69 @ 1
thumbzoomcrescentelectric.com15152131.931In StockBurndy-US, a Hubbell affiliate31.93 @ 1
