Burndy YA39A7

B00CBNZHF2

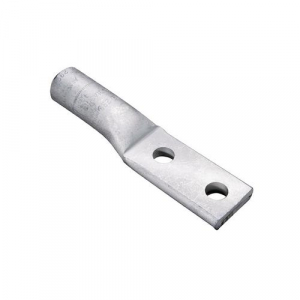

Burndy YA39A7 Hylug Uninsulated Compression Terminal, 2 Holes, 700/750 kcmil, 900 Compact AL Conductor, 2.05" Width, 5.81" Length (Pack of 10)

Burndy YA39A7 Hylug Uninsulated Compression Terminal, 2 Holes, 700/750 kcmil, 900 Compact AL Conductor, 2.05" Width, 5.81" Length (Pack of 10)zoom

Attributes

Key Value
Color CodeYellow
Color FamilyYellow
Conductor - AL Str Size700 kcmil;715 kcmil;750.
Conductor - AL Str Size.700 kcmil - 750 kcmil
Conductor - Copper Str .700 kcmil;750 kcmil
Conductor - Copper Str .700 kcmil - 750 kcmil
Connector TypeTerminal
Country of OriginUS - United States
Die ColorYellow
Die Index936
Dimension - B Length fr.2-7/16 in
Dimension - B Length in.2.46 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.3/8
Dimension - D inch1.89 in
Dimension - Hole Size i.0.44 in
Dimension - Hole Size mm11 mm
Dimension - L Length Ov.148 mm
Dimension - Length Over.5.81 in
Dimension - N inch0.44 in
Dimension - Outside Dia.1.46 in
Dimension - Pad Width i.2.05 in
Dimension - Strip Lengt.2 7/8
Dimension - Stud Size f.3/8"
Dimension - Stud Size i.3/8
Dimension - Thread Size3/8
Dimension - Z inch0.45 in
ECCNEAR99
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
FinishElectro Tin-Plated
Lug Wire Size750 kcmil
MaterialAluminum
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating TypeTin - Electro Plated
Rating - KVA35 kV
Stud Hole Spacing1 in.
Stud Size3/8 in.
Temperature Rating194
Trade NameHYLUG
UPC781810033982
UPC 12 Digit7818100339822
Use WithAluminum, Copper
Voltage - Maximum35000
Wire Size750 kcmil

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.comYA39A7114.2110Burndy114.2 @ 10
Graybar92133744131.3312110Burndy131.3312 @ 10
