Burndy YAV2CL-TC516-FX

B008SDHZBI

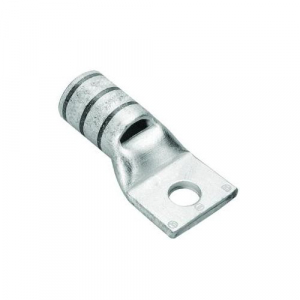

BURNDY YAV2CL-TC516-FX Lug Compression 5/16IN Stud Brown Short Barrel

BURNDY YAV2CL-TC516-FX Lug Compression 5/16IN Stud Brown Short Barrelzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYAV2CLTC516FX
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorBrown
Color CodeYellow
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Str .250 kcmil
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Country of Origin (subj.Unknown
Die Index16
Dimension - B Length fr.1 in
Dimension - B Length in.1.03 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.3/8
Dimension - Hole Size i.0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Ov.61 mm
Dimension - Length Over.2.42 in
Dimension - N inch0.41 in
Dimension - Outside Dia.0.80 in
Dimension - Pad Width i.1.18 in
Dimension - Strip Lengt.1-1/16
Dimension - Stud Size i.5/16
Dimension - Thread Size5/16
Dimension - Z inch0.42 in
ECCNEAR99
Family SeriesBurndy Terminals, YAV-L.
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Gross Weight0.035 lbs
InsulatedNon-Insulated
Item NumberYAV2CLTC516FX
Item TypeStandard Barrel, Tin Pl.
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYAV2CLTC516FX
MaterialCopper
Max Temp194 ?F
Net Weight0.035 lbs
Physical Attribute - Nu.1
Physical Attribute - To.Straight
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin
Product SeriesYAV-L-FX
Rating - KVA35 kV
Rating - Minimum Voltage600
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Standards - RoHS Compli.CM
Stud Size5/16 "
Sub BrandHYLUG
Terminal MaterialCopper
Terminal TypeBarrel - Standard
Tongue Width0.68 "
TypeStandard Barrel, Tin Pl.
UL ListedYes
UNSPSC39121405
UPC781810022412
UPC Code781810022412
Voltage - Maximum35000
Voltage Rating35
Volts600 V
Wire Size2 AWG
Wire Size (AWG)2 AWG
Wire Strip Length0.6875 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG12391848.0315In StockBurndy8.03 @ 15
thumbzoomMegadepotYAV2CLTC516FX9.711In StockBurndy9.71 @ 1
thumbzoomusmegastore.comYAV2CLTC516FX9.711In StockBurndy9.71 @ 1
Graybar9501311411.704114Burndy11.704 @ 1
us.rs-online.com7149582813.12110BURNDY13.12 @ 1
thumbzoomGalcoYAV2CLTC516FX-BURN13.721In StockBurndy0.03513.72 @ 1
thumbzoomcrescentelectric.com2585714.821In StockBurndy-US, a Hubbell affiliate14.82 @ 1
