Century F1056S

B071J2LB96

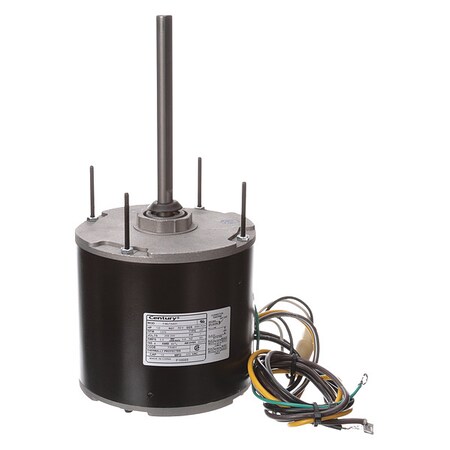

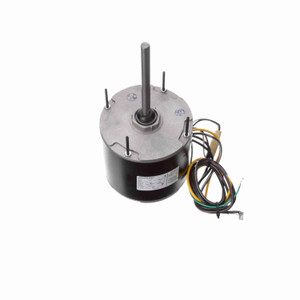

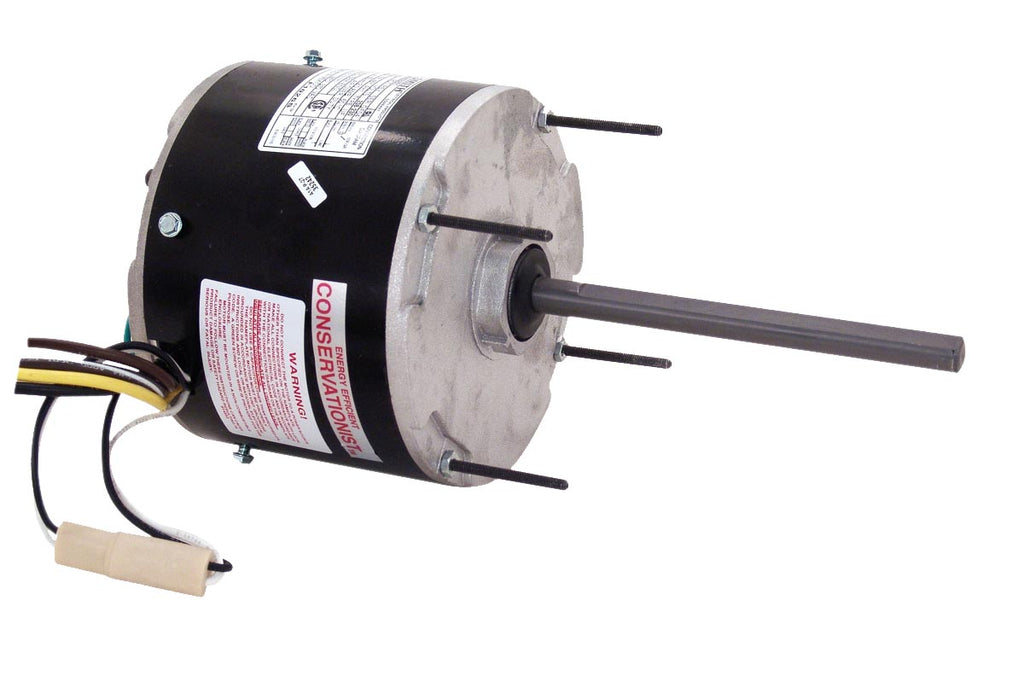

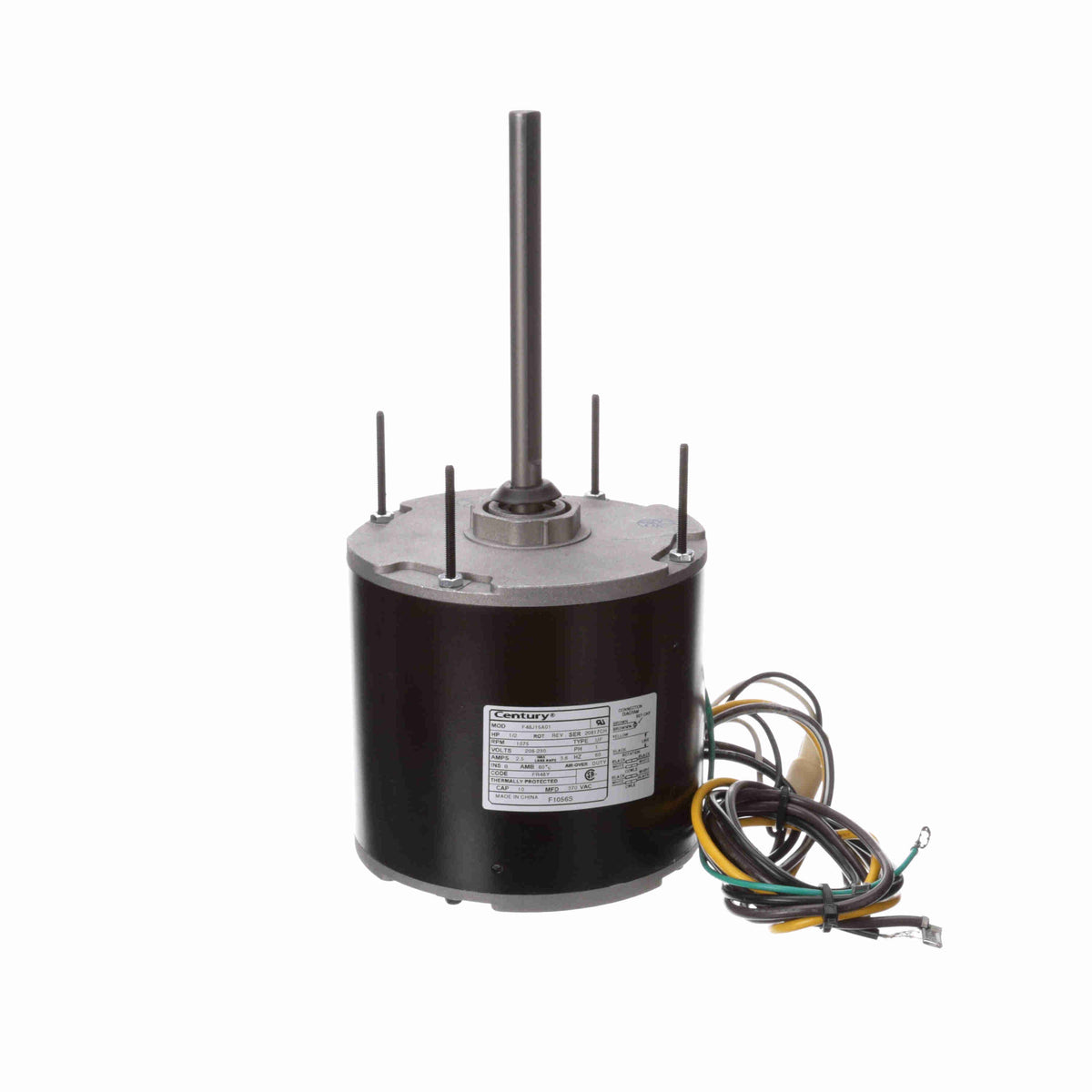

Century Motors Condenser Fan, Heat Pump, Refrigeration Motor #F1056S

Century Motors Condenser Fan, Heat Pump, Refrigeration Motor #F1056Szoom

Attributes

Key Value
Amps2.5
Batteries Included?No
Batteries Required?No
BearingsBall
BrandCentury
C-Dimemsion11.99 (in.)
Capacitor10MFD @ 370VAC Required
Catalog NumberF1056S
CEN
CSAY
Date First AvailableMay 23, 2017
DE Bearing TypeBall
DEM ReferenceNOHP
DutyAir Over
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
EnclosureSemi Enclosed
Enclosure TypeODP (Open Dripproof)
F1056S is listed in Cen.Rheem/Protech 512305212.
Frame48Y
Frame MaterialRolled Steel
Frequency60
HP1/2
Hz60
Insulation ClassB
IP Code-
Is Discontinued By Manu.No
Item5-5/8in. Dia. Outdoor F.
KVA Code-
ManufacturerCentury
Max Ambient60?C
Maximum Ambient Tempera.60? C
Motor Diameter5-5/8"
Motor OrientationAny
MountingBand/Ring/Stud
Mounting TypeExtended Studs
Number of Speeds1
ODE Bearing TypeBall
Part NumberF1056S
Phase1
Product CategoryHVAC/R Motors > Conden.
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
RotationReversible
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension6.4 (in.)
Shaft Length6.44"
Shaft TypeDouble Flat
Ship Weight16 lbs.
Shippingundefined (Fixed Shippi.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comF1056S191.311In StockAO Smith / Century16.0191.31 @ 1
thumbzoomZoroG0789665209.371In Stock20Century15.77209.37 @ 1
thumbzoomVoomi SupplyF1056S222.381In StockCentury Motors222.38 @ 1
thumbzoomemotorpro.comF1056S222.741In StockCentury16.0222.74 @ 1
thumbzoommidwestapplianceparts.comF1056S-AO-P226.831In StockAO Smith226.83 @ 1
thumbzoomsustainablesupply.comC2090828227.991In StockCentury15.0227.99 @ 1
thumbzoomDreisilkerCE-RBC-F1056S229.861In StockCentury229.86 @ 1
thumbzoomgsistore.comF1056S230.741In StockCentury Motors230.74 @ 1
thumbzoomhomeessentialsdirect.comF1056S238.931In StockCentury238.93 @ 1
hvacdiscountstore.comCEN--F1056S264.221In StockCENTURY MOTORS264.22 @ 1
thumbzoomptacsolutions.com735010332396.791In StockAO SMITH MAGNETEK396.79 @ 1
uri.comF1056S501.981In StockCentury18.0501.98 @ 1
