- mpnC15888
- brandname: CLEVELAND
- manufacturername: CLEVELAND

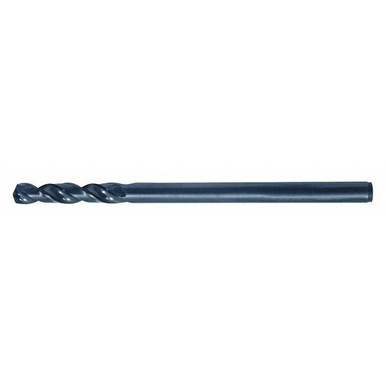

Cleveland 3780 Cobalt Steel Jobbers' Length Drill Bit, Short Flute, Black Oxide, Round Shank, 135 Degree Split Point, Wire Size #53 (Pack of 10)


- Brand: Cleveland
- PartNumber: C15888
- Model: C15888
- Size: #53
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
Key | Value |
---|
Applicable Materials | Alloy Steel, Carbon Ste. |
Application | Alloy Steel, Tool Steel. |
Bit Dia. | #53 |
Brand | Cleveland |
Coolant Fed | Non-Coolant Through |
Coolant Through | No |
Country of Origin (subj. | United States |
Current Stock | 11 |
Cutting Depth | 5/8 in |
Cutting Direction | Right Hand |
Cutting Edge Material | M42 HSS-Co 8 |
Decimal Equivalent | 0.0595, 0.0595" / 1.51mm |
Depth x Dia. Ratio | 4xD |
Depth:Dia. Ratio | 4xD |
Diameter Wire | 53 |
Drill Bit Dimension Type | Wire |
Drill Bit Finish | Black Oxide |
Drill Bit Grouping | Drill Bit |
Drill Bit Material | Cobalt |
Drill Bit Point Angle | 135 Degrees |
Drill Bit Point Type | Split Point |
Drill Bit Size | #53 |
Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
Drill Length Class | Jobber Length |
Drill Point Length | 0.0123 in |
Drill Size - Decimal In. | 0.0595 in |
Drill Size - Wire | #53 |
Drilling Length | 5/8" |
Finish | Black Oxide/Steam Oxide |
Finish - Machining | Black Oxide |
Flute Length | 5/8 in |
Flute Type | Spiral |
Grade | Heavy Duty |
Hand of Spiral Cut | RHS / RHC |
Helix Angle | 35 Degrees to 45 Degre. |
International Shipping | No |
Item | Jobber Length Drill Bit |
Length of Flute | 0.6250" / 15.88mm |
List Number | 3780 |
List Style | 3780 |
Material | M42 HSS-Co 8, HSS-CO 8%. |
Material - Machining | Cobalt |
Material Grade - Machin. | M42 |
Maximum Drilling Depth | 15/64 in |
Measurement System | Wire |
Mpn | C15888 |
Number of Flutes | 2 |
Number of Pieces | 0 |
Overall Length | 1.8750" / 47.63mm, 1 7/. |
Point | 135? Split |
Point Angle | 135 deg |
Point Type | Split Point, Split |
Primary Material Applic. | Aluminum, Brass, Bronze. |
Primary Material Applic. | K, M, N, P, S |
Series | 3780, Q-AMD? 3780 |
Shank | Straight |
Shank Dia. | 3/64 in |
Shank Length | 1 1/4 in |
Shank Shape | Straight |
Shank Size | 0.0595", 0.0595 in, 0.0. |
Shank Type | Straight |
Shank Type - Machining | Straight |
SKU | ZO-G3063678 |
Spiral Direction | Right Hand |
Standards | ASME B94.11M |
Style | 3780 |
SubCategory | Machining |
Surface Condition | Steam Oxide |
Tool Size | #53 |
Type | Type D Heavy Duty Jobbe. |
UPC | 697334158882 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | MRO Supply | 6111454 | 3.01 | 12 | 10 | | Cleveland | | 3.01 @ 12 |
  | usmegastore.com | C15888 | 3.13 | 1 | 10 | | Cleveland | | 3.13 @ 10 |
  | Megadepot | C15888 | 3.79 | 1 | 10 | | Cleveland | | 3.79 @ 10 |
  | Zoro | G3063678 | 4.13 | 1 | 10 | | Cleveland | | 4.13 @ 10 |
  | bscsource.com | C15888 | 4.59 | 1 | 10 | | Cleveland | | 4.59 @ 10 |
  | National Supply Network | 68302967 | 5.549 | 1 | 10 | | Cleveland | | 5.549 @ 10 |
  | Guardian | 68302967 | 6.02 | 1 | 10 | | Cleveland | | 6.02 @ 10 |
  | simsupply.com | ZO-G3063678 | 10.98 | 1 | 11 | | Cleveland | | 10.98 @ 10 |
