- mpnC15893
- brandname: CLEVELAND
- manufacturername: CLEVELAND

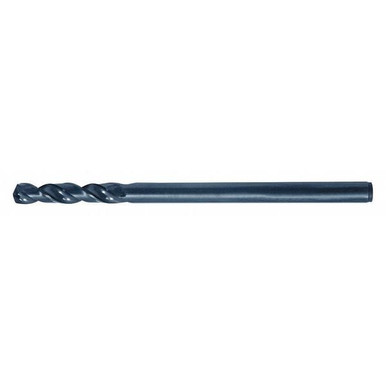

Cleveland 3780 Cobalt Steel Jobbers' Length Drill Bit, Short Flute, Black Oxide, Round Shank, 135 Degree Split Point, Wire Size #49 (Pack of 10)
- Brand: Cleveland
- PartNumber: C15893
- Model: C15893
- Size: #49
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | Alloy Steel, Tool Steel. |
| Bit Dia. | #49 |
| Brand | Cleveland |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 26 |
| Cutting Depth | 11/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.0730" / 1.85mm, 0.0730 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Wire | 49 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #49 |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0151 in |
| Drill Size - Decimal In. | 0.073 in |
| Drill Size - Wire | #49 |
| Drilling Length | 0.688" |
| Finish | Black Oxide/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 11/16 in |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 35 Degrees to 45 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Length of Flute | 0.6875" / 17.46mm |
| List Number | 3780 |
| List Style | 3780 |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 9/32 in |
| Measurement System | Wire |
| Mpn | C15893 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 2.0000" / 50.80mm, 2 in |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P, S |
| Series | 3780, Q-AMD? 3780 |
| Shank | Straight |
| Shank Dia. | 1/16 in |
| Shank Length | 1 5/16 in |
| Shank Shape | Straight |
| Shank Size | 0.0730" / 1.85mm, 0.073. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G3063757 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 3780 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | #49 |
| Type | Type D Heavy Duty Jobbe. |
| UPC | 697334158936 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111459 | 2.54 | 14 | 10 | | Cleveland | | 2.54 @ 14 |
 | usmegastore.com | C15893 | 2.67 | 1 | 10 | | Cleveland | | 2.67 @ 10 |
 | Megadepot | C15893 | 3.05 | 1 | 10 | | Cleveland | | 3.05 @ 10 |
 | Zoro | G3063757 | 3.49 | 1 | 10 | | Cleveland | 0.04 | 3.49 @ 10 |
 | bscsource.com | C15893 | 4.19 | 1 | 10 | | Cleveland | | 4.19 @ 10 |
 | Guardian | 68302918 | 5.08 | 1 | 10 | | Cleveland | | 5.08 @ 10 |
 | National Supply Network | 68302918 | 5.389 | 1 | 10 | | Cleveland | | 5.389 @ 10 |
 | simsupply.com | ZO-G3063757 | 9.21 | 1 | 26 | | Cleveland | | 9.21 @ 10 |
