Corbin Russwin CL3351 AZD 605 CL6

mpnCL3351 AZD 605 CL6
brandname: Corbin Russwin
manufacturername: Corbin Russwin

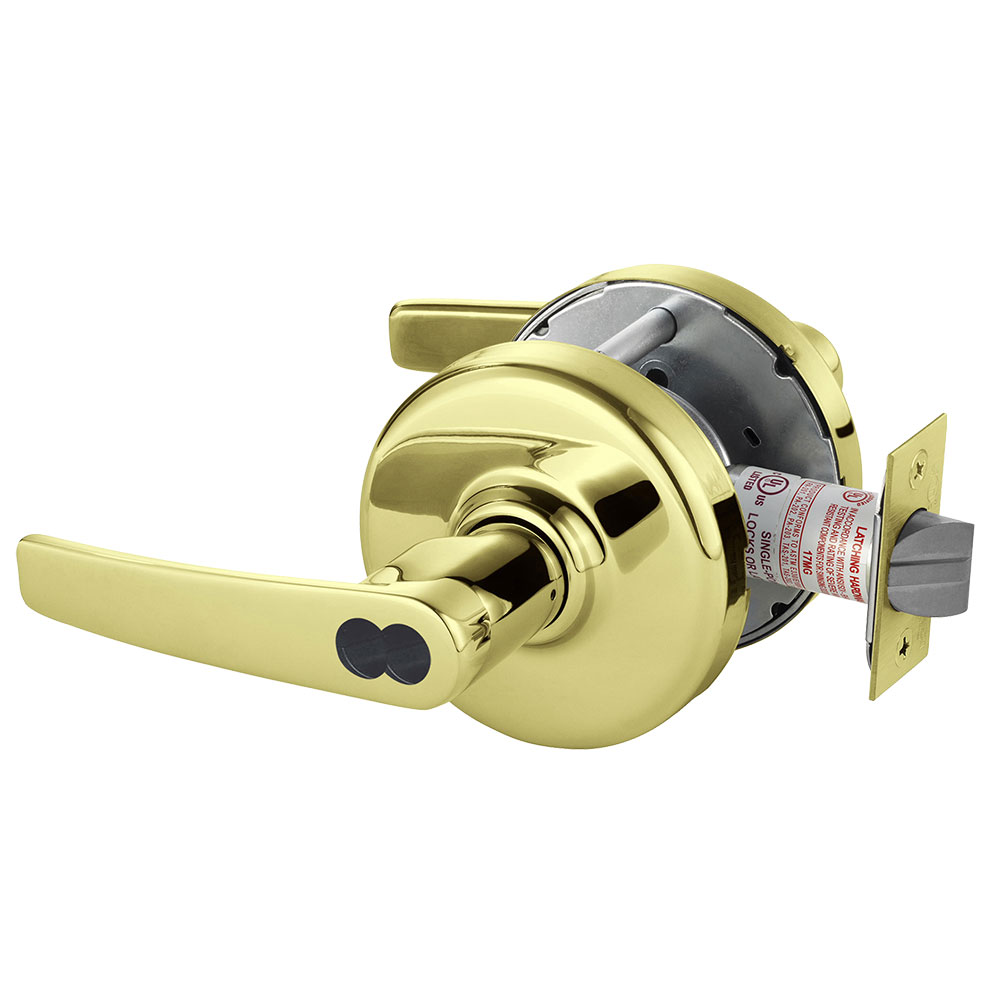

Corbin Russwin CL3351 AZD 605 CL6 Cylindrical Lock, 10" Length

Brand: Corbin Russwin
PartNumber: CL3351 AZD 605 CL6
Model: CL3351 AZD 605 CL6
Color: Brass/Bright Brass
PackageQuantity: 1
Binding: Misc.
Manufacturer: Corbin Russwin
Label: Corbin Russwin

Attributes

Key	Value
ADA Approved	False
ADA Compliant	YES
ANSI Function	F109
Application	Schools and Universitie.
Backset	2-3/4 Inch
Base Material	Brass
Bolt Protection	1/2"
Bore Size	2.1250
Case Height	10.5"
Case Length	15.5"
Case Volume	2359.875
Case Width	14.5"
Color	Bright Brass
Color Code	605/US3
Cylinder Material	Brass
Cylinder Type	LFIC Less Core-Large Fo.
Cylinder Type Used	Large Format Interchang.
Door Cross Bore	2.125 Inch
Door Thickness	1-3/4" - 2"
Features	Vandal Resistance; Allo.
Finish	Bright Polished Brass
Finish Description	Bright Polished Brass
Finish Family	Polished Brass
Fire Rated	3 Hours {A}
Front Size	2-1/4" x 1-1/8"
Function	51-Entrance
Function Description	Pushing and turning but.
Function Family	Entry/Entrance/Office
Grade	ANSI/BHMA Grade 1
Hand	Not Handed
Handle Type	Lever
Knob/Lever Size	4 Inch
Latch Backset Dim	2-3/4"
Latch Bolt Material	Stainless Steel
Latch Corner	Square
Latch Number	586F17
Latch Throw	1/2 Inch
Latch Type	Deadlocking
Lever Length	4.0000
Lever Length-Inches	4 Inch
Lever Style	AZD-Armstrong
Lever Style Family	Straight Lever
Lever/Knob Design	AZ - Armstrong
Lock Face Size	2-1/4" x 1-1/8"
Manufacturer Parent	Assa Abloy
Package Height	4.5"
Package Length	10"
Package Qty	1
Package Volume	337.5
Package Width	7.5"
Product Projection	2-13/16 Inch
Product Type	Cylindrical Lock
Projection	2.8125
Rose Diameter	3-1/2 Inch
Rose/Escutcheon Design	D - Rose
Rose/Escutcheon Trim	Round Rose
Screws	Combination
Special Marks	Full size/large format .
Standards	ANSI/BHMA A156.2; Meets.
Strike	ANSI, 1-1/4 Inch x 4-7/.
Strike Height	4-7/8"
Strike Lip	1-1/4 Inch
Strike Number	SA114
Strike Size	4-7/8" x 1-1/4" x 1-1/4"
Strike Type	ANSI Curved Lip
Strike Width	1-1/4"
Sub-Series	CL_Cylindrical_Locks_co.
Thickness	1-3/4" - 2"
Trim Material	Solid Cast Zinc (Lever).
Warranty	7 Year Limited

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	thebuilderssupply.com	COR_CL3351AZD605CL6	457.48	1	16777778		Corbin Russwin		457.48 @ 1
	DK Hardware	CL3351 AZD 605 CL6	629.03	1	In Stock		Corbin Russwin		629.03 @ 1
