- mpn2Z308
- brandname: DAYTON
- manufacturername: DAYTON

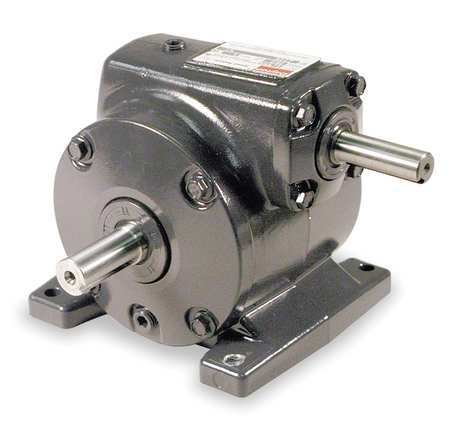

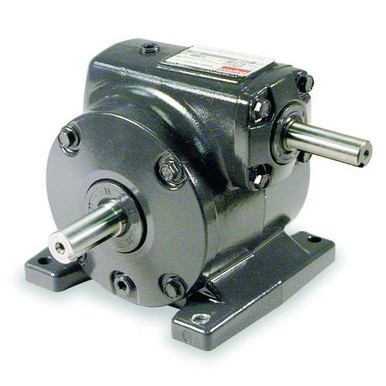

Speed Reducer, Indirect Drive, 26:1
- Brand: Dayton
- PartNumber: 2Z308
- Model: 2Z308
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Bearings | Oversized Ball Roller |
| Brand | Dayton |
| Current Stock | 9 |
| Dimension U | 3/4 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Gear Material | Hardened and Ground Ste. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1725, 1750 rpm, 1750 |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade |
| Max. Input HP | 0.75 hp, 3/4, 0.75 |
| Max. Output Torque | 385 in-lb, 385.00 in.-l. |
| Max. Torque (In.-Lbs.) | 385 |
| Mpn | 2Z308 |
| Nominal Output RPM | 67 RPM, 67 |
| Nominal Ratio | 26:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 3/4 in |
| Output Shaft Diameter | 3/4 in |
| Output Torque @ 1 HP | 385 in-lbs |
| Output Torque @ 1/2 HP | 231 in-lbs |
| Output Torque @ 1/2 HP . | 231 |
| Output Torque @ 1/3 HP | 154 in-lb, 154 in-lbs |
| Output Torque @ 1/3 HP . | 154 |
| Output Torque @ 1/4 HP | 115 in-lb |
| Output Torque @ 1/4 HP . | 115 |
| Output Torque @ 1/40 HP | 3,600 in-lbs |
| Output Torque @ 1/6 HP | 77 in-lbs |
| Output Torque @ 1/6 HP . | 77 |
| Output Torque @ 1/8 HP | 58 in-lbs, 58 in-lb |
| Output Torque @ 1/8 HP . | 58 |
| Output Torque @ 3/4 HP | 385 in-lbs |
| Output Torque @ 3/4 HP . | 385 |
| Overhung Load | 700 lb., 600 lb |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Reducer Model No. | 84258 |
| Rotation | CW/CCW, Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Single Output |
| Shaft Orientation | Right Angle |
| Ship Weight | 13 lbs. |
| Single/Double Output/Un. | Single Output |
| SKU | ZO-G1667041 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | Indirect Drive |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | Indirect Drive |
| UPC | 190735241165 |
| Worm Center Distance | 2.06", 2.00" |
| Worm Gear Material | Bronze |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1667041 | 485.99 | 1 | 19 | | Dayton | 12.7 | 485.99 @ 1 |
 | simsupply.com | ZO-G1667041 | 600.05 | 1 | 9 | | Dayton | | 600.05 @ 1 |
 | sustainablesupply.com | C1674528 | 697.94 | 1 | In Stock | | Dayton | 12.7 | 697.94 @ 1 |
| AmazonTP | B000LDE2AU | 703.9 | 1 | In Stock | 5 | Dayton | | 703.9 @ 1 |
| AmazonSC | B000LDE2AU | 703.9 | 1 | In Stock | | Dayton | | 703.9 @ 1 |
| AmazonUNK | B000LDE2AU | 703.9 | 1 | In Stock | | Dayton | | 703.9 @ 1 |
| grainger.ca | DTN2Z308 | 762.65517062 | 1 | In Stock | | DAYTON | 12.7 | 762.65517062 @ 1 |
 | Raptor Supplies | AC4DUF | 797.9108085 | 1 | In Stock | | DAYTON | | 797.9108085 @ 1 |
| emotorpro.com | 2Z308 | 990.16 | 1 | In Stock | | Dayton | 13.0 | 990.16 @ 1 |
