Dixon Valve & Coupling 2JM3-B

mpn2JM3-B
brandname: Dixon
manufacturername: Dixon

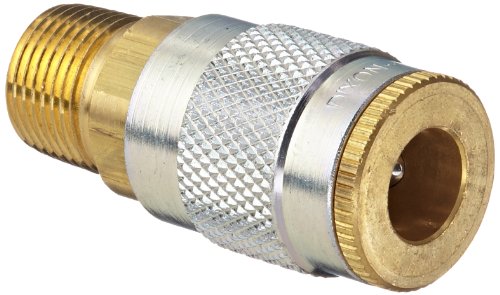

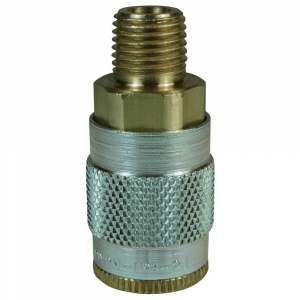

Dixon Valve 2JM3-B Brass Truflate Automotive Interchange Pneumatic Fitting, Socket, 1/4" Coupler x 3/8" - 18 NPTF Male Thread

Dixon Valve 2JM3-B Brass Truflate Automotive Interchange Pneumatic Fitting, Socket, 1/4" Coupler x 3/8" - 18 NPTF Male Thread

zoom

Brand: Dixon Valve & Coupling
PartNumber: 2JM3-B
Model: 2JM3-B
Color: Brass
Size: 1/4" x 3/8"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dixon Valve & Coupling
Label: Dixon Valve & Coupling

Attributes

Key	Value
Body Size	1/4"
Brand	Dixon Valve & Coupling
Brand Name	DIXON?
Connection	Male NPT
Construction	Machined components are.
Data	3/4" Hex Size
Description:	1/4 AUTOMOTIVE COUP, 3/.
Dimensions	0.88 in OD
End Style	Quick Disconnect Couple.
Height (in)	0.88
Hex	3/4"
Hex Size	3/4 in
Interchange	Truflate Automotive Int.
Length	2.08 in, 2.08" (52.8mm).
Length (in)	2.08
Manufacturer	Dixon Valve & Coupling,.
Manufacturer Part Number	2JM3-B
Material	Brass
Max Temp (?F)	250
Maximum OD	0.88" (22.4mm)
MFG Part #:	2JM3-B
Min. Temp (?F)	-40
MPN	2JM3-B
Nominal Size	3/8 in - 18, 3/8-18
Package Quantity	1/Each
Pressure Rating	300 psi, See Product De.
Product	Couplers
Product Type	Simple product
Safety Notes	It is important to be s.
Series	J Series, J-Series Auto.
Specifications	Rated pressure for conn.
Standard Approvals	ROHS Compliant
Supplier:	Dixon Valve & Coupling .
Temperature Range	-40?F to +250?F (-40?C .
Temperature Rating	-40 to 250?F, -40 to 25.
Thread	NPTF
Thread Size	3/8"
Type	Tru-Flate Automotive
WARNING!	This product contains a.
Weight	0.210000
Weight Lb	0.2100

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	andersonprocess.com	2JM3-B	6.76	1	29	26	Dixon Valve & Coupling	0.21	6.76 @ 29
	Megadepot	2JM3-B	6.95	1	29		Dixon Valve	0.21	6.95 @ 29
	usmegastore.com	2JM3-B	6.95	1	29		Dixon Valve	0.21	6.95 @ 29
	heavydutydepot.com	2JM3-B	6.95	15	29		Dixon		6.95 @ 29
	kscdirect.com	DIX 2JM3-B	7.41	1	29		Dixon Valve & Coupling Co		7.41 @ 29
	MRO Supply	2932986	9.84	4	29	14	Dixon	0.21	9.84 @ 29
	hanessupply.com	2JM3-B-10639	12.87	1	29		Dixon Valve & Coupling		12.87 @ 29
	Wilson	2JM3-B	21.25	1	29		Dixon		21.25 @ 29
