Extech EX355-NIST

B01LCJOZNU

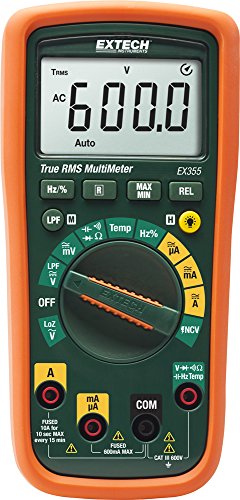

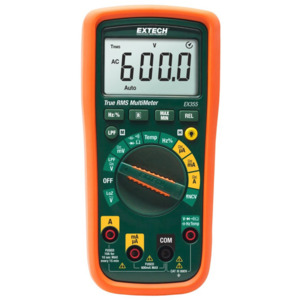

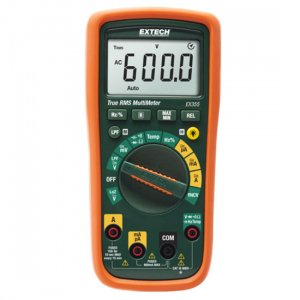

Extech EX355-NIST True RMS Professional MultiMeter with NCV, Temperature and NIST

Extech EX355-NIST True RMS Professional MultiMeter with NCV, Temperature and NISTzoom

Attributes

Key Value
AC Current Measurement .0.1 uA
AC current measuring ac.?(1,2% + 3 digits)
AC current measuring ra.600?A/
AC ResponseTRMS
AC Response CalculationTRMS
AC Voltage600 V
AC Voltage Measurement .0.1 V
AC voltage measuring ac.?(1% + 3 digits)
AC voltage measuring ra.60mV/
Audible ContinuityYes
Auto Power OffYes
Auto RangingYes, No
BacklightYes
Bar GraphNo
Bar Graph IncludedNo
Basic AC Current Accura.+/-1.2%
Basic AC Voltage Accura.+/-1%
Basic DC Accuracy+/-0.5%
Basic DC Current Accura.+/-1%
Basic DC Voltage Accura.+/-0.50%
Basic DCV Accuracy?0.5%
Batteries IncludedYes
Battery ChemistryAlkaline
Battery SizeAA
Battery TypeAA Alkaline
Calibration Certificate.Yes
Capacitance1 pF to 60.00mF, 60 ?F
Capacitance Measurement.+/-0.50%
Capacitance Measurement.1 pF
Capacitance measuring a.?(4% + 5 digits)
Capacitance measuring r.6nF/
Capacitance Range1 pF to 60 mF
Computer Interface Conn.None
ConditionNew
Conform to the normEN61010 600V CAT III
ContinuityAudible
Continuity W/ Diode TestYes
Data HoldYes
Data LoggingNo
DC Current Measurement .0.1 uA
DC current measuring ac.?(1% + 3 digits)
DC current measuring ra.600?A/
DC Voltage600 V
DC Voltage Measurement .0.01 V
DC voltage measuring ac.?(0,5% + 3 digits)
DC voltage measuring ra.60mV/
DC/AC Current0.1 ?A to 10.00A
DC/AC Voltage0.01 mV to 600V
Depth1.9 in
Dimensions6.7x3.2x1.9" (175x81 x4.
Dimensions (W x H x D)86x180x55.6mm
Diode TestYes, 3.2V
DisplayBacklit LCD
Display counts6000
Display TypeBacklit LCD
DustproofNo
Duty Cycle0.1 to 99.9%, Yes
Duty cycle factor0.1...99.9%
Family SeriesExtech Instruments Mult.
FEATURES HOLD_MERCHBacklit LCD Yes Yes
Frequency10,000,000 kHz, 0.001Hz.
Frequency Measurement A.+/-0.50%
Frequency Measurement R.0.001 Hz
Frequency measuring acc.?(0,1% + 5 digits)
Frequency measuring ran.9.999...9.999MHz
Fuse AccessYes
Gross Weight0 lbs
Includes(2) AA Batteries, NIST .
Instrument Counts6000
Instrument Frequency Co.0.001 Hz to 10 MHz
Instrument Safety RatingCAT III 600V
InterfaceNo
Intrinsically SafeNo
ItemDigital Multimeter
Item NumberEX355-NIST
Kind of display usedLCD (6000)
ManufacturerExtech, Extech Instrume.
Manufacturer Part NumberEX355-NIST
Manufacturers Warranty .3 yr
Max Current (AC)10 A
Max Current (DC)10 A
Max Resistance60 MOhm
Max Voltage (AC)600 VAC
Max Voltage (DC)600 VDC
Max. AC Amps10
Max. AC Volts600
Max. DC Amps10
Max. DC Volts600
Max. Ohms60 megohm
Maximum AC Current Meas.10 A
Maximum AC Voltage Meas.600 V
Maximum Capacitance Mea.60 mF
Maximum DC Current Meas.10 A
Maximum DC Voltage Meas.600 V
Maximum Frequency Measu.10 MHz
Maximum Operating Tempe.104 Degrees F
Maximum Resistance Meas.60 megaohm
Maximum Storage Tempera.122 Degrees F
Maximum Temperature Mea.1,832 Degrees F
MeasurementAC current,
MERCH HOLD - DMM Featur.No No No No No No No
MERCH HOLD ACCURACY+/-0.50% +/-1% +/-1% .
Min./Max. MemoryYes
Minimum AC Current Meas.0.1 uA
Minimum AC Voltage Meas.0.01 V
Minimum Capacitance Mea.1 pF
Minimum DC Current Meas.0.1 uA
Minimum DC Voltage Meas.0.01 V
Minimum Frequency Measu.0.001 Hz
Minimum Operating Tempe.14 Degrees F
Minimum Resistance Meas.0.1 ohm
Minimum Storage Tempera.14 Degrees F
Minimum Temperature Mea.-40 Degrees F
Minimum/Maximum MemoryYes
Mirrored ScaleNo
Multimeter FeaturesStandard
Multimeter Features_Fil.EX355-NIST
NCV DetectorYes
Net Weight0 lbs
NIST Certification ByFLIR
NIST Certification By M.FLIR
NIST CertifiedYes
Number of Displayed Dig.4
Overall Height6.7 in
Overall Width3.2 in
Parameters MeasuredAC Current, AC Voltage,.
Peak HoldNo
Pollution degree2
Promotion RestrictionNot eligible for promot.
Related items5790D,
Removable ScreenNo
Resistance0.1? to 60.00M?
Resistance Measurement .+/-1.5%
Resistance Measurement .0.1 ohm
Resistance measuring ac.?(0,8% + 2 digits)
Resistance measuring ra.600?/
Resolution3.75
Safety Rating_BACKGROUNDEX355-NIST CAT III 600V
Safety Rating_SUBHEADCAT III 600V
SeriesEXTECH (R) EX355
Software IncludedNo
Special Features12 Functions, Low Pass .
StandardsCE, cULus
StyleFull Size
Temp. Range-40 to 1832 Degrees F (.
Temperature (Type K)-40 to 1832?F (-40 to 1.
Temperature measurement.?(1% + 3 digits)
Temperature Measurement.+/-1%
Temperature Measurement.1 Degrees F
Temperature measuring r.-40...1000?C
Temperature ReadingsNo
Test3.2V
Thermal ImagerNo
Thermal ImagingNo
True RMSYes
TypeHandheld
Type of meterDigital Multimeter
UPC Code793950393567
WaterproofNo
Weight13.1 oz, 407g, 13.1oz(3.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
globaltestsupply.comEX355-NIST224.991In StockExtech Instruments224.99 @ 1
thumbzoomindustrialstores.comEX355-NIST254.511In StockExtech254.51 @ 1
us.rs-online.com71117988262.51In StockFLIR Commercial Systems, Inc. - Extech Division262.5 @ 1
thumbzoomvaluetronics.comEXTECH_EX355-NIST_NEW262.991In StockExtech262.99 @ 1
thumbzoomZoroG5089557262.991In StockExtech1.45262.99 @ 1
Platt.com1298007262.991In StockExtech262.99 @ 1
Newark80Y2993266.991In StockEXTECH INSTRUMENTS266.99 @ 1
thumbzoomMegadepotEX355-NIST266.991In StockExtech0.81875266.99 @ 1
thumbzoomjensentools.com43416.1266.991In StockExtech266.99 @ 1
thumbzoomusmegastore.comEX355-NIST266.991In StockExtech0.81875266.99 @ 1
TMEEX355-NIST267.491In StockEXTECH0.8954267.49 @ 1
thumbzoomGalcoEX355-NIST-EXTC279.311In StockExtech Instruments279.31 @ 1
