FAIRCHILD (ON SEMICONDUCTOR) FDMS7694

B07BZQLDP1

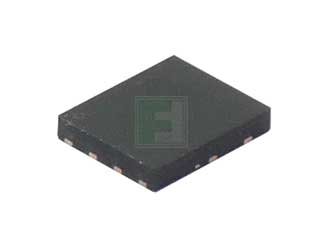

Fairchild (ON SEMICONDUCTOR) FDMS7694 Single N-Channel 30 V 14.5 mOhm 10 nC 2.5 W PowerTrench SMT Mosfet - Power 56-8 - 25 Item(s)

Fairchild (ON SEMICONDUCTOR) FDMS7694 Single N-Channel 30 V 14.5 mOhm 10 nC 2.5 W PowerTrench SMT Mosfet - Power 56-8 - 25 Item(s)zoom

Attributes

Key Value
Base Product NumberFDMS76
CasePQFN8
CategoryDiscrete Semiconductor .
Current - Continuous Dr.13.2A (Ta), 20A (Tc)
Drain current20A
Drain to Source Voltage.30 V
Drain-source voltage30V
Drive Voltage (Max Rds .4.5V, 10V
FET Feature-
FET TypeN-Channel
Gate charge22nC
Gate Charge (Qg) (Max) .22 nC @ 10 V
Gate-source voltage?20V
Input Capacitance (Ciss.1410 pF @ 15 V
Kind of channelenhanced
Kind of packagereel,
Manufactureronsemi
Mfronsemi
MountingSMD
Mounting TypeSurface Mount
On-state resistance13.3m?
Operating Temperature-55?C ~ 150?C (TJ)
PackageTape & Reel (TR)
Package / Case8-PowerTDFN
Polarisationunipolar
Power dissipation27W
Power Dissipation (Max)2.5W (Ta), 27W (Tc)
Product StatusActive
Pulsed drain current50A
Rds On (Max) @ Id, Vgs9.5mOhm @ 13.2A, 10V
SeriesPowerTrench?
Supplier Device Package8-PQFN (5x6)
TechnologyMOSFET (Metal Oxide)
Type of transistorN-MOSFET
Vgs (Max)?20V
Vgs(th) (Max) @ Id3V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics50080010.2730003000ON Semiconductor0.27 @ 3000
Digi-Key24448470.364929513000onsemi0.3649295 @ 3000
Newark92R55590.37130003000ONSEMI0.371 @ 3000
TMEFDMS76940.388913000ONSEMI0.3889 @ 3000
HotendaH18154150.44813000Fairchild Semiconductor0.448 @ 3000
RadwellFDMS76940.5930003000FAIRCHILD SEMICONDUCTOR0.59 @ 3000
