Fulham T1M1UNV105P-60E

mpnT1M1UNV105P-60E
brandname: Fulham
manufacturername: Fulham

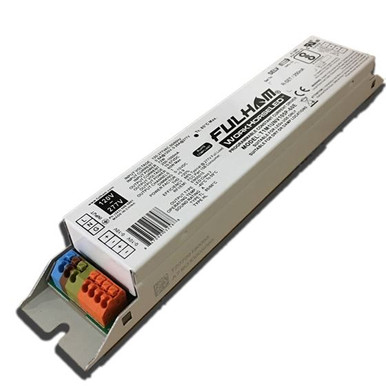

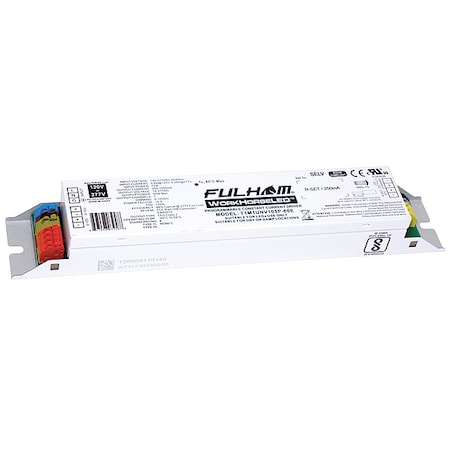

Fulham Lighting 3258 T1M1UNV105P-60E-DST Workhorse Single Channel-0-10V Dimming LED Driver, Universal Voltage Input-Programmable 350-1050mA Constant Current Output-60W Max-Linear Case with End Terminals-IP60

Fulham Lighting 3258 T1M1UNV105P-60E-DST Workhorse Single Channel-0-10V Dimming LED Driver, Universal Voltage Input-Programmable 350-1050mA Constant Current Output-60W Max-Linear Case with End Terminals-IP60

zoom

Brand: Fulham
PartNumber: T1M1UNV105P-60E
Model: T1M1UNV105P-60E-DST
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Fulham Lighting
Label: Fulham Lighting

Attributes

Key	Value
Alternative Keywords	No
Ambient Temp. Range	-40 Degrees to 138 Deg.
Available in Case Of	50
Ballast Dimming	Yes
Brand	Fulham ThoroLED
Brand and Series	WorkHorse
Case Form Factor	Long
Case Size	10
Country of Origin (subj.	India
Dimming	Yes, Analog (0-10V)
Dimming Method	0-10V
Dimming Range	100% to 0%
Dimming Type	Full Continuous Dimming
Driver Class	Class 2
Driver Mounting Location	Universal
Driver Type	Constant-Current-Progra.
Environmental Rating	Damp Location, Dry Loca.
Fixture Type	LED
For Use With	LED Lighting
Frequency	50-60Hz
Height	1 3/16 in
Input Current	0.60AAC/0.26AAC
Input Power	72 W
Input Voltage	120-277V (Universal), 1.
Input Volts	120-277
Intended LED Usage	LED Fixture Array
Item	LED Driver
Length	9 5/16 in
Length (Straight Wirewa.	9 5/16 in
Location Rating	Dry/Damp
Manufacturer Part No.	T1M1UNV105P-60E
Max Output Current	1050mA
Max Output Power	60W
Max Output Voltage	10-57 VDC
Max. Case Temp.	185 Degrees F
Mounting	Universal
Number of Fixtures	1
Ouput Constant	Constant Current
Our Part No.	BS50-T1M1UNV105P-60E
Output Current	250-1050mA, 250 to 1050.
Output Current Programm.	250-1050mA
Output Power	60W
Output Technology	Programmable
Output Voltage	10 to 57V DC
Output Volts (DC)	10-57
Power Factor	Greater Than 0.9
Power Output	60W
Product Type	LED Driver
Profile	Standard Profile
Standards	UL Listed
Total Harmonic Distorti.	Less than 20%
Type	Electronic
UL Class	Class 2
Warranty	Manufacturer's
Wattage	60
Width	1 5/8 in
Width (in)	1.59

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	FULHAM COMPANY B.V. T1M1UNV105P-60E	49.13	2	55		FULHAM COMPANY B.V.		49.13 @ 2
	Zoro	G1236459	54.1	1	In Stock		Fulham	1.08	54.1 @ 1
	topbulb	FHM03258	55.95	1	In Stock		Fulham		55.95 @ 1
	ballastshop.com	BS50-T1M1UNV105P-60E	56.95	1	In Stock		Fulham ThoroLED		56.95 @ 1
	Lighting Supply	T1M1UNV105P-60E	61.85	1	In Stock		Fulham		61.85 @ 1
	Platt.com	0261069	80.39	1	In Stock		Fulham		80.39 @ 1
