Hammond Manufacturing EN4SD20166WGY

B005T8OWRA

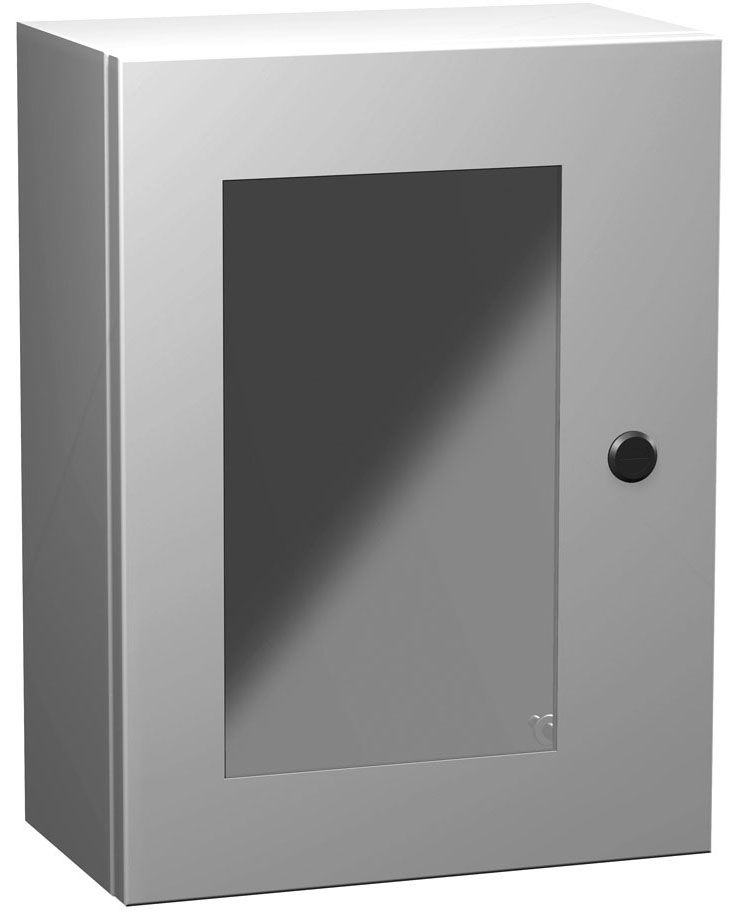

Hammond Manufacturing EN4SD20166WGY Eclipse N4 1 DR. C/W Window

Hammond Manufacturing EN4SD20166WGY Eclipse N4 1 DR. C/W Windowzoom

Attributes

Key Value
Alternate Part No.546-EN4SD20166WGY
ApplicationDesigned to enclose ele.
ApprovalsCE, CSA, UL
Approximate Depth6" (152mm)
Approximate Height20" (508mm)
Approximate Width16" (406mm)
Area (L x W)320in? (2065cm?)
Back Panel NumberEP2016
Base Product NumberEN4SD
BrandHammond Mfg., Hammond M.
Capacity1920 cu-in
Catalog NumberEN4SD20166WGY
CategoryBoxes, Enclosures, Racks
ColorGray, Gray or Light Gray
CompositionMetallic
Container TypeBox
Country of OriginCanada
Cover DesignHinged
Cover TypeHinged
Cubic Capacity1920 Cubic in
Delivery RestrictionsDue to size or weight o.
Depth6 in
Depth (In)6.00
DescriptionBOX STEEL GRAY 20"L X 1.
Description:N4,12 Eclipse Window Do.
DesignHinged Door, Lid
Detailed DescriptionBox Metal, Steel Gray H.
Digi-Key Part NumberEN4SD20166WGY-ND
Dimensions20 x 16 x 8 . ; 508 x 4.
Dimensions (H x W x D)20 x 16 x 6"
Door DesignHinged (Single Door)
Enclosure SeriesEclipse
Estimated Weight22
Family NameEclipse Enclosure Family
Family SeriesHammond Manufacturing E.
FeaturesStainless Steel Hinges,.
FinishANSI 61 Gray, Smooth
Gross Weight22 lbs
Height20 in, 6.000" (152.40mm)
Height (In)20.00
IEC RatingIP66
Inner PanelSold Separately
Item NumberEN4SD20166WGY
Item TypeType 4 Mild Steel Wallm.
Latching MechanismQuarter-Turn Latch
LockQuarter-Turn Latch
Locking FeatureQuarter Turn
Made in USANo
ManufacturerHammond Manufacturing C.
Manufacturer Part No.EN4SD20166WGY
Manufacturer Part NumberEN4SD20166WGY
Manufacturer Product Nu.EN4SD20166WGY
Manufacturer Standard L.4 Weeks
MaterialSteel, 16 ga Mild Steel.
Material Flammability R.-
MFG Part #:EN4SD20166WGY
MfrHammond Manufacturing
MountingFeet, Wall
Mounting TypeWall
Nema Rating3R, 4
NEMA Rating3R, 4, 4, 12, NEMA 3R/4.
NEMA Type3R, 4, and 12
Net Weight22 lbs
Nominal Depth6 "
Nominal Height20 "
Nominal Width16 "
Number of Doors1
Options IncludedGasketed Cover, Ground .
Outside Depth152 mm
Outside Height508 mm
Outside Width406 mm
PackageBox
Panel Height462 mm
Panel IncludedNo
Panel Size18.2 in L x 14.2 in W
Panel Width361 mm
Part NumberEN4SD20166WGY
ProductWall Mount Enclosures
Product CategoryElectrical Enclosures
Product SeriesEN4SD
Product StatusActive
RatingsIP66, NEMA 3R,4,12, UL-.
RoHSYes
SeriesEclipse Series, Eclipse.
Shipping InfoShipped from Digi-Key
Size20 in x 16 in x 6 in
Size / Dimension20.000" L x 16.000" W (.
Special FeaturesFormed 14 or 16 gauge s.
Standardcsa, ul, ce
StandardsUL, CSA, IEC, RoHS
Sub BrandEclipse Series
Supplier:Hammond Manufacturing
Thickness16 Gauge
TypeSingle Door, Wall Mount.
Unit Weight10 kg
UPC062398044558, 623980445.
UPC Code623980445588
UPC:623980445588
VentilationNot Available
Weight22 lbs (10 kg)
Width16 in
Width (In)16.00
Window/Clear CoverYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomCarlton Bates Company62398044558344.131In StockHAMMOND MANUFACTURING344.13 @ 1
AmazonTPB005T8OWRA352.111In Stock5HAMMOND MANUFACTURING CO INC352.11 @ 1
thumbzoomSolutions DirectEN4SD20166WGY394.131In StockHammond Manufacturing394.13 @ 1
thumbzoomDigi-Key2568750398.5812Hammond Manufacturing22.0398.58 @ 1
Hawk ElectronicsEN4SD20166WGY402.81In StockHammond Mfg.402.8 @ 1
thumbzoomWalker IndustrialEN4SD20166WGY403.811In Stock17Hammond Manufacturing403.81 @ 1
Airline HydraulicsEN4SD20166WGY406.7124Hammond Manufacturing406.7 @ 1
thumbzoomNewark27C3522413.7512HAMMOND413.75 @ 1
us.rs-online.com70270427439.621In StockHammond Manufacturing439.62 @ 1
Dale-ElectricEN4SD20166WGY447.41In StockHammond Manufacturing Co., Inc.447.4 @ 1
thumbzoomturtle.comHMC EN4SD20166WGY451.411In StockHammond Manufacturing451.41 @ 1
thumbzoommotorsandcontrol.comEN4SD20166WGY461.51In StockHammond Manufacturing22.0461.5 @ 1
thumbzoomGalcoEN4SD20166WGY-HMND462.11In StockHammond Manufacturing22.0462.1 @ 1
thumbzoomgordonelectricsupply.comEN4SD20166WGY465.01In StockHAMMOND MFG465.0 @ 1
thumbzoomAutomation DirectEN4SD20166WGY469.0136Hammond22.0469.0 @ 1
kscdirect.comHAM EN4SD20166WGY484.531In StockHammond Manufacturing484.53 @ 1
thumbzoomswatee.comEN4SD20166WGY541.48119Hammond541.48 @ 1
thumbzoomcrescentelectric.com878692586.081In StockHammond Mfg.586.08 @ 1
