Hubbell

B000LEZHA8

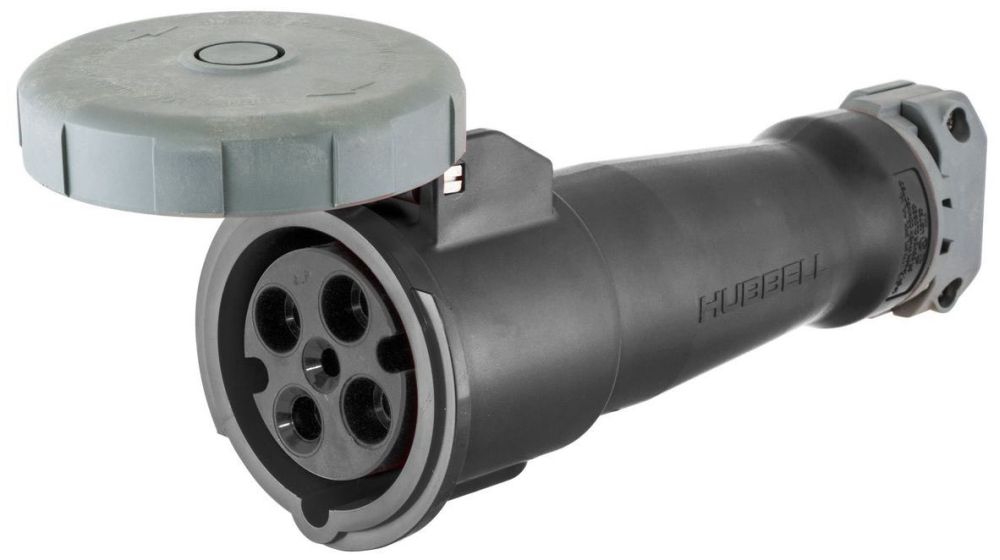

HUBBELL HBL430C5W AC Connector IEC60309 430C5W Female IEC 309 Pin & Sleeve

HUBBELL HBL430C5W AC Connector IEC60309 430C5W Female IEC 309 Pin & Sleevezoom

Attributes

Key Value
Amperage30A
Amperage Rating30A, 30
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Connectio.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
Body MaterialZytel 801 Nylon
Body Material - Pin and.Zytel 801 Nylon
BrandHubbell, Hubbell Wiring.
Built-In Strain ReliefYes
Cap TypeSpring-Loaded Cap
Case MaterialNon-Metallic
Catalog NumberHBL430C5W
ColorBlack, Grey
Color - Plugs and Recep.Black
Color FamilyBlack
Compatible with SeriesHBL Heavy Duty
Conductor Range#12 AWG to #8 AWG
ConnectionPressure Screw Terminal
Connection DescriptionWater Resistant
Connection OrientationStraight
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Current Rating30 A
Current Stock9
Display TypeStandard
ECCNEAR99
Environmental ConditionsWatertight
Face Diameter3.31 in
Family SeriesHubbell Plugs & Recepta.
FeaturesAbuse Resistant, Color .
For Maximum Cable Diame.1.25 in
For Minimum Cable Diame.0.375 in
Gross Weight1.85 lbs
GroundingGrounded
Grounding StyleIEC
GTIN00783585404509
Horsepower Rating20 hp
Housing ColorBlack
Housing ColourBlack
Housing MaterialPBT
Housing Material GradeZytel 801
Housing Material TypeNon-Metallic
HP10 hp
InsulationInsulated Body
International ShippingNo
IP RatingIP67, IP68, IP69K
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL430C5W
Item TypeWatertight Connector Bo.
Lead TimeExpected to ship in 1-2.
Lockout-TagoutNo
Made in USAYes
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL430C5W
MarketIndustrial
MaterialComposite
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
MountingCord
MpnHBL430C5W
NEMA Enclosure Rating4X
Net Weight0 lbs
No. of Poles3
No. of Wires4
Number of Conductors4-Wire Grounding
Number of Poles3
Number of Wires4
Outside Diameter3.74 in
Overall Length8.69 in
Phase3, Three
Phase - Electrical3
Pin & Sleeve StandardsIEC 60309
Power Indicating LightNo
Product SeriesIEC Watertight
Rated Voltage600V AC
Resistance PropertiesCorrosion Resistant, Im.
Reverse ServiceNo
ShroudedYes
SizeStandard
SKUZO-G1705374
Special FeaturesWatertight
StandardCSA Certified File LR28.
StandardsC22.2 No. 182.1, CSA Ce.
StyleStandard Service
Sub BrandPin and Sleeve
SubCategoryElectrical
Switch RatedNo
Temperature Range (F)-40-167 ?F
Temperature RatingMaximum Continuous: 75?.
Terminal TypeScrew
TypeWatertight Connector Bo.
UL 94 Flammability Rati.V-0
UNSPSC39121421
UPC783585404509
Voltage600VAC, 600 V, 3 Phase .
Voltage - Plugs and Rec.600V AC
Voltage Color CodeBlack
Voltage Rating600V AC, 3 Phase 600
Wire Connection TypeScrew Terminals
Wire Size10 AWG, 11 AWG, 12 AWG,.
Wire Size Range12-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL430C5W204.01In StockHubbell204.0 @ 1
thumbzoomZoroG1705374260.01In StockHubbell1.85260.0 @ 1
thumbzoomKelly HayesHBL430C5W285.015Hubbell Wiring Device-Kellems285.0 @ 1
thumbzoomsustainablesupply.comC1192785331.391In StockHubbell1.85331.39 @ 1
thumbzoomMRO Supply1022697340.01In StockHubbell Wiring340.0 @ 1
standardelectricsupply.com2255306364.291In StockHubbell364.29 @ 1
thumbzoomgordonelectricsupply.comHBL430C5W369.751In StockHUBBELL369.75 @ 1
thumbzoomGalcoHBL430C5W-HBBL375.01In StockHubbell1.85375.0 @ 1
us.rs-online.com71992880392.111In StockHubbell Wiring Device-Kellems392.11 @ 1
thumbzoomsimsupply.comZO-G1705374401.2519Hubbell401.25 @ 1
thumbzoomFrench GerlemanHUBHBL430C5W406.41In StockWiring Device-Kellems406.4 @ 1
thumbzoomRadwellHBL430C5W420.012HUBBELL KELLEMS420.0 @ 1
grainger.caHBLHBL430C5W422.034414821In StockHUBBELL WIRING DEVICE-KELLEMS1.85422.03441482 @ 1
steinerelectric.com92402455.641In StockHubbell Wiring Device-Kellems455.64 @ 1
Graybar88126836455.71681In StockHubbell Wiring Device - Kellems455.7168 @ 1
Newark14C5341466.651In StockHUBBELL WIRING DEVICES466.65 @ 1
thumbzoomcrescentelectric.com89870469.271In StockHubbell Wiring Device - Kellems469.27 @ 1
kirbyrisk.com490019517.771In StockHubbell517.77 @ 1
thumbzoomRaptor SuppliesAC8PZX661.12482151In StockHUBBELL WIRING DEVICE-KELLEMS661.1248215 @ 1
