CAI - HUBBELL WIRING DEVICE-KELLEMS HBL430C7W

B07J5V15ZW

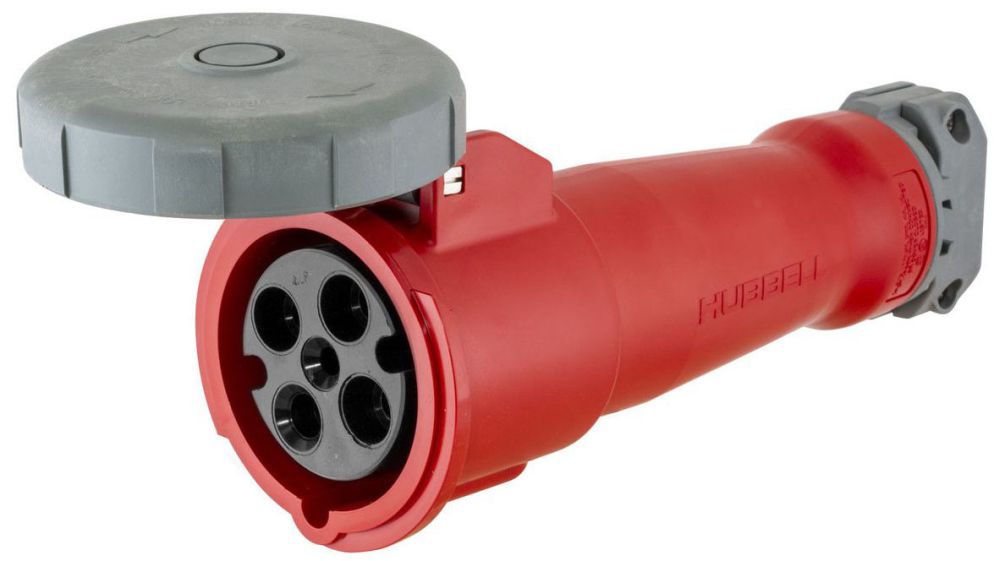

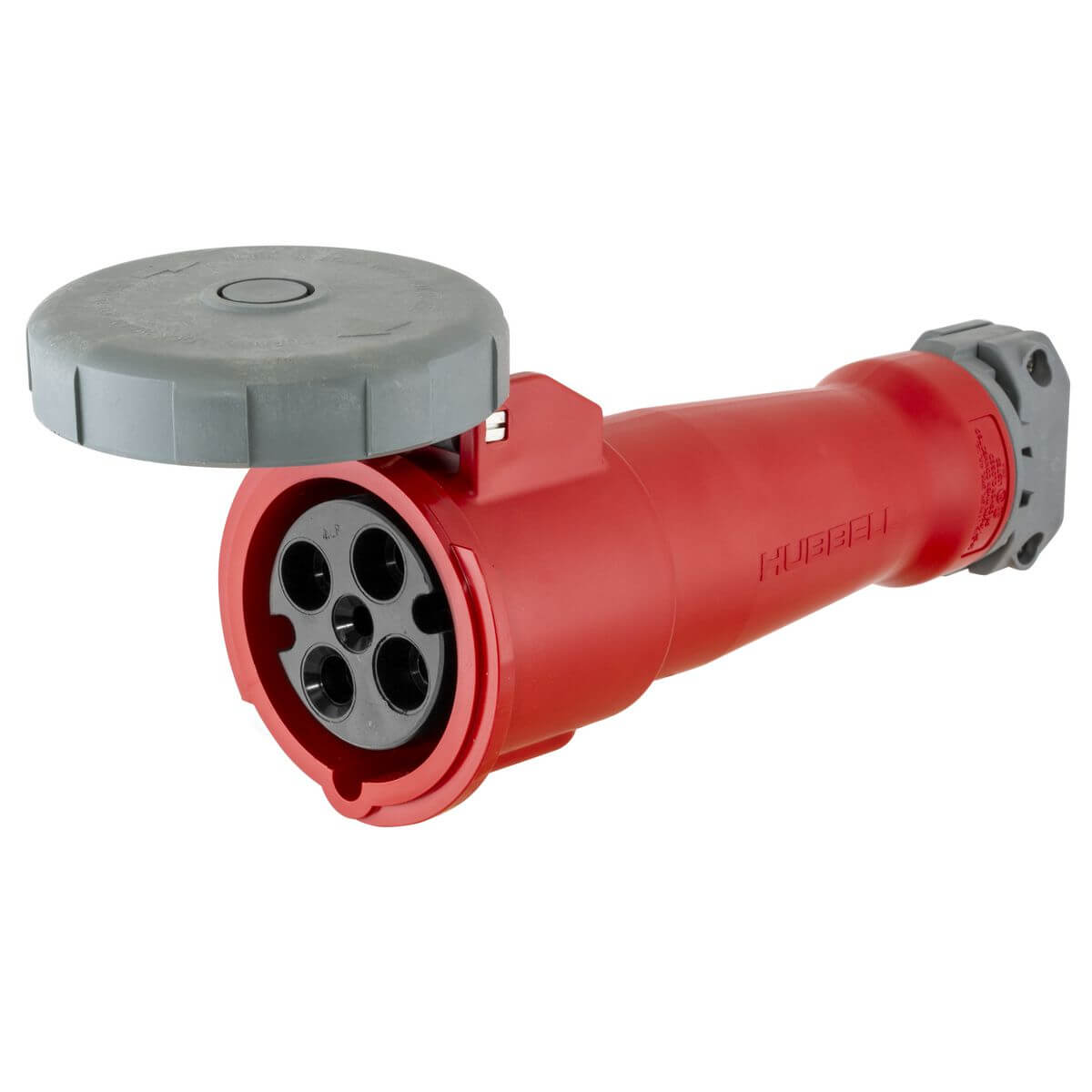

Hubbell Wiring Device-KELLEMS 30 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Connector, Red

Hubbell Wiring Device-KELLEMS 30 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Connector, Redzoom

Attributes

Key Value
Amperage30A
Amperage Rating30A, 30, 30 A
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Connectio.
Base Unit of MeasureEA
Body MaterialZytel 801 Nylon
Body Material - Pin and.Zytel 801 Nylon
BOX SIZE10.745x23.125x10.745 (i.
BrandHubbell, Hubbell Wiring.
Cap TypeSpring-Loaded Cap
Carton - Gross Weight p.20.150 lb.
Carton - Number of Sub .10
Carton - Pack Descripti.Carton
Carton - SCC-14 Next Lo.783585404523
Carton - Total Units10 EA
Catalog NumberHBL430C7W
Class CodeA12
ColorRed
Color - Plugs and Recep.Red
Color FamilyRed
Compatible with SeriesHBL Heavy Duty
Conductor Range#12 AWG to #8 AWG
ConnectionPressure Screw Terminal
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Cross Reference ProductsPS430C7W, 430C7W
Current / Amperage Rati.30 A
Current Rating30 A
Current Stock197
Description - InvoicePS, IEC, CONN, 3P4W, 30.
Display SizeStandard
Display TypeStandard
Each - Pack DescriptionEach
Each - Width4.810 in
ECCNEAR99
Environmental ConditionsWatertight
EU RoHS IndicatorYes
FeaturesAbuse Resistant, Color .
For Maximum Cable Diame.1.25 in
For Minimum Cable Diame.0.375 in
Freight Class Code06168002
GroundingGrounded
Grounding StyleIEC
GTIN00783585404523
Harmonization Code8536694020
Horsepower Rating15 hp
Housing ColorRed
Housing ColourRed
Housing MaterialPBT
Housing Material GradeZytel 801
Housing Material TypeNon-Metallic
HP7 1/2 hp
Image Actual Or Represe.A
Industry Standard(s)CSA Certified File LR28.
InsulationInsulated Body
International ShippingNo
IP RatingIP68, IP69K
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item TypeWatertight Connector Bo.
Lead TimeExpected to ship in 1-2.
Lowest Level UOMEach
Made in USAYes
ManufacturerHubbell Wiring Device-K.
MarketIndustrial
MaterialComposite
Material - Mounting Har.Cord Mounted
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size12 AWG
MountingCord
MpnHBL430C7W
MSDS FlagNo
NEMA Enclosure Rating4X
Nema RatingNon-NEMA
NEMA RatingNon-NEMA
No. of Poles3
No. of Wires4
Number of Conductors4-Wire Grounding
Number Of Conductors4-Wire Grounding
Number of Poles3, 3-Pole
Number Of Poles3-Pole
Number Of Wires4-Wire
Number of Wires4
Outside Diameter3.74 in
Overall Length8.69 in
Pallet - Pack Descripti.Pallet
Pallet - Total Units240 EA
Pallet Height48.000 in
Pallet Length48.000 in
Pallet Weight508.000 lb.
Pallet Width40.000 in
PerformanceElectrical - Current In.
Phase3, Three
Phase - Electrical3
Pin & Sleeve StandardsIEC 60309
Power Indicating LightNo
Rated Voltage480V AC
Replaced Catalog Number430C7W
Resistance PropertiesCorrosion Resistant, Im.
Reverse ServiceNo
SeriesHBL Heavy Duty, HBL Hea.
ShroudedYes
SizeStandard
SKUZO-G2727243
Special FeaturesWatertight
StandardCSA Certified File LR28.
StandardsC22.2 No. 182.1, CSA Ce.
StyleStandard Service
Sub BrandPin and Sleeve
Sub Class CodeA12A180
SubCategoryElectrical
Switch RatedNo
Temperature RatingMaximum Continuous: 75?.
Temperature Rating : Ma.-40? C w/o impact, -25?.
TypeWatertight Connector Bo.
UL 94 Flammability Rati.V-0
UNSPSC39121421
UPC783585404523
UPC Code783585404523
Voltage480VAC, 3 Phase 480V
Voltage - Plugs and Rec.480V AC
Voltage Rating3 Phase 480, 480 V, 480.
Voltage Rating Descript.3 Phase 480 VAC
Width4.810 in
Wire Connection TypeScrew Terminals

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00NGPQ604125.01In Stock2Hubbell125.0 @ 1
Onlinecomponents.comHBL430C7W204.01In StockHubbell204.0 @ 1
thumbzoomrobsindustrial.comHBL430C7W250.471In StockHUBBELL250.47 @ 1
thumbzoomsustainablesupply.comC1207524263.751In StockHubbell1.8263.75 @ 1
thumbzoomKelly HayesHBL430C7W285.0156Hubbell Wiring Device-Kellems285.0 @ 1
thumbzoomZoroG2727243293.821In StockHubbell1.8293.82 @ 1
thumbzoomCarlton Bates Company78358540452300.01In StockHUBBELL300.0 @ 1
thumbzoomMRO Supply1022699340.01In StockHubbell Wiring340.0 @ 1
thumbzoomsimsupply.comZO-G2727243355.11197Hubbell355.1 @ 1
standardelectricsupply.com125293364.291In StockHubbell364.29 @ 1
thumbzoomgordonelectricsupply.comHBL430C7W369.751In StockHUBBELL369.75 @ 1
thumbzoomUnited Electric105835384.2117WIRING DEVICE-KELLEMS384.21 @ 1
cbtcompany.comHBL430C7W398.361In StockHubbell Wiring Device-Kellems398.36 @ 1
thumbzoomRadwellHBL430C7W420.015HUBBELL KELLEMS420.0 @ 1
grainger.caHBLHBL430C7W422.208608261In StockHUBBELL WIRING DEVICE-KELLEMS1.8422.20860826 @ 1
thumbzoomturtle.comHUB HBL430C7W422.211In StockHubbell422.21 @ 1
thumbzoommayerelectric.comHUBHBL430C7W430.831In StockHUBBELL WIRING DEVICES508.0430.83 @ 1
steinerelectric.com26994455.641In StockHubbell Wiring Device-Kellems455.64 @ 1
thumbzoomcrescentelectric.com143110469.2712Hubbell Wiring Device - Kellems469.27 @ 1
thumbzoomNewark52F9742474.31In StockHUBBELL WIRING DEVICES474.3 @ 1
us.rs-online.com70575057478.4912Hubbell Wiring Device-Kellems478.49 @ 1
kirbyrisk.com490020506.1617Hubbell506.16 @ 1
Graybar88126838574.526411Hubbell Wiring Device - Kellems574.5264 @ 1
thumbzoomRaptor SuppliesAE7LJY604.5757381In StockHUBBELL WIRING DEVICE-KELLEMS604.575738 @ 1
