Hubbell Wiring Device-Kellems

mpnHBLS460R6W
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

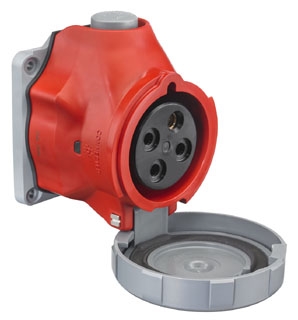

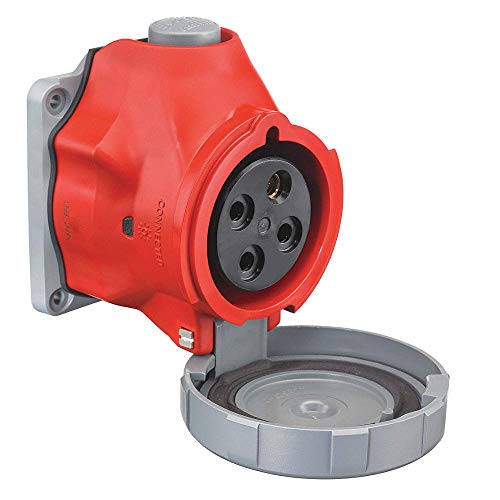

Hubbell Wiring Device-Kellems HBLS460R6W 3-Phase Valox 357 Watertight Pin and Sleeve Receptacle Red 60A 380/415V

Brand: Hubbell Wiring Device-Kellems
Manufacturer: HBLS460R6W
Label: HBLS460R6W

Attributes

Key	Value
Amperage	60/63 A
Amps - Plugs and Recept.	60
Approvals	UL
Aux/Pilot Contacts	None
Body Material - Pin and.	Valox 357
Built-In Strain Relief	Yes
Cap Type	Spring-Loaded Cap
Case Material	Non-Metallic
Color	Red
Color - Plugs and Recep.	Red
Connection Description	Water Resistant
Connection Orientation	Straight
Country of Origin (subj.	United States
Current / amperage rati.	60/63 A
Current Rating	60/63 A, 60 A
Face Diameter	3.88 in
Family Series	Hubbell Plugs & Recepta.
Features	Switch Rated
Flange Type	Flanged
Gross Weight	2.25 lbs
Grounding	Grounded
Grounding Style	IEC
Horsepower Rating	40 hp
Housing Color	Red
Housing Material	Polybutylene Terephthal.
Housing Material Grade	Valox 357
Housing Material Type	Non-Metallic
HP	40 hp
Hub Type Stand-In	Straight
IP Rating	IP69K
Item	Watertight Pin and Slee.
Item - Plugs and Recept.	Watertight Pin and Slee.
Item Number	HBLS460R6W
Lockout-Tagout	No
Manufacturer	Hubbell
Manufacturer Part Number	HBLS460R6W
Market	Industrial
Maximum Operating Tempe.	75 Degrees C
Maximum Wire Size	2 AWG
Minimum Operating Tempe.	-40 Degrees C
Minimum Wire Size	8 AWG
Mounting Box Hub Type	Receptacle Only
NEMA Enclosure Rating	4x
NEMA Rating	4x
Net Weight	0 lbs
Number of Gangs	1
Number of poles	3-Pole
Number of Poles	3
Number of Poles & Wires	3 Pole / 4 Wire
Number of Wires	4
Number of wires	4-Wire
Phase - Electrical	3
Pin & Sleeve Standards	IEC 60309
Power Indicating Light	Yes
Power Indication	Yes
Product Series	Advantage
Resistance Properties	Corrosion Resistant, Im.
Reverse Service	No
Shrouded	Yes
Standards	UL Listed
Style	IP69k NEMA 4X
Switch Rated	Yes
Temperature Range (F)	-40-167 ?F
Terminal Type	Screw
Type	Receptacle
UL 94 Flammability Rati.	V-0
Voltage	415 V, 380-415 VAC
Voltage - Plugs and Rec.	380/415V AC
Voltage Color Code	Red
Voltage Rating	380 to 415V AC
Voltage rating descript.	380-415 VAC
Wire Connection Type	Screw Terminals

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G2117278	652.5	1	In Stock	53	Hubbell	2.7	652.5 @ 1
MRO Supply	5019091	853.33	1	In Stock		Hubbell Wiring		853.33 @ 1
turtle.com	HUB HBLS460R6W	923.43	1	In Stock		Hubbell		923.43 @ 1
gordonelectricsupply.com	HBLS460R6W	928.0	1	In Stock		HUBBELL		928.0 @ 1
Galco	HBLS460R6W-HBBL	941.18	1	In Stock		Hubbell	2.25	941.18 @ 1
Newark	93Y5771	1094.4	1	In Stock		HUBBELL WIRING DEVICES		1094.4 @ 1
steinerelectric.com	PDW~12194225	1572.0	1	In Stock		Hubbell Wiring Device-Kellems		1572.0 @ 1
