Hubbell Wiring Device-Kellems

mpnHBLS460R9W
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

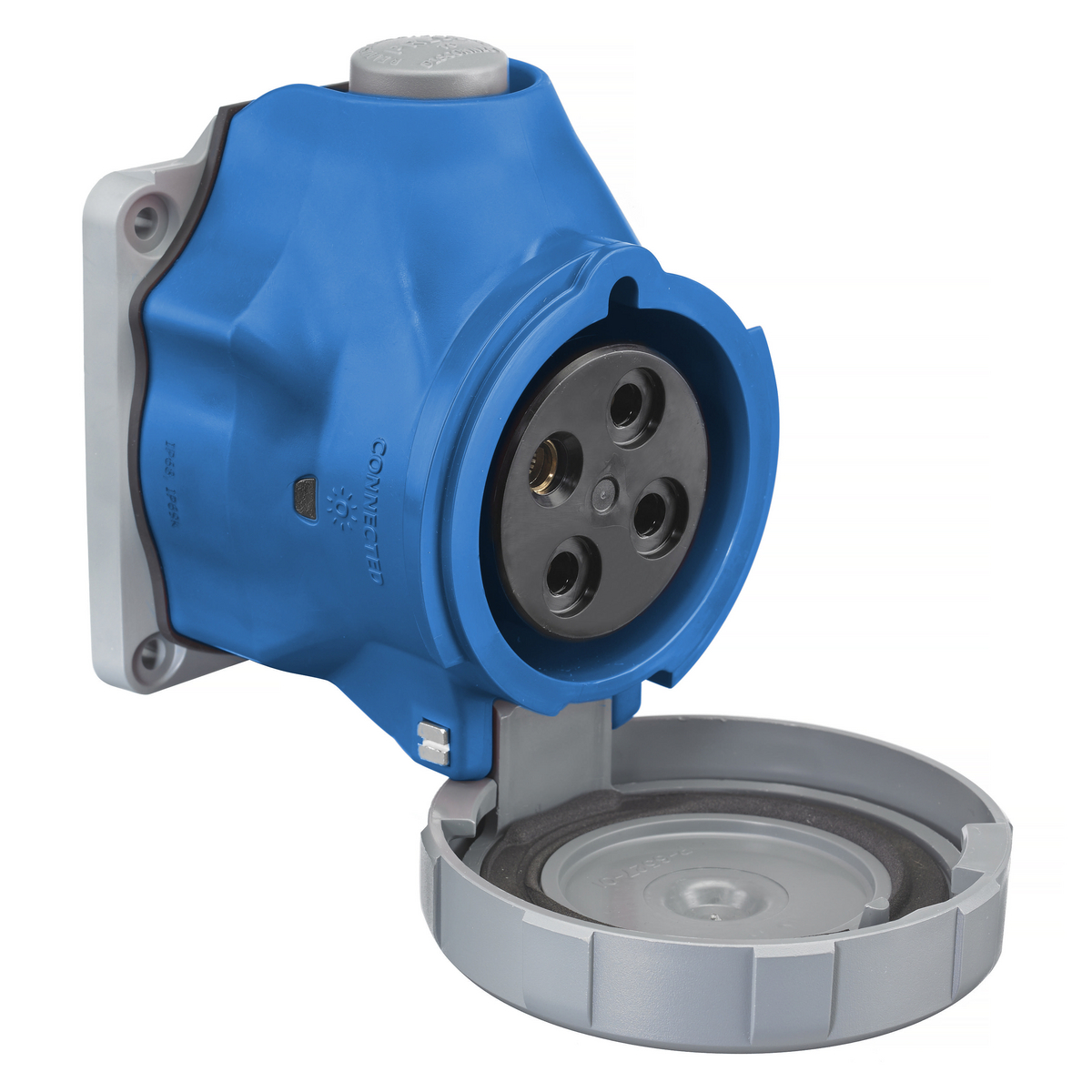

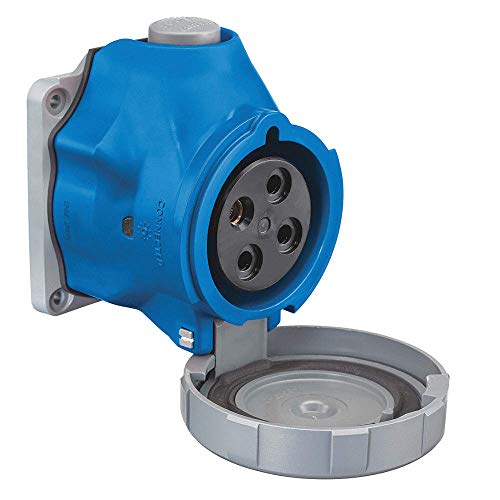

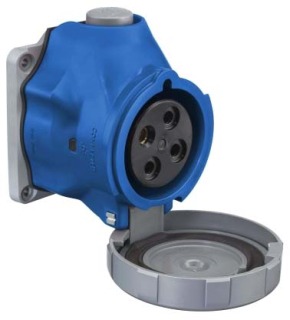

Hubbell Wiring Device-Kellems HBLS460R9W 3-Phase Valox 357 Watertight Pin and Sleeve Receptacle Blue 60A 240V

Hubbell Wiring Device-Kellems HBLS460R9W 3-Phase Valox 357 Watertight Pin and Sleeve Receptacle Blue 60A 240V

zoom

Brand: Hubbell Wiring Device-Kellems
Manufacturer: HBLS460R9W
Label: HBLS460R9W

Attributes

Key	Value
Amperage	60/63 A
Amperage Rating	60/63A
Amps	60/63 A
Amps - Plugs and Recept.	60
Approvals	UL
Aux/Pilot Contacts	None
Body Material - Pin and.	Valox 357
Built-In Strain Relief	Yes
Case Material	Non-Metallic
Color	Blue
Color - Plugs and Recep.	Blue
Color Family	Blue
Connection Description	Water Resistant
Country of Origin	US - United States
Current / amperage rati.	60/63 A
Current Rating	60 A
Dimensions	4.52 in L x 5.09 in W
ECCN	EAR99
Enclosure	IP69K
Face Diameter	3.88 in
Family Series	Hubbell Plugs & Recepta.
Features	Approved as a Disconnec.
Gross Weight	2.7 lbs
Grounding Style	IEC
Horsepower	10
HP	10 hp
IP Rating	IP69K
Item	Watertight Pin and Slee.
Item - Plugs and Recept.	Watertight Pin and Slee.
Item Number	HBLS460R9W
Lockout-Tagout	No
Manufacturer	Hubbell
Manufacturer Part Number	HBLS460R9W
Material	PBT
Maximum Wire Size	2 AWG
Minimum Wire Size	8 AWG
NEMA Rating	NEMA 4X, 4x
Net Weight	0 lbs
No. of Poles	3
No. of Wires	4
Number of poles	3-Pole
Number of Poles	3
Number of wires	4-Wire
Number of Wires	4
Phase	Three
Phase - Electrical	3
Power Indication	Yes
Product Series	Advantage
Rated Voltage	250V AC
Standards	CSA Certified LR280C, F.
Style	IP69k NEMA 4X
Switch Rated	Yes
Temperature Range (F)	-40-167 ?F
Temperature Rating (Deg.	-40 to 75
Terminal Type	Screw
Type	Receptacle, Grounding S.
UNSPSC	39121406
Voltage	250V AC, 3 Phase 250 VA.
Voltage - Plugs and Rec.	240V AC
Voltage Color Code	Blue
Voltage Rating	250/125
Voltage rating descript.	3 Phase 250 VAC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0977282	652.5	1	In Stock		Hubbell	2.7	652.5 @ 1
	MRO Supply	5019095	853.33	1	In Stock		Hubbell Wiring		853.33 @ 1
	Graybar	25824010	879.2672	1	1		Hubbell Wiring Device - Kellems		879.2672 @ 1
	standardelectricsupply.com	2359613	914.29	1	In Stock		Hubbell		914.29 @ 1
	turtle.com	HUB HBLS460R9W	923.43	1	In Stock		Hubbell		923.43 @ 1
	gordonelectricsupply.com	HBLS460R9W	928.0	1	In Stock		HUBBELL		928.0 @ 1
	Galco	HBLS460R9W-HBBL	941.18	1	In Stock		Hubbell	2.7	941.18 @ 1
	cbtcompany.com	HBLS460R9W	999.81	1	In Stock		Hubbell Wiring Device-Kellems		999.81 @ 1
	steinerelectric.com	966180	1019.55	1	In Stock		Hubbell Wiring Device-Kellems		1019.55 @ 1
	Newark	93Y5775	1094.4	1	In Stock		HUBBELL WIRING DEVICES		1094.4 @ 1
