Molex / Waldom 15-24-9164

B00GQQAK02

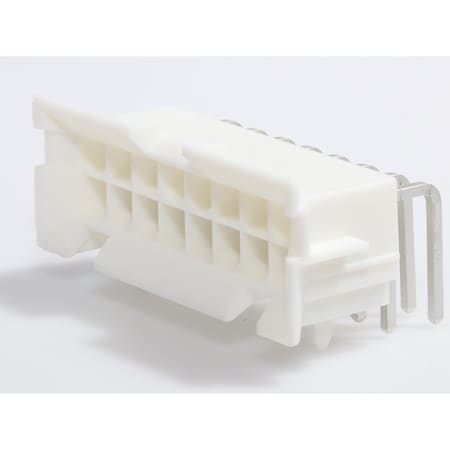

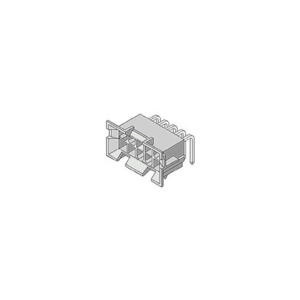

Molex / Waldom 15-24-9164 Connector Power

Molex / Waldom 15-24-9164 Connector Powerzoom

Attributes

Key Value
Alternate Part No.538-15-24-9164
ApplicationsGeneral Purpose, Indust.
Base Product Number001524
BrandMolex
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post0.130" (3.30mm)
Contact MaterialBrass
Contact PlatingTin
Contact Plating Thickne.2.54 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating13 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 16POS 4.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number23-0015249164-ND
Fastening TypeLatch Holder
FeaturesBlind Mating, Board Lock
Flammability RatingUL 94V-0
Hole Center to Center4.2 mm
Housing MaterialNylon
Ingress Protection-
Insulation ColorNatural
Insulation Height0.591" (15.00mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerMolex
Manufacturer Part No.15-24-9164
Manufacturer Product Nu.0015249164
Manufacturer Standard L.23 Weeks
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-0
Max. Temp.240?C
Max. Voltage600V
MfrMolex
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Contacts16
Number of Positions16
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageTray
Package Quantity1
PackagingTray
Part # Aliases0015249164 A-42404-16B1
Pitch4.2 mm
Pitch - Mating0.165" (4.20mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeader Assemblies
Row Spacing5.5 mm
Row Spacing - Mating0.165" (4.20mm)
SeriesMini-Fit BMI 42404, 424.
ShroudingShrouded - 4 Wall
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
Termination StyleThrough Hole
TradenameMini-Fit BMI
TypePin Header
Voltage Rating-, 600 V
